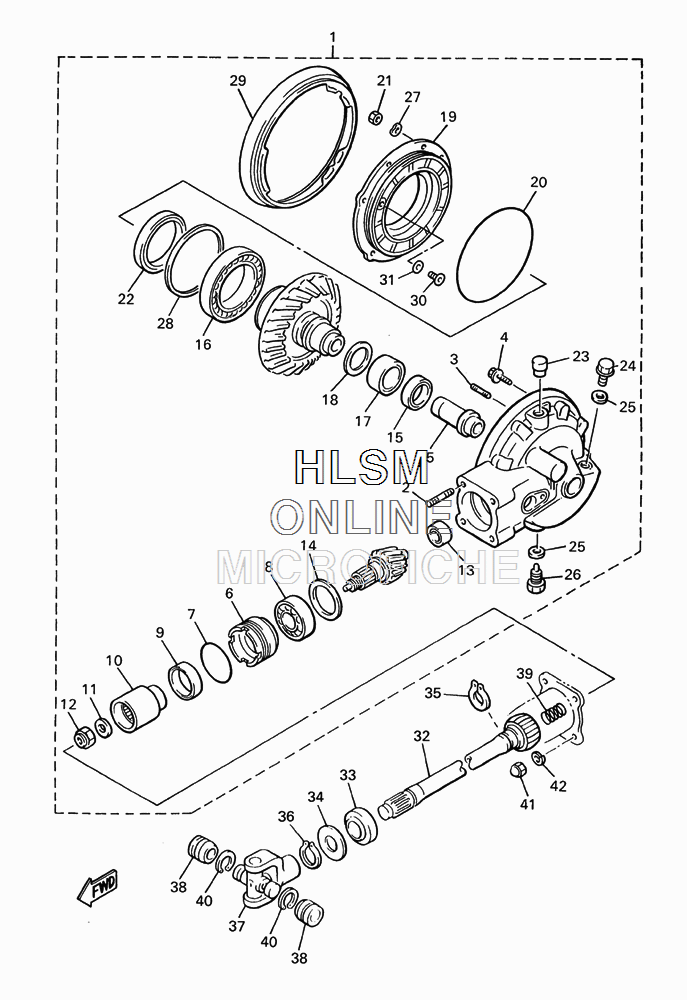

DRIVE SHAFT для Yamaha ROYAL STAR TOUR DELUXE S - 2010 года выпуска
-
№АртикулНазвание
-
14XY-46101-00-00 REAR AXLE GEAR CASE ASSYREAR AXLE GEAR CASE ASSY
-
290116-10593-00 BOLT, STUDBOLT, STUD
-
390116-08427-00 BOLT, STUD 3BOLT, STUD 3
-
495817-10050-00 BOLT, FLANGEBOLT, FLANGE
-
54YE-46153-00-00 COLLAR, GUIDECOLLAR, GUIDE
-
64H7-46125-00-00 RETAINER, BEARINGRETAINER, BEARING
-
793210-60426-00 O-RINGO-RING
-
893306-30533-00 BEARINGBEARING
-
993101-38098-00 OIL SEALOIL SEAL
-
104H7-46123-01-00 COUPLING, GEARCOUPLING, GEAR
-
1190201-166R5-00 WASHER, PLATEWASHER, PLATE
-
1290179-16661-00 NUTNUT
-
132H7-46102-00-00 BEARING ASSYBEARING ASSY
-
141J7-17537-Y0-50 SHIM, THRUST (0.50T)SHIM, THRUST (0.50T)
-
141J7-17537-Y0-40 SHIM, THRUST (0.40T)SHIM, THRUST (0.40T)
-
141J7-17537-Y0-30 SHIM, THRUST (0.30T)SHIM, THRUST (0.30T)
-
1593101-30084-00 OIL SEALOIL SEAL
-
1693316-01403-00 BEARINGBEARING
-
1793311-43729-00 BEARINGBEARING
-
1822U-46118-00-20 SHIM, THRUST (2.0T)SHIM, THRUST (2.0T)
-
1822U-46118-00-18 SHIM, THRUST (1.8T)SHIM, THRUST (1.8T)
-
1822U-46118-00-16 SHIM, THRUST (1.6T)SHIM, THRUST (1.6T)
-
1822U-46118-00-14 SHIM, THRUST (1.4T)SHIM, THRUST (1.4T)
-
1822U-46118-00-12 SHIM, THRUST (1.2T)SHIM, THRUST (1.2T)
-
191FK-46152-01-00 HOUSING, BEARINGHOUSING, BEARING
-
2093211-54698-00 O-RINGO-RING
-
2195317-08600-00 NUTNUT
-
2293102-70167-00 OIL SEALOIL SEAL
-
2356W-17590-00-00 BREATHER COMP.BREATHER COMP.
-
2490340-14132-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
25214-11198-01-00 GASKETGASKET
-
2690340-14135-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
2792907-08700-00 WASHERWASHER
-
281J7-46117-Y0-25 SHIM, RING GEAR (0.25T)SHIM, RING GEAR (0.25T)
-
281J7-46117-Y0-30 SHIM, RING GEAR (0.30T)SHIM, RING GEAR (0.30T)
-
281J7-46117-Y0-40 SHIM, RING GEAR (0.40T)SHIM, RING GEAR (0.40T)
-
281J7-46117-Y0-50 SHIM, RING GEAR (0.50T)SHIM, RING GEAR (0.50T)
-
291FK-46154-00-00 COVER, HOUSINGCOVER, HOUSING
-
301FK-46156-00-00 STOPPER, RING GEARSTOPPER, RING GEAR
-
311FK-46157-00-15 SHIM, STOPPER (T=0.15)SHIM, STOPPER (T=0.15)
-
311FK-46157-00-20 SHIM, STOPPER (T=0.20)SHIM, STOPPER (T=0.20)
-
324XY-46172-00-00 SHAFT, DRIVESHAFT, DRIVE
-
3393108-43013-00 OIL SEALOIL SEAL
-
3490201-231A2-00 WASHER, PLATEWASHER, PLATE
-
3593410-23056-00 CIRCLIPCIRCLIP
-
3693410-22039-00 CIRCLIPCIRCLIP
-
374X7-46180-00-00 CROSS JOINT COMP.CROSS JOINT COMP.
-
3893311-21044-00 BEARINGBEARING
-
3990501-16491-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
4093440-20088-00 CIRCLIPCIRCLIP
-
4190176-10075-00 NUT, CROWNNUT, CROWN
-
4292903-10100-00 WASHER, SPRINGWASHER, SPRING
