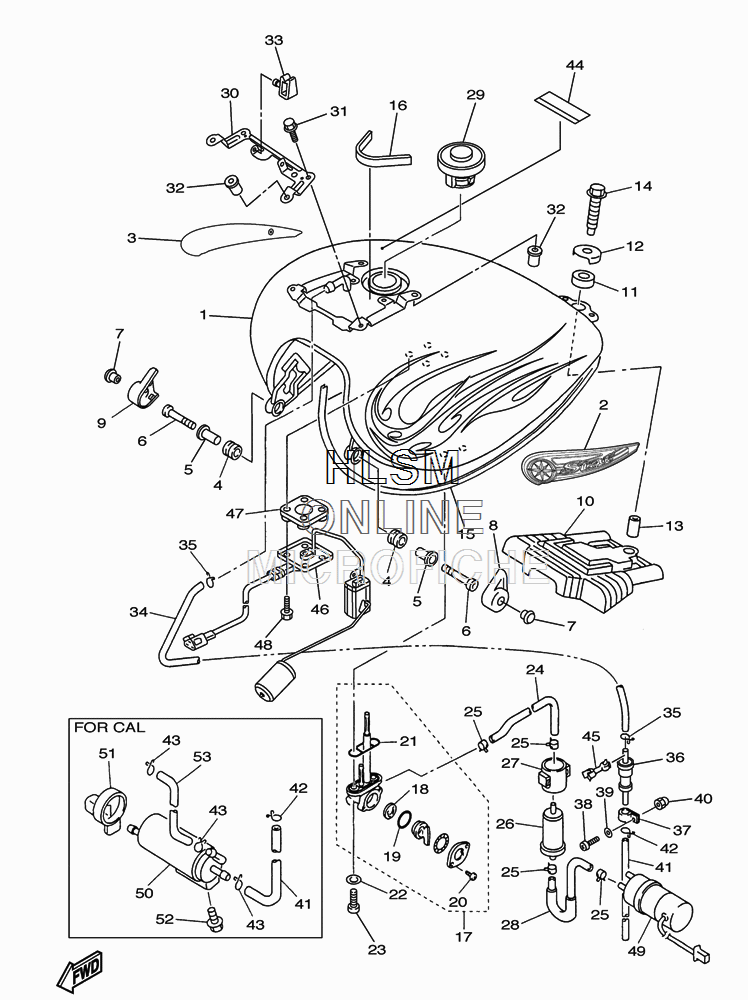

FUEL TANK для Yamaha ROYAL STAR TOUR DELUXE S - 2010 года выпуска
-
№АртикулНазвание
-
11D6-Y2410-10-X1 FUEL TANK COMP. (DPBMX)FUEL TANK COMP. (DPBMX)
-
21D6-2416B-40-00 EMBLEMEMBLEM
-
31D6-2417B-40-00 EMBLEMEMBLEM
-
490480-18354-00 GROMMETGROMMET
-
590387-06091-00 COLLARCOLLAR
-
691317-06035-00 BOLTBOLT
-
72H9-23469-00-00 CAP, BOLTCAP, BOLT
-
81D6-24129-00-00 COVER, SIDE 1COVER, SIDE 1
-
91D6-24139-00-00 COVER, SIDE 2COVER, SIDE 2
-
104XY-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
114XY-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
1242X-24186-00-00 WASHER, SPECIALWASHER, SPECIAL
-
1390387-0813V-00 COLLARCOLLAR
-
1490109-08002-00 BOLTBOLT
-
151D6-24188-00-00 MOLD, FUEL TANKMOLD, FUEL TANK
-
161D6-2414G-00-00 SEALSEAL
-
174WM-24500-02-00 FUEL COCK ASSY 1FUEL COCK ASSY 1
-
183AC-24523-00-00 VALVE PACKINGVALVE PACKING
-
193AJ-24534-01-00 SEAL, COCKSEAL, COCK
-
2097801-03008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
214X8-24512-00-00 O-RINGO-RING
-
2290202-05193-00 WASHER, PLATEWASHER, PLATE
-
2390149-06011-00 SCREWSCREW
-
244XY-24311-10-00 PIPE, FUEL 1PIPE, FUEL 1
-
2590467-12053-00 CLIPCLIP
-
261FK-24560-10-00 FILTER ASSYFILTER ASSY
-
271FK-24566-00-00 BRACKET, FILTERBRACKET, FILTER
-
284NK-24312-10-00 PIPE 2PIPE 2
-
294NK-24602-12-00 CAP ASSYCAP ASSY
-
301D6-24157-00-00 STAY, FUEL TANK 1STAY, FUEL TANK 1
-
3195027-06010-00 BOLT, FLANGEBOLT, FLANGE
-
3290179-05523-00 NUTNUT
-
3390464-06005-00 CLAMPCLAMP
-
341D6-24321-10-00 PIPE 10PIPE 10
-
3590467-09002-00 CLIPCLIP
-
365PX-24180-00-00 ROLL OVER VALVE ASSYROLL OVER VALVE ASSY
-
3790461-15100-00 CLAMPCLAMP
-
3898507-05012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
3992907-05600-00 WASHER, PLATEWASHER, PLATE
-
4090176-05054-00 NUT, CROWNNUT, CROWN
-
4190445-11053-00 HOSE (L400)HOSE (L400)
-
4290467-10041-00 CLIPCLIP
-
4390467-10041-00 CLIPCLIP
-
445GK-2118K-00-00 LABEL, CAUTIONLABEL, CAUTION
-
4590464-13103-00 CLAMPCLAMP
-
461D6-85752-00-00 SENDER UNIT ASSY, FUEL METERSENDER UNIT ASSY, FUEL METER
-
475G3-85753-00-00 GASKET, SENDER UNITGASKET, SENDER UNIT
-
4890119-05071-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
491D6-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
504XY-24170-00-00 CANISTER ASSY (CALIF ONLY)CANISTER ASSY (CALIF ONLY)
-
512JU-2419E-00-00 COVER, CANISTER (CALIF ONLY)COVER, CANISTER (CALIF ONLY)
-
5295807-06010-00 BOLT, FLANGE (CALIF ONLY)BOLT, FLANGE (CALIF ONLY)
-
5390445-11054-00 HOSE (L560) (CALIF ONLY)HOSE (L560) (CALIF ONLY)
