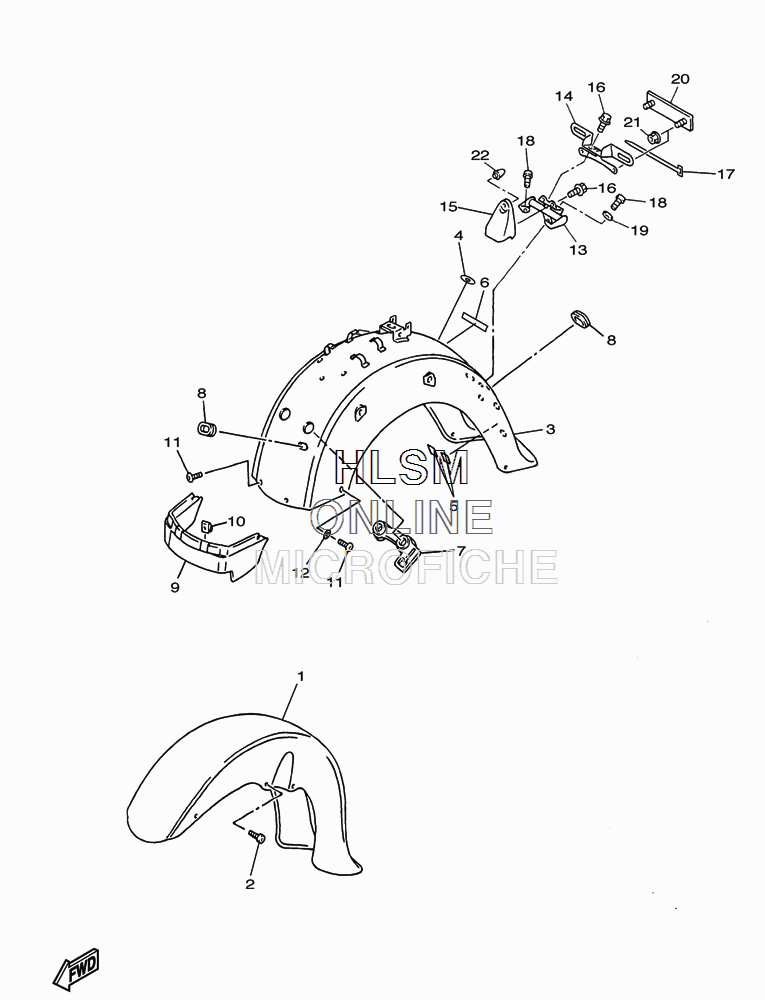

FENDER - FRONT / REAR для Yamaha ROYAL STAR TOUR DELUXE S - 2010 года выпуска
-
№АртикулНазвание
-
14NK-YK215-00-P3 FRONT FENDER COMP. (DPBMX)FRONT FENDER COMP. (DPBMX)
-
291314-08025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
35EJ-21610-00-P5 REAR FENDER COMP. (DPBMX)REAR FENDER COMP. (DPBMX)
-
44NK-21735-00-00 SEAL 2SEAL 2
-
53MA-27491-00-00 PROTECTORPROTECTOR
-
61D6-2153E-00-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
74NK-21649-00-00 DAMPERDAMPER
-
890480-15061-00 GROMMETGROMMET
-
94NK-21621-00-P1 FLAPFLAP
-
1090183-06053-00 NUT, SPRINGNUT, SPRING
-
1190110-06200-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1290202-06170-00 WASHER, PLATEWASHER, PLATE
-
134XY-2317W-00-00 STAY, 9STAY, 9
-
145BN-84751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
151D6-84703-00-00 BRACKETBRACKET
-
1695027-06010-00 BOLT, FLANGEBOLT, FLANGE
-
1790464-25002-00 CLAMPCLAMP
-
1895024-06012-00 BOLT, FLG.(SMALL HEAD)BOLT, FLG.(SMALL HEAD)
-
1990201-06043-00 WASHER, PLATEWASHER, PLATE
-
201FK-85130-00-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
2195707-05500-00 NUT, FLANGENUT, FLANGE
-
2242U-21639-00-00 DAMPER 2DAMPER 2
