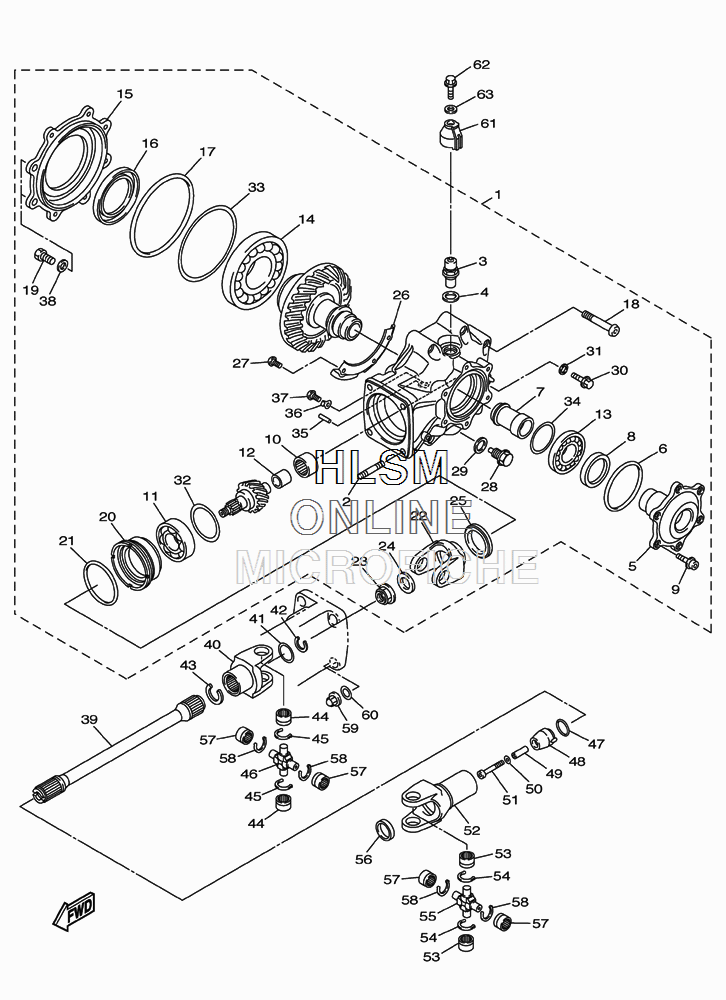

DRIVE SHAFT для Yamaha V-MAX - 2010 года выпуска
-
№АртикулНазвание
-
12S3-46101-00-00 REAR AXLE GEAR CASE ASSYREAR AXLE GEAR CASE ASSY
-
290116-10010-00 BOLT, STUDBOLT, STUD
-
32S3-17509-00-00 BREATHER ASSYBREATHER ASSY
-
490430-22123-00 GASKETGASKET
-
52S3-46296-10-00 PLATEPLATE
-
693210-92448-00 O-RINGO-RING
-
72S3-46153-00-00 COLLAR, GUIDECOLLAR, GUIDE
-
893102-48014-00 OIL SEALOIL SEAL
-
990110-06333-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1093311-62592-00 BEARINGBEARING
-
1193306-20724-00 BEARINGBEARING
-
122S3-46122-00-00 RACE, INNERRACE, INNER
-
1393316-01003-00 BEARINGBEARING
-
1493316-01901-00 BEARINGBEARING
-
152S3-46152-00-00 HOUSING, BEARINGHOUSING, BEARING
-
1693102-80008-00 OIL SEALOIL SEAL
-
1793211-594A4-00 O-RINGO-RING
-
1892014-08060-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1990101-12037-00 BOLTBOLT
-
202S3-46125-00-00 RETAINER, BEARINGRETAINER, BEARING
-
2193210-86003-00 O-RINGO-RING
-
222S3-17556-01-00 YOKE, JOINTYOKE, JOINT
-
2390179-20015-00 NUTNUT
-
2490208-22004-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
2593102-45014-00 OIL SEALOIL SEAL
-
262S3-46114-00-00 PLATE, COVERPLATE, COVER
-
2790149-06018-00 SCREWSCREW
-
2890340-14004-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
29214-11198-01-00 GASKETGASKET
-
3095024-06014-00 BOLT, FLG.(SMALL HEAD)BOLT, FLG.(SMALL HEAD)
-
3190430-06166-00 GASKETGASKET
-
322S3-46119-00-00 SHIM, THRUST (T0.15)SHIM, THRUST (T0.15)
-
322S3-46119-10-00 SHIM, THRUST (T0.3)SHIM, THRUST (T0.3)
-
322S3-46119-20-00 SHIM, THRUST (T0.4)SHIM, THRUST (T0.4)
-
322S3-46119-30-00 SHIM, THRUST (T0.45)SHIM, THRUST (T0.45)
-
322S3-46119-40-00 SHIM, THRUST (T0.5)SHIM, THRUST (T0.5)
-
322S3-46119-50-00 SHIM, THRUST (T0.6)SHIM, THRUST (T0.6)
-
322S3-46119-60-00 SHIM, THRUST (T0.2)SHIM, THRUST (T0.2)
-
322S3-46119-70-00 SHIM, THRUST (T0.25)SHIM, THRUST (T0.25)
-
332S3-46117-00-00 SHIM, RING GEAR (T0.1)SHIM, RING GEAR (T0.1)
-
332S3-46117-10-00 SHIM, RING GEAR (T0.15)SHIM, RING GEAR (T0.15)
-
332S3-46117-20-00 SHIM, RING GEAR (T0.2)SHIM, RING GEAR (T0.2)
-
332S3-46117-30-00 SHIM, RING GEAR (T0.25)SHIM, RING GEAR (T0.25)
-
332S3-46117-40-00 SHIM, RING GEAR (T0.3)SHIM, RING GEAR (T0.3)
-
332S3-46117-50-00 SHIM, RING GEAR (T0.35)SHIM, RING GEAR (T0.35)
-
332S3-46117-60-00 SHIM, RING GEAR (T0.4)SHIM, RING GEAR (T0.4)
-
332S3-46117-70-00 SHIM, RING GEAR (T0.45)SHIM, RING GEAR (T0.45)
-
332S3-46117-80-00 SHIM, RING GEAR (T0.5)SHIM, RING GEAR (T0.5)
-
342S3-46118-00-00 WASHER, THRUST (T1.2)WASHER, THRUST (T1.2)
-
342S3-46118-10-00 WASHER, THRUST (T1.3)WASHER, THRUST (T1.3)
-
342S3-46118-20-00 WASHER, THRUST (T1.4)WASHER, THRUST (T1.4)
-
342S3-46118-30-00 WASHER, THRUST (T1.5)WASHER, THRUST (T1.5)
-
342S3-46118-40-00 WASHER, THRUST (T1.6)WASHER, THRUST (T1.6)
-
342S3-46118-50-00 WASHER, THRUST (T1.7)WASHER, THRUST (T1.7)
-
342S3-46118-60-00 WASHER, THRUST (T1.8)WASHER, THRUST (T1.8)
-
342S3-46118-70-00 WASHER, THRUST (T1.9)WASHER, THRUST (T1.9)
-
342S3-46118-80-00 WASHER, THRUST (T2.0)WASHER, THRUST (T2.0)
-
342S3-46118-90-00 WASHER, THRUST (T2.1)WASHER, THRUST (T2.1)
-
3593605-23164-00 PIN, DOWELPIN, DOWEL
-
362S3-46862-00-00 HOLDERHOLDER
-
3790149-06018-00 SCREWSCREW
-
3890201-12033-00 WASHER, PLATEWASHER, PLATE
-
392S3-46172-00-00 SHAFT, DRIVESHAFT, DRIVE
-
402S3-17556-01-00 YOKE, JOINTYOKE, JOINT
-
4190201-29M01-00 WASHER, PLATEWASHER, PLATE
-
4299009-28400-00 CIRCLIPCIRCLIP
-
4393440-32194-00 CIRCLIPCIRCLIP
-
4493399-99965-00 BEARINGBEARING
-
4593440-23197-00 CIRCLIPCIRCLIP
-
461YW-46187-10-00 SPIDERSPIDER
-
4793210-28763-00 O-RINGO-RING
-
482S3-46231-00-00 CAPCAP
-
4990387-06235-00 COLLARCOLLAR
-
5092902-06200-00 WASHERWASHER
-
5190110-06316-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
522S3-46186-00-00 YOKE, JOINTYOKE, JOINT
-
5393399-99965-00 BEARINGBEARING
-
5493440-23197-00 CIRCLIPCIRCLIP
-
551YW-46187-10-00 SPIDERSPIDER
-
5690331-37001-00 PLUGPLUG
-
5793399-99965-00 BEARINGBEARING
-
5893440-23197-00 CIRCLIPCIRCLIP
-
5990176-10075-00 NUT, CROWNNUT, CROWN
-
6092990-10600-00 WASHER, PLATEWASHER, PLATE
-
612S3-4613F-00-00 COVER 1COVER 1
-
6295024-06020-00 BOLT, FLG.(SMALL HEAD)BOLT, FLG.(SMALL HEAD)
-
6390430-06014-00 GASKETGASKET
