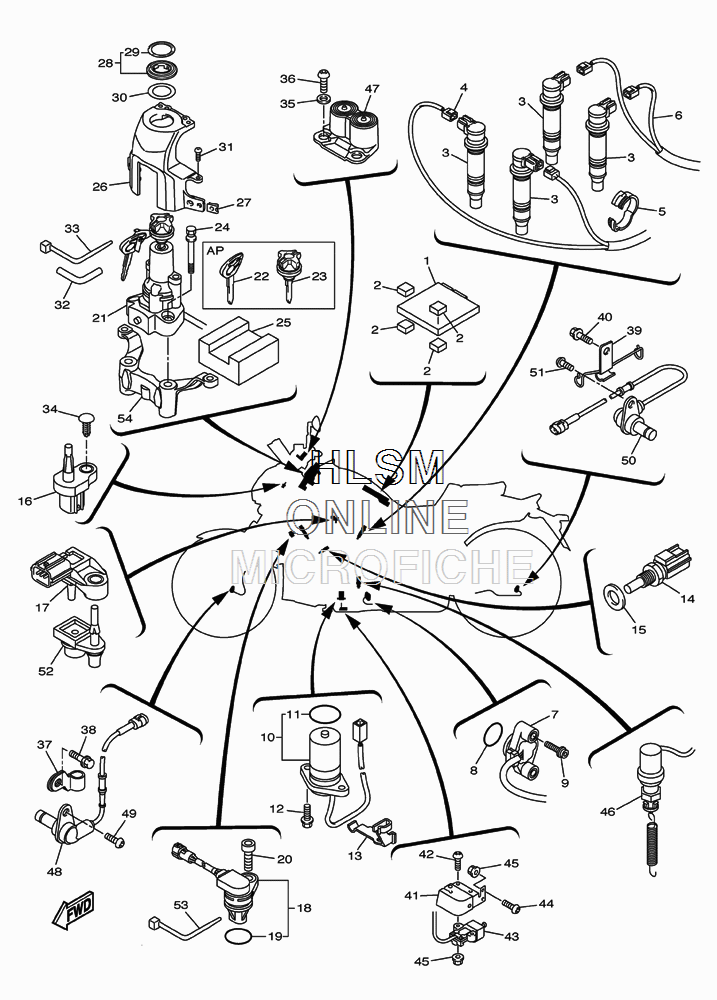

ELECTRICAL для Yamaha V-MAX - 2010 года выпуска
-
№АртикулНазвание
-
12S3-8591A-50-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
22RH-21747-00-00 DAMPERDAMPER
-
35VY-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
42S3-82509-10-00 WIRE, SUB LEADWIRE, SUB LEAD
-
590464-25005-00 CLAMPCLAMP
-
62S3-82509-20-00 WIRE, SUB LEADWIRE, SUB LEAD
-
72S3-82540-00-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
893210-21001-00 O-RINGO-RING
-
990110-05053-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
102S3-85720-00-00 OIL LEVEL GAUGE ASSYOIL LEVEL GAUGE ASSY
-
115VY-8A8E0-00-00 O-RINGO-RING
-
1295022-06016-00 BOLT, FLANGEBOLT, FLANGE
-
132S3-85724-00-00 CLAMPCLAMP
-
148CC-85790-01-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
1590201-12172-00 WASHER, PLATEWASHER, PLATE
-
165YU-85886-00-00 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
172C0-82380-00-00 SENSOR, PRESSURESENSOR, PRESSURE
-
182S3-85896-00-00 SENSOR, CAM POSITIONSENSOR, CAM POSITION
-
194D9-81168-00-00 O-RINGO-RING
-
2090110-06175-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
212S3-82501-00-00 MAIN SWITCH STEERING LOCKMAIN SWITCH STEERING LOCK
-
225PX-82511-09-00 BLANK KEYBLANK KEY
-
232S3-82511-09-00 KEY, MAIN SWITCHKEY, MAIN SWITCH
-
2490109-08207-00 BOLTBOLT
-
252S3-28372-00-00 DAMPERDAMPER
-
262S3-2117A-00-00 STAYSTAY
-
2790183-06053-00 NUT, SPRINGNUT, SPRING
-
282S3-82552-00-00 CAP, SWITCHCAP, SWITCH
-
292S3-8257H-00-00 PLATE, MARKPLATE, MARK
-
305GJ-28307-00-00 SEALSEAL
-
3192012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3290445-07671-00 HOSE (L45)HOSE (L45)
-
3312R-82591-00-00 BANDBAND
-
3490269-05055-00 RIVETRIVET
-
3590201-067F9-00 WASHER, PLATEWASHER, PLATE
-
3690111-06007-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
372S3-84387-00-00 HOLDERHOLDER
-
3895024-06012-00 BOLT, FLG. (SMALL HEAD)BOLT, FLG. (SMALL HEAD)
-
392S3-8431U-00-00 HOLDERHOLDER
-
4095024-06012-00 BOLT, FLG. (SMALL HEAD)BOLT, FLG. (SMALL HEAD)
-
412S3-27876-00-00 BRKT.,SWITCHBRKT.,SWITCH
-
4292014-05025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
432S3-82566-00-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
4492014-05020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
4595604-05200-00 NUT, U FLANGENUT, U FLANGE
-
462S3-82530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
472S3-8358J-01-00 SWITCH, METER CONTROLSWITCH, METER CONTROL
-
482S3-85970-00-00 WHEEL SENSOR ASSY, FRONTWHEEL SENSOR ASSY, FRONT
-
4992014-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
502S3-85980-00-00 WHEEL SENSOR ASSY, REARWHEEL SENSOR ASSY, REAR
-
5192014-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
522S3-14435-00-00 GROMMETGROMMET
-
531UA-82591-00-00 BANDBAND
-
542S3-82514-00-00 STAY, MAIN SWITCHSTAY, MAIN SWITCH
