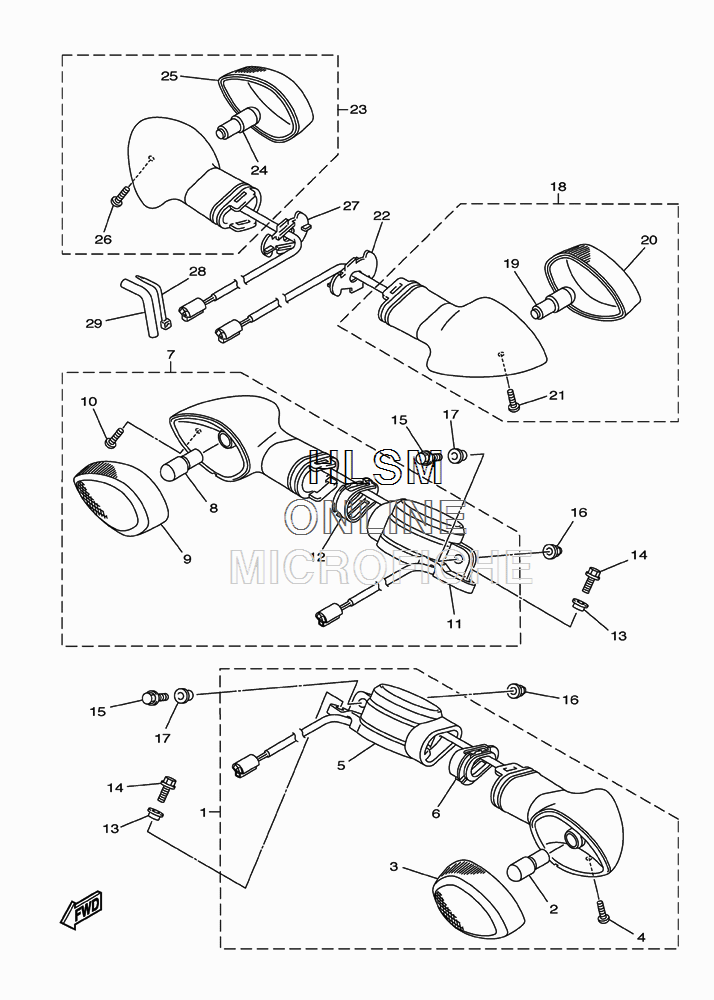

FLASHER LIGHT для Yamaha V-MAX - 2010 года выпуска
-
№АртикулНазвание
-
12S3-83310-10-00 FRONT FLASHER LIGHT ASSY 1FRONT FLASHER LIGHT ASSY 1
-
21A2-84714-41-00 BULB (12V-21/5W)BULB (12V-21/5W)
-
32C0-8333A-10-00 LENS COMP 1LENS COMP 1
-
42C0-83358-00-00 SCREW, SPECIALSCREW, SPECIAL
-
52S3-83314-00-00 BASE, FLASHER 1 (BLACK)BASE, FLASHER 1 (BLACK)
-
62S3-83318-00-00 STAY, FLASHER 1STAY, FLASHER 1
-
72S3-83320-10-00 FRONT FLASHER LIGHT ASSY 2FRONT FLASHER LIGHT ASSY 2
-
81A2-84714-41-00 BULB (12V-21/5W)BULB (12V-21/5W)
-
92C0-8334A-10-00 LENS COMP 2LENS COMP 2
-
102C0-83358-00-00 SCREW, SPECIALSCREW, SPECIAL
-
112S3-83324-00-00 BASE, FLASHER 2 (BLACK)BASE, FLASHER 2 (BLACK)
-
122S3-83328-00-00 STAY, FLASHER 2STAY, FLASHER 2
-
1390560-06244-00 SPACERSPACER
-
1495024-06016-00 BOLT, FLANGEBOLT, FLANGE
-
1595817-06016-00 BOLT, FLANGEBOLT, FLANGE
-
1690176-06055-00 NUT, CROWNNUT, CROWN
-
1790387-06246-00 COLLARCOLLAR
-
182S3-83330-10-00 REAR FLASHER LIGHT ASSY 1REAR FLASHER LIGHT ASSY 1
-
19306-83311-40-00 BULB, FLASHER (12V-21W)BULB, FLASHER (12V-21W)
-
202C0-8334A-10-00 LENS COMP 2LENS COMP 2
-
212C0-83358-00-00 SCREW, SPECIALSCREW, SPECIAL
-
222C0-83318-00-00 STAY, FLASHER 1STAY, FLASHER 1
-
232S3-83340-10-00 REAR FLASHER LIGHT ASSY 2REAR FLASHER LIGHT ASSY 2
-
24306-83311-40-00 BULB, FLASHER (12V-21W)BULB, FLASHER (12V-21W)
-
252C0-8333A-10-00 LENS COMP 1LENS COMP 1
-
262C0-83358-00-00 SCREW, SPECIALSCREW, SPECIAL
-
272C0-83318-00-00 STAY, FLASHER 1STAY, FLASHER 1
-
2812R-82591-00-00 BANDBAND
-
2990445-07036-00 HOSE (L130)HOSE (L130)
