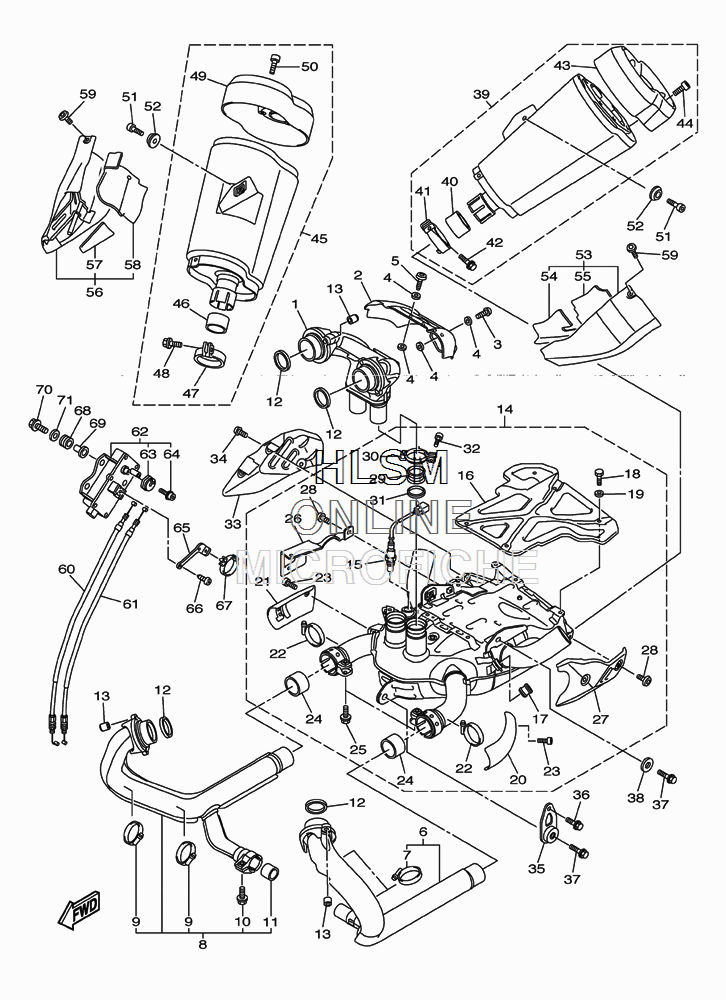

EXHAUST для Yamaha V-MAX - 2010 года выпуска
-
№АртикулНазвание
-
12S3-14602-00-00 EXHAUST PIPE COMP.EXHAUST PIPE COMP.
-
22S3-14624-00-00 COVER, EXHAUSTCOVER, EXHAUST
-
392014-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
490201-05015-00 WASHER, PLATEWASHER, PLATE
-
590111-06128-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
62S3-14620-00-00 EXHAUST PIPE ASSY 2EXHAUST PIPE ASSY 2
-
790450-45001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
82S3-14650-00-00 EXHAUST PIPE ASSY 4EXHAUST PIPE ASSY 4
-
990450-45001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1095024-08020-00 BOLT, FLG. (SMALL HEAD)BOLT, FLG. (SMALL HEAD)
-
112S3-14714-00-00 GASKET, MUFFLERGASKET, MUFFLER
-
122S3-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
1390179-08442-00 NUTNUT
-
142S3-14701-00-00 MUFFLER COMP.MUFFLER COMP.
-
152S3-8592A-00-00 SENSOR, OXYGENSENSOR, OXYGEN
-
162S3-1479H-00-00 COVER, 1COVER, 1
-
172S3-14737-00-00 DAMPER, MUFFLERDAMPER, MUFFLER
-
1897013-06012-00 BOLT (661)BOLT (661)
-
1992903-06600-00 WASHER, PLATEWASHER, PLATE
-
202S3-1479J-00-00 COVER 2COVER 2
-
212S3-1479K-00-00 COVER, 3COVER, 3
-
2290450-45001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2391314-06010-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
245YU-14755-10-00 GASKET, SILENCERGASKET, SILENCER
-
2595024-08040-00 BOLT, FLANGEBOLT, FLANGE
-
262S3-1479L-00-00 COVER 4COVER 4
-
272S3-14718-00-00 PROTECTOR, MUFFLER 1PROTECTOR, MUFFLER 1
-
2890111-06101-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
292S3-14618-00-00 RING, STOPPERRING, STOPPER
-
302S3-14725-00-00 BAND, MUFFLERBAND, MUFFLER
-
312S3-14623-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
3290110-06344-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
332S3-14826-00-00 PROTECTOR, EXHAUSTPROTECTOR, EXHAUST
-
3490111-06101-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
352S3-2144F-00-00 STAY, MUFFLER 3STAY, MUFFLER 3
-
3695024-08020-00 BOLT, FLG. (SMALL HEAD)BOLT, FLG. (SMALL HEAD)
-
3795024-08035-00 BOLT, FLG.(SMALL HEAD)BOLT, FLG.(SMALL HEAD)
-
3890201-087G2-00 WASHER, PLATEWASHER, PLATE
-
392S3-14710-00-00 MUFFLER ASSY 1MUFFLER ASSY 1
-
405VY-14714-00-00 GASKET, MUFFLERGASKET, MUFFLER
-
413D8-14715-00-00 BAND, MUFFLERBAND, MUFFLER
-
4295024-08035-00 BOLT, FLG.(SMALL HEAD)BOLT, FLG.(SMALL HEAD)
-
432S3-14787-00-00 CAP, SILENCERCAP, SILENCER
-
4490110-06274-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
452S3-14720-00-00 MUFFLER ASSY 2MUFFLER ASSY 2
-
465VY-14714-00-00 GASKET, MUFFLERGASKET, MUFFLER
-
475VY-14715-00-00 BAND, MUFFLERBAND, MUFFLER
-
4895024-08035-00 BOLT, FLG.(SMALL HEAD)BOLT, FLG.(SMALL HEAD)
-
492S3-14787-00-00 CAP, SILENCERCAP, SILENCER
-
5090110-06274-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
5191314-08040-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
522S3-27417-00-00 WASHER, FOOTRESTWASHER, FOOTREST
-
532S3-1473A-00-00 BODY,3-1BODY,3-1
-
542S3-1475P-00-00 SEATSEAT
-
552S3-1476P-00-00 SEATSEAT
-
562S3-1474A-00-00 BODY,4-1BODY,4-1
-
572S3-1477P-00-00 SEATSEAT
-
582S3-1478P-00-00 SEATSEAT
-
5992014-06010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
602S3-1133E-00-00 CABLE, PULLEY 1CABLE, PULLEY 1
-
612S3-1133F-00-00 CABLE, PULLEY 2CABLE, PULLEY 2
-
622C0-85820-00-00 SERVO MOTOR ASSYSERVO MOTOR ASSY
-
632C0-85821-00-00 PULLEY, DRIVEPULLEY, DRIVE
-
6490110-05028-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
652S3-21637-00-00 CLAMP, WIRECLAMP, WIRE
-
6697702-50514-00 SCREW, TAPPINGSCREW, TAPPING
-
6790464-07209-00 CLAMPCLAMP
-
6890480-14005-00 GROMMETGROMMET
-
6990387-063E6-00 COLLARCOLLAR
-
7095022-06025-00 BOLT, FLANGEBOLT, FLANGE
-
7190201-06M31-00 WASHER, PLATEWASHER, PLATE
