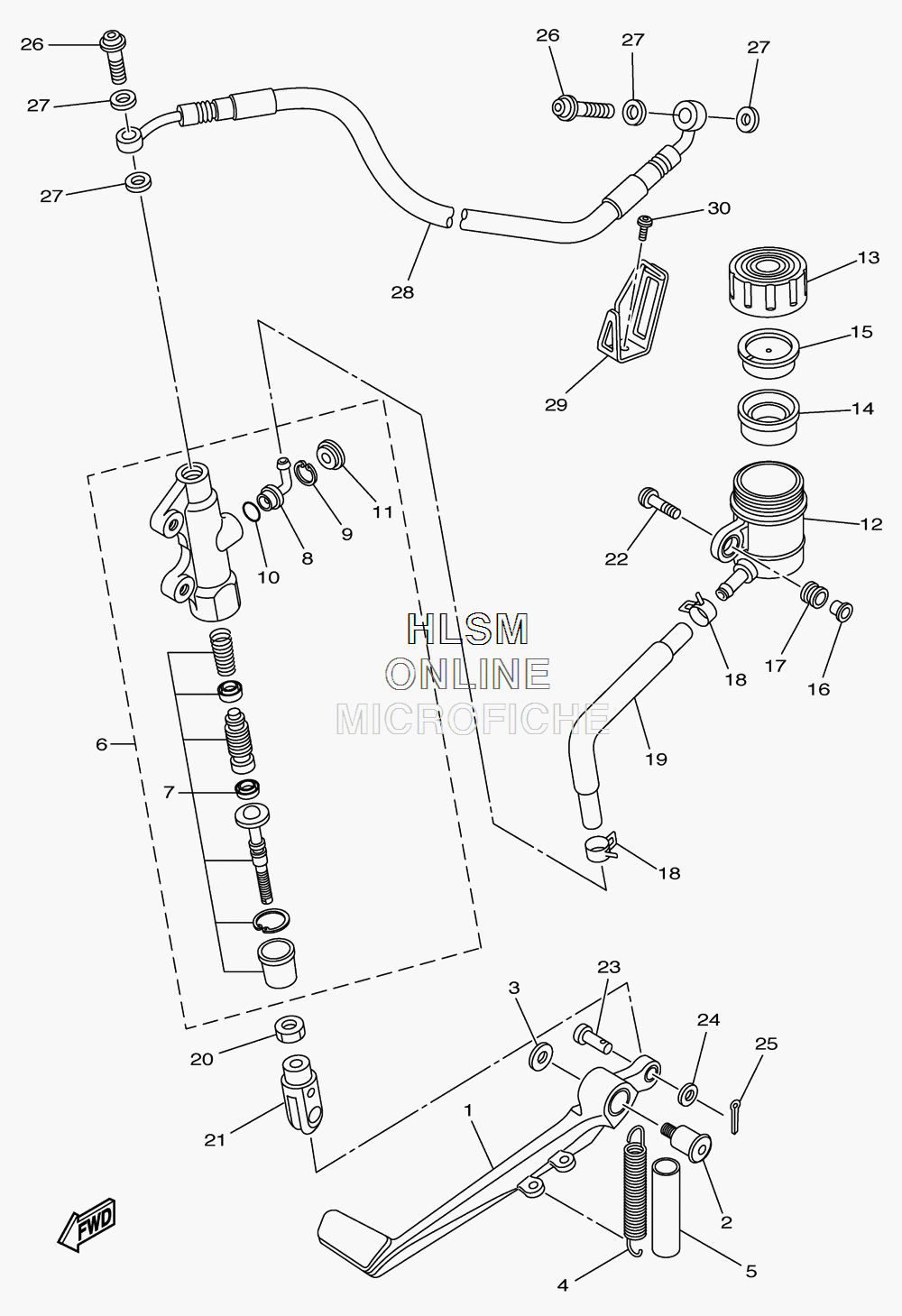

BRAKE - REAR MASTER CYLINDER для Yamaha YZF-R1 LE - 2010 года выпуска
-
№АртикулНазвание
-
114B-27211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
24C8-27434-00-00 BOLTBOLT
-
390201-08103-00 WASHER, PLATEWASHER, PLATE
-
490506-18022-00 SPRING, TENSIONSPRING, TENSION
-
590446-15386-00 HOSEHOSE
-
614B-2583V-00-00 RR. MASTER CYLINDER ASSY.RR. MASTER CYLINDER ASSY.
-
714B-W0042-00-00 CYLINDER KIT, MASTERCYLINDER KIT, MASTER
-
84ML-2582A-50-00 JOINTJOINT
-
92VN-25866-00-00 CIRCLIPCIRCLIP
-
1093210-15620-00 O-RINGO-RING
-
113FV-2589A-00-00 COVER, DUSTCOVER, DUST
-
1214B-25894-00-00 TANK, RESERVOIRTANK, RESERVOIR
-
132C0-25852-00-00 CAP, RESERVOIRCAP, RESERVOIR
-
142VN-25854-00-00 DIAPHRAGM, RESERVOIRDIAPHRAGM, RESERVOIR
-
152VN-25855-00-00 BUSH,DIAPHRAGMBUSH,DIAPHRAGM
-
1690387-05028-00 COLLARCOLLAR
-
172C0-26326-00-00 GROMMETGROMMET
-
1890467-12085-00 CLIPCLIP
-
1914B-25895-00-00 HOSE, RESERVOIRHOSE, RESERVOIR
-
2095307-08700-00 NUTNUT
-
214XV-27222-01-00 JOINTJOINT
-
2290111-05026-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2391702-06018-00 PIN, CLEVISPIN, CLEVIS
-
2492902-06200-00 WASHERWASHER
-
2591402-16012-00 PIN, COTTERPIN, COTTER
-
2690401-10172-00 BOLT, UNIONBOLT, UNION
-
2790430-10005-00 GASKETGASKET
-
2814B-25874-00-00 HOSE, BRAKEHOSE, BRAKE
-
2914B-2588F-00-00 HOLDER, BRAKE HOSE 5HOLDER, BRAKE HOSE 5
-
3090111-06038-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
