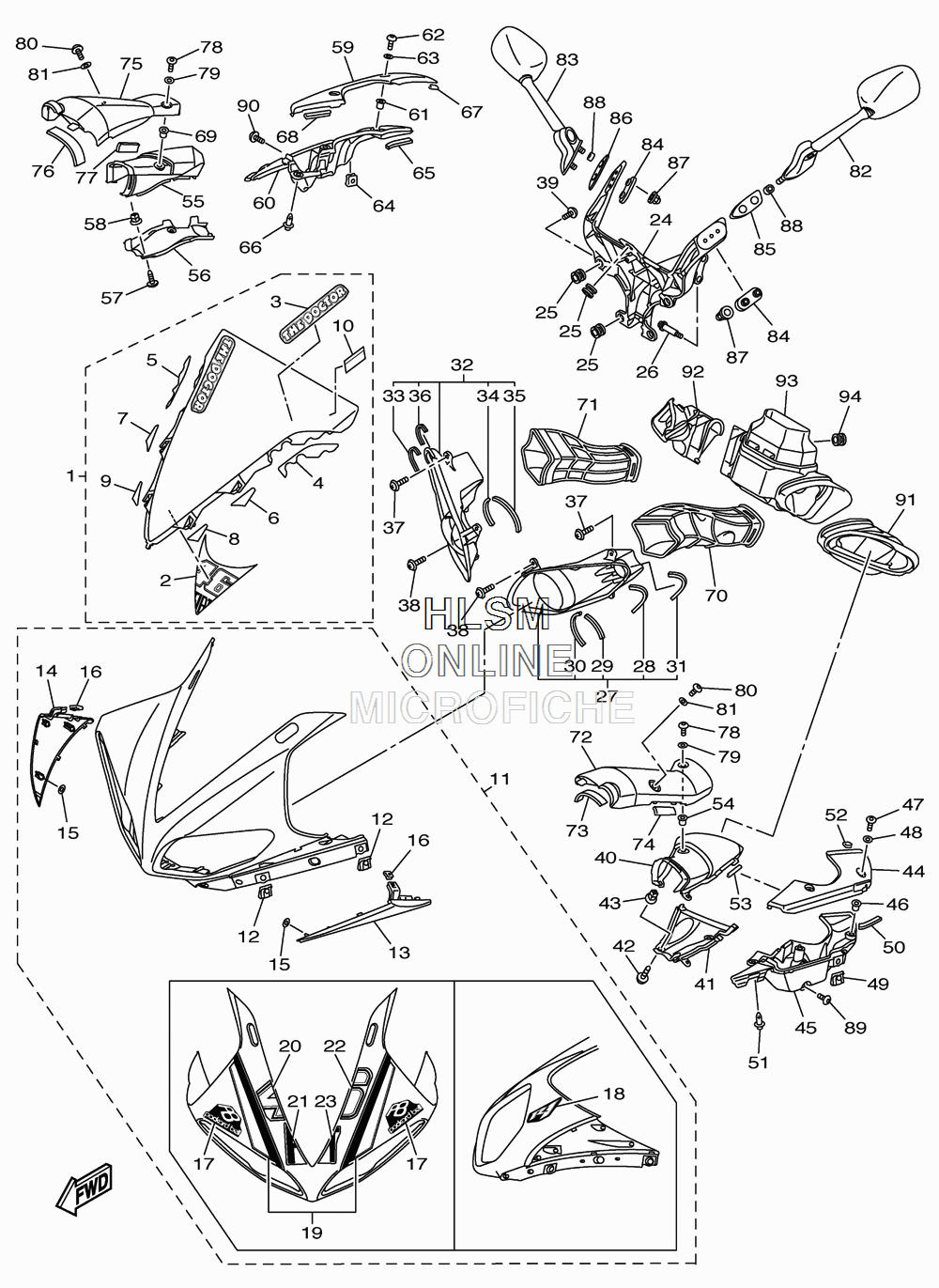

COWLING для Yamaha YZF-R1 LE - 2010 года выпуска
-
№АртикулНазвание
-
114B-Y283P-40-00 SCREENSCREEN
-
214B-283BX-00-00 GRAPHIC 46GRAPHIC 46
-
35SL-28338-00-00 EMBLEMEMBLEM
-
414B-28428-00-00 SEAL 1SEAL 1
-
514B-28429-00-00 SEAL 2SEAL 2
-
614B-2844E-00-00 SEAL 3SEAL 3
-
714B-2846F-00-00 SEAL 4SEAL 4
-
814B-2847F-00-00 SEAL 5SEAL 5
-
914B-2848F-00-00 SEAL 6SEAL 6
-
104B5-2815K-00-00 LABEL, NOTICE WINDSHIELD 1LABEL, NOTICE WINDSHIELD 1
-
1114B-Y283G-80-0X BODY, FRONT UPPER 1 FOR DPBMCBODY, FRONT UPPER 1 FOR DPBMC
-
125PW-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
1314B-28219-00-P3 COVER 1 FOR MBL2COVER 1 FOR MBL2
-
1414B-28229-00-P3 COVER 2 FOR MBL2COVER 2 FOR MBL2
-
1590183-05M02-00 NUT, SPRINGNUT, SPRING
-
1690183-05076-00 NUT, SPRINGNUT, SPRING
-
1714B-2835C-00-00 EMBLEM 2EMBLEM 2
-
1814B-2834C-00-00 EMBLEM 1EMBLEM 1
-
1914B-2834X-00-00 GRAPHIC SET 1, COWLINGGRAPHIC SET 1, COWLING
-
2014B-28394-00-00 GRAPHIC, 4GRAPHIC, 4
-
2114B-28398-00-00 GRAPHIC, 5GRAPHIC, 5
-
2214B-28399-00-00 GRAPHIC, 6GRAPHIC, 6
-
2314B-2839A-00-00 GRAPHIC, 7GRAPHIC, 7
-
2414B-28356-00-00 STAY 1STAY 1
-
254XV-83513-00-00 DAMPERDAMPER
-
2690105-08052-00 BOLT, FLANGEBOLT, FLANGE
-
2714B-2838B-00-00 GRILL ASSYGRILL ASSY
-
2814B-28372-00-00 DAMPERDAMPER
-
29J44-78248-00-00 SEAL 4SEAL 4
-
3090520-03001-00 DAMPER, PLATEDAMPER, PLATE
-
311TX-28267-00-00 DAMPER 5DAMPER 5
-
3214B-2838B-10-00 GRILL ASSYGRILL ASSY
-
3314B-28372-00-00 DAMPERDAMPER
-
34J44-78248-00-00 SEAL 4SEAL 4
-
3590520-03001-00 DAMPER, PLATEDAMPER, PLATE
-
361TX-28267-00-00 DAMPER 5DAMPER 5
-
3790160-05007-00 SCREW, ROUND TAPPINGSCREW, ROUND TAPPING
-
3897707-50012-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
3990160-05006-00 SCREW, ROUND TAPPINGSCREW, ROUND TAPPING
-
4014B-2838N-00-P6 DUCT 1 FOR DPBMCDUCT 1 FOR DPBMC
-
4114B-2838T-00-00 DUCT 3DUCT 3
-
4297702-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
4390480-08005-00 GROMMETGROMMET
-
4414B-2839K-00-P6 LID 1 FOR DPBMCLID 1 FOR DPBMC
-
4514B-2838V-00-00 BOX 3BOX 3
-
4690179-05523-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
4790111-05034-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4890202-05180-00 WASHER, PLATEWASHER, PLATE
-
495PW-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
50J44-78248-00-00 SEAL 4SEAL 4
-
5190269-07077-00 RIVETRIVET
-
5290520-01001-00 DAMPER, PLATEDAMPER, PLATE
-
5390520-03005-00 DAMPER, PLATEDAMPER, PLATE
-
5490179-05523-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
5514B-2838R-00-P6 DUCT 2 FOR DPBMCDUCT 2 FOR DPBMC
-
5614B-2838U-00-00 DUCT 4DUCT 4
-
5797702-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
5890480-08005-00 GROMMETGROMMET
-
5914B-2839L-00-P6 LID 2 FOR DPBMCLID 2 FOR DPBMC
-
6014B-2838W-00-00 BOX 4BOX 4
-
6190179-05523-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
6290111-05034-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
6390202-05180-00 WASHER, PLATEWASHER, PLATE
-
645PW-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
65J44-78248-00-00 SEAL 4SEAL 4
-
6690269-07077-00 RIVETRIVET
-
6790520-01001-00 DAMPER, PLATEDAMPER, PLATE
-
6890520-03005-00 DAMPER, PLATEDAMPER, PLATE
-
6990179-05523-00 NUTNUT
-
7014B-2838J-00-00 DUCT 5DUCT 5
-
7114B-2838P-00-00 DUCT 6DUCT 6
-
7214B-2837L-00-P6 PANEL, CONSOLE 1 FOR DPBMCPANEL, CONSOLE 1 FOR DPBMC
-
734C8-2112D-00-00 DAMPER, 3DAMPER, 3
-
742S3-2111D-00-00 SEAL 1SEAL 1
-
7514B-2837M-00-P6 PANEL, CONSOLE 2 FOR DPBMCPANEL, CONSOLE 2 FOR DPBMC
-
764C8-2112D-00-00 DAMPER, 3DAMPER, 3
-
772S3-2111D-00-00 SEAL 1SEAL 1
-
7890111-05034-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
7990202-05180-00 WASHER, PLATEWASHER, PLATE
-
8090111-05034-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
8190202-05180-00 WASHER, PLATEWASHER, PLATE
-
8214B-26280-00-00 REAR VIEW MIRROR ASSY (LEFT)REAR VIEW MIRROR ASSY (LEFT)
-
8314B-26290-00-00 REAR VIEW MIRROR ASSY (RIGHT)REAR VIEW MIRROR ASSY (RIGHT)
-
844C8-26298-00-00 PLATE, MIRROR FITTING 1PLATE, MIRROR FITTING 1
-
8514B-2628N-00-00 BASE, MIRROR (LEFT)BASE, MIRROR (LEFT)
-
8614B-2628R-00-00 BASE, MIRROR (RIGHT)BASE, MIRROR (RIGHT)
-
8790176-06055-00 NUT, CROWNNUT, CROWN
-
8890387-064T3-00 COLLARCOLLAR
-
8990111-05034-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
9090111-05034-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
9114B-2846C-00-00 BOX, SIDE 1BOX, SIDE 1
-
9214B-2846D-00-00 BOX, SIDE 2BOX, SIDE 2
-
9314B-2845D-10-00 BOX, FRONTBOX, FRONT
-
9490480-13567-00 GROMMETGROMMET
