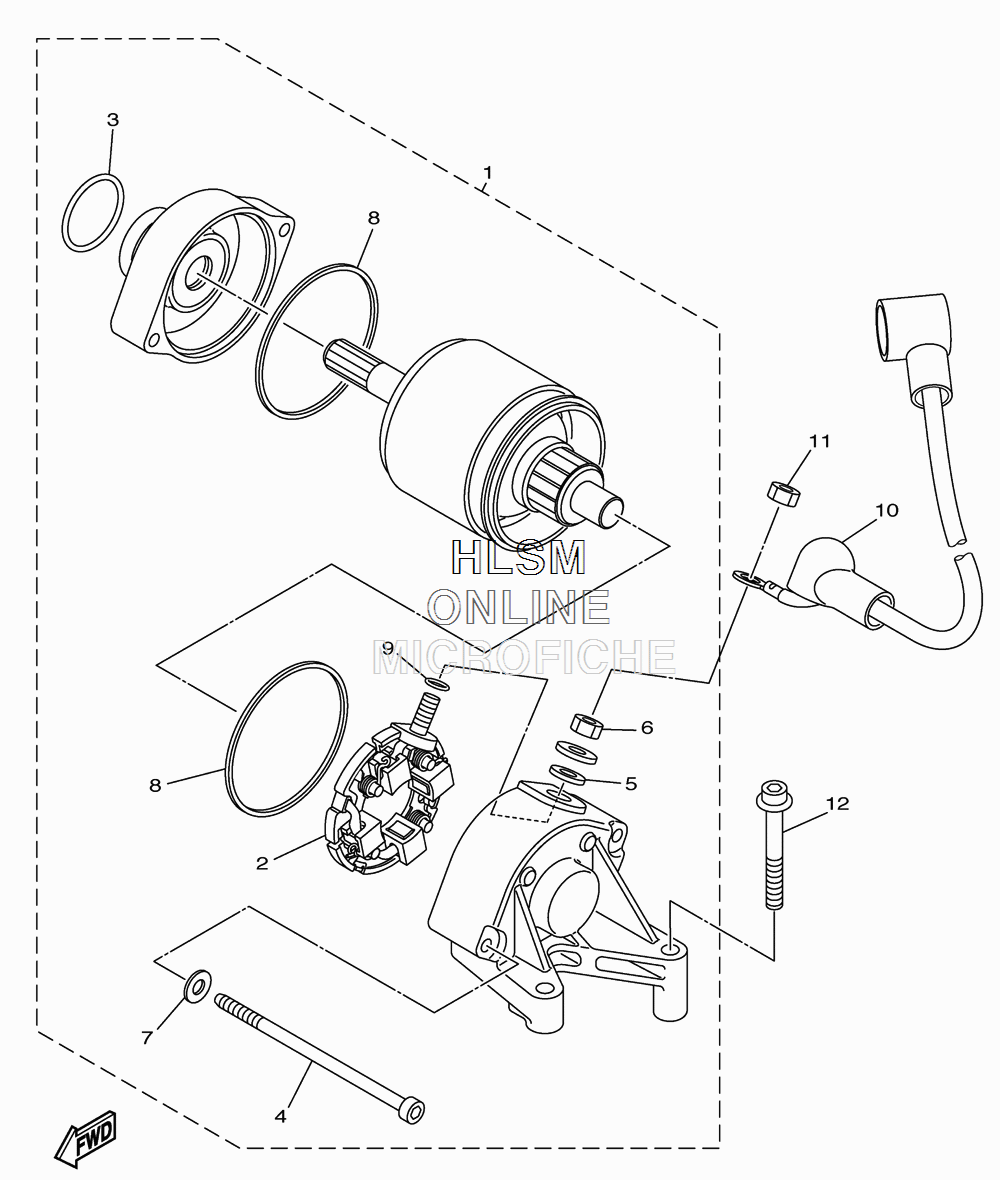

STARTING MOTOR для Yamaha YZF-R1 LE - 2010 года выпуска
-
№АртикулНазвание
-
114B-81890-00-00 MOTOR ASSYMOTOR ASSY
-
24C8-81801-01-00 BRUSH SETBRUSH SET
-
393210-25711-00 O-RINGO-RING
-
44C8-81846-00-00 SCREWSCREW
-
58FA-8181L-00-00 WASHER, PLAINWASHER, PLAIN
-
695302-06700-00 NUTNUT
-
790201-05021-00 WASHER, PLATEWASHER, PLATE
-
84C8-81861-00-00 GASKETGASKET
-
993210-06001-00 O-RINGO-RING
-
1014B-8183G-01-00 CORD COMP.CORD COMP.
-
1195302-06700-00 NUTNUT
-
1290109-06016-00 BOLTBOLT
