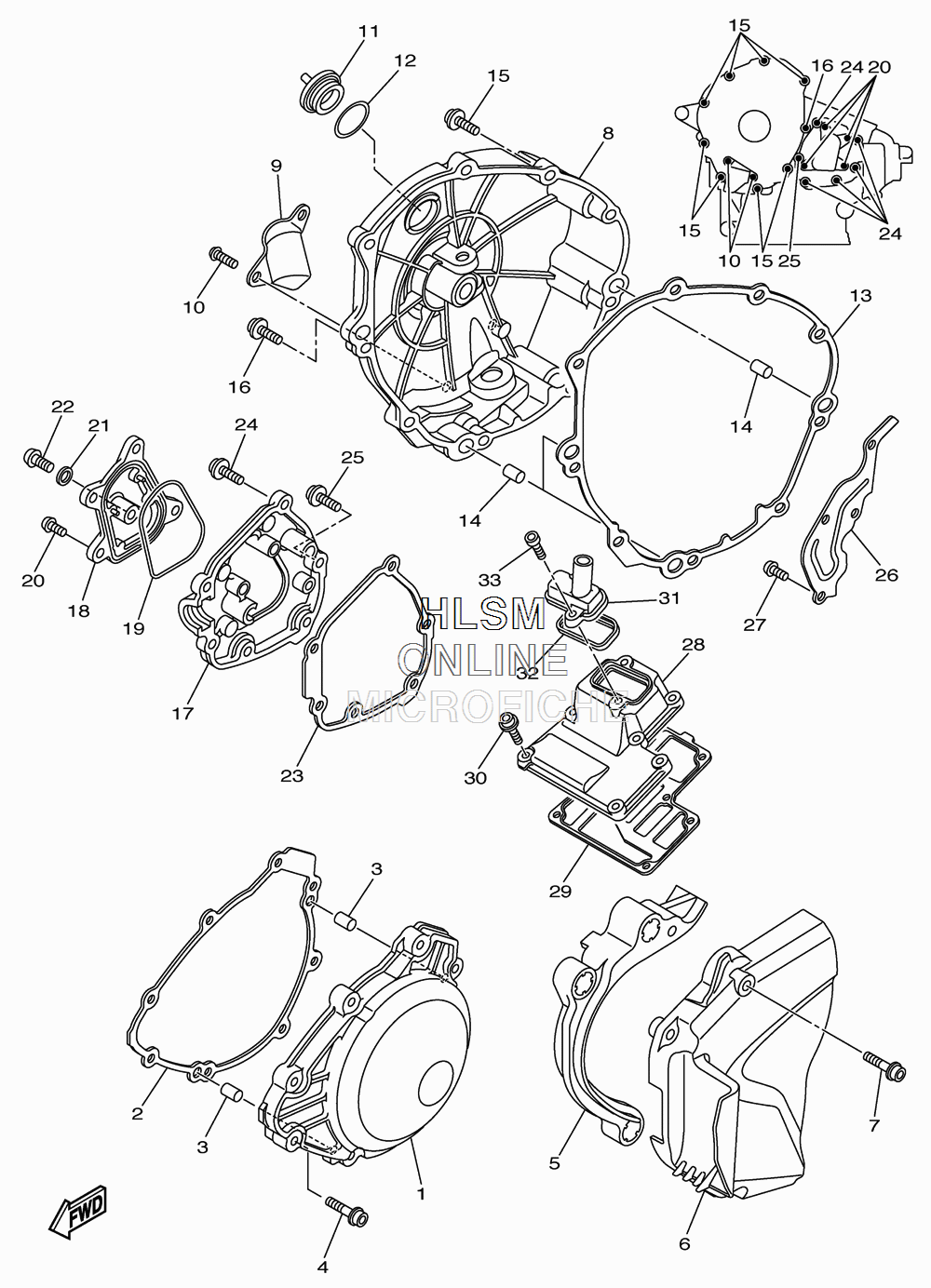

CRANKCASE COVER для Yamaha YZF-R1 LE - 2010 года выпуска
-
№АртикулНазвание
-
114B-15411-00-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
214B-15451-00-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
399530-08012-00 PIN, DOWELPIN, DOWEL
-
490110-06326-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
514B-15377-00-00 GUIDE, INLETGUIDE, INLET
-
614B-15418-00-00 COVER, CHAIN CASECOVER, CHAIN CASE
-
790110-06338-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
814B-15421-00-00 COVER, CRANKCASE 2COVER, CRANKCASE 2
-
95VY-15499-00-00 PROTECTOR, COVERPROTECTOR, COVER
-
1090149-06152-00 SCREWSCREW
-
113F9-15362-10-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
1293210-27778-00 O-RINGO-RING
-
1314B-15461-00-00 GASKET, CRANKCASE COVER 2GASKET, CRANKCASE COVER 2
-
1493610-20189-00 PIN, DOWELPIN, DOWEL
-
1590110-06323-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1690110-06324-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1714B-15416-00-00 COVER, OIL PUMPCOVER, OIL PUMP
-
1814B-15431-00-00 COVER, CRANKCASE 3COVER, CRANKCASE 3
-
1993210-68001-00 O-RINGO-RING
-
2090149-06152-00 SCREWSCREW
-
2190430-08143-00 GASKETGASKET
-
2292014-08016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2314B-15456-00-00 GASKET, OIL PUMP COVER 1GASKET, OIL PUMP COVER 1
-
2490110-06331-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2590110-06323-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2614B-11165-00-00 PLATE, BREATHERPLATE, BREATHER
-
2790149-06071-00 SCREWSCREW
-
2814B-15413-00-00 COVERCOVER
-
2914B-15462-00-00 GASKET, CRANKCASE COVER 3GASKET, CRANKCASE COVER 3
-
3090110-06326-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3114B-15423-01-00 COVER 2COVER 2
-
3214B-15379-00-00 SEAL, CRANKCASESEAL, CRANKCASE
-
3390110-06178-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
