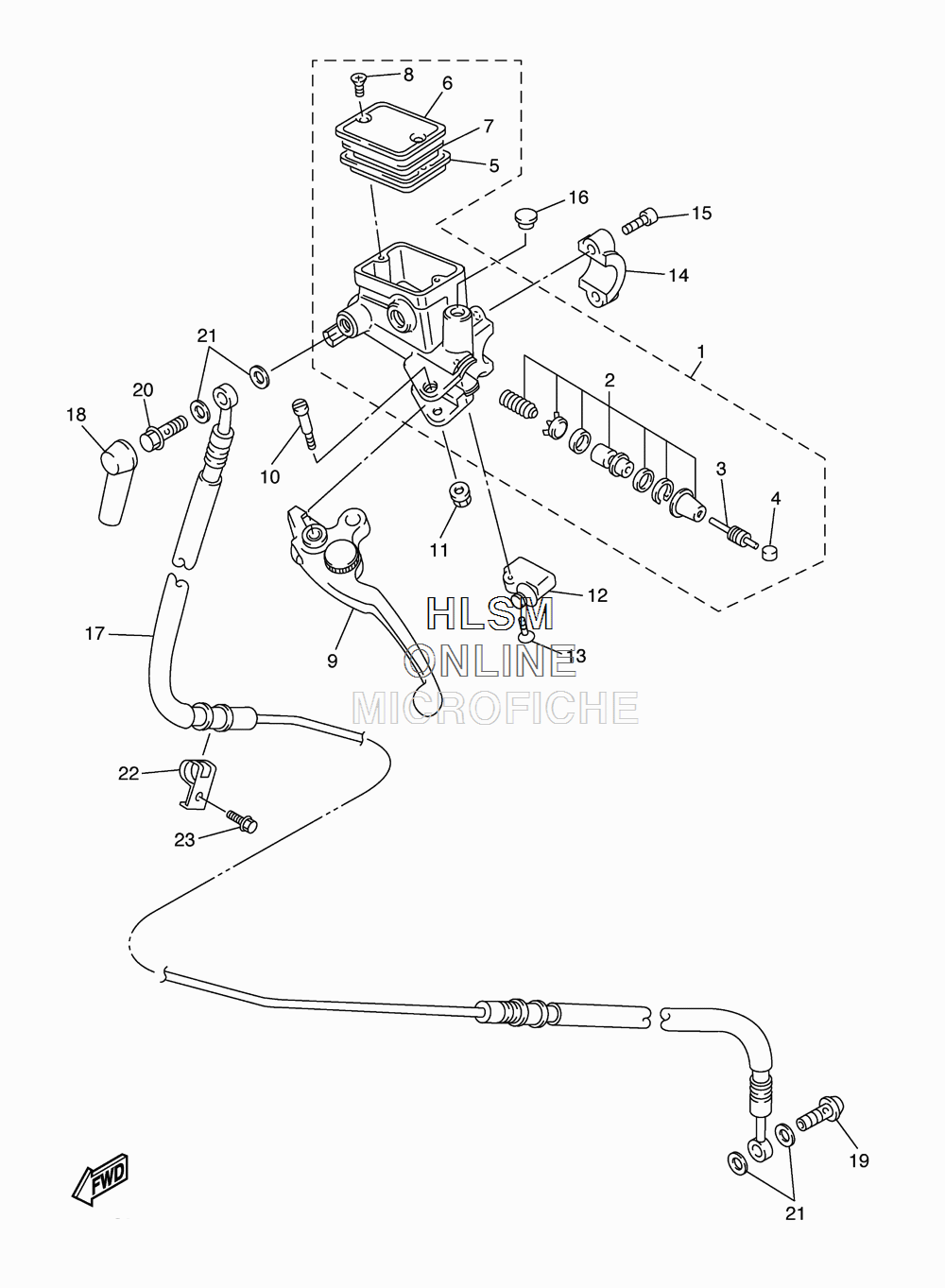

CLUTCH - MASTER CYLINDER W/ MIRROR для Yamaha FJR1300A - 2012 года выпуска
-
№АртикулНазвание
-
15JW-W2645-01-00 MASTER CYLINDER SUB ASSYMASTER CYLINDER SUB ASSY
-
25JW-W0099-00-00 ...CYLINDER KIT, MASTER (CLUTCH)...CYLINDER KIT, MASTER (CLUTCH)
-
33GM-26464-00-00 ...ROD, PUSH...ROD, PUSH
-
43GM-26455-00-00 ...BUSH...BUSH
-
54HM-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
64HM-25852-01-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
73GM-2585B-10-00 ...PLATE, DIAPHRAGM...PLATE, DIAPHRAGM
-
898706-04012-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
95EA-83912-00-00 LEVER 1LEVER 1
-
103FV-2589F-00-00 BOLT, LEVERBOLT, LEVER
-
1195706-06500-00 NUT, WITH WASHER (4MV)NUT, WITH WASHER (4MV)
-
123GM-83980-00-00 SWITCHSWITCH
-
1398706-04016-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
144KG-25867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
1591316-06020-00 BOLT (4FL)BOLT (4FL)
-
1690338-09012-00 PLUGPLUG
-
175VS-26470-00-00 HOSE, CLUTCHHOSE, CLUTCH
-
184L0-25862-01-00 BOOT, MASTER CYLINDERBOOT, MASTER CYLINDER
-
1990401-10172-00 BOLT, UNIONBOLT, UNION
-
2090401-10020-00 BOLT, UNIONBOLT, UNION
-
2190201-10118-00 WASHER, PLATEWASHER, PLATE
-
225JW-21823-00-00 CLAMP, HOSECLAMP, HOSE
-
2395022-06010-00 BOLT, FLANGEBOLT, FLANGE
