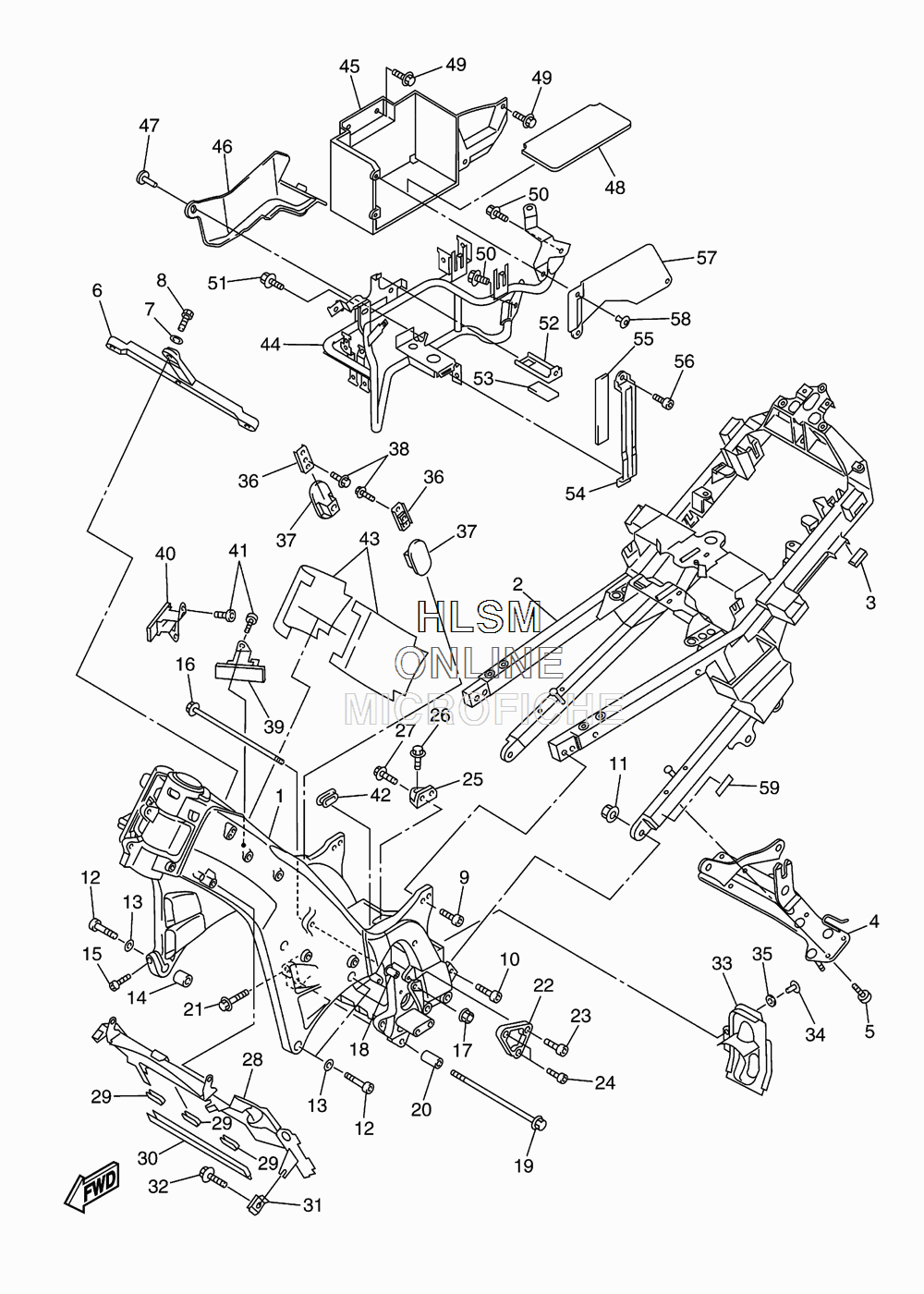

FRAME для Yamaha FJR1300A - 2012 года выпуска
-
№АртикулНазвание
-
13P6-21110-00-00 FRAME COMP.FRAME COMP.
-
23P6-21190-00-00 REAR FRAME COMP.REAR FRAME COMP.
-
33P6-21652-00-00 PROTECTORPROTECTOR
-
43P6-2115A-10-00 MEMBER 1MEMBER 1
-
590149-06022-00 SCREWSCREW
-
63P6-21119-00-00 CROSS-TUBECROSS-TUBE
-
790201-100L3-00 WASHER, PLATEWASHER, PLATE
-
895812-10030-00 BOLT, FLANGEBOLT, FLANGE
-
990110-08076-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1091314-10030-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1195602-10200-00 NUT, U FLANGENUT, U FLANGE
-
1291314-12055-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1392902-12600-00 WASHER, PLATEWASHER, PLATE
-
1490387-1312P-00 COLLARCOLLAR
-
1591314-08030-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1690105-10416-00 BOLT, FLANGEBOLT, FLANGE
-
1790179-10025-00 NUTNUT
-
184C8-21495-00-00 BOLT, ENGINE ADJUSTINGBOLT, ENGINE ADJUSTING
-
1990105-10730-00 BOLT, FLANGEBOLT, FLANGE
-
2090560-10364-00 SPACERSPACER
-
2195022-08035-00 BOLT, FLANGEBOLT, FLANGE
-
223P6-21315-00-00 STAY, ENGINE 2STAY, ENGINE 2
-
2391314-10020-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2491314-08016-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
255JW-21316-00-00 STAY, ENGINE 3STAY, ENGINE 3
-
2690101-10M05-00 BOLT (L=25, P=1.25)BOLT (L=25, P=1.25)
-
2790105-08307-00 BOLT, FLANGEBOLT, FLANGE
-
283P6-2137Y-00-00 GUIDE, AIRGUIDE, AIR
-
293P6-21269-00-00 SEALSEAL
-
303P6-21469-00-00 SEAL, AIRSEAL, AIR
-
3190183-06053-00 NUT, SPRINGNUT, SPRING
-
3290119-06172-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
333P6-2147J-00-00 COVER, SHAFT 1COVER, SHAFT 1
-
3490269-07008-00 RIVETRIVET
-
3590202-06058-00 WASHER, PLATEWASHER, PLATE
-
365JW-2118U-00-00 BRACKET 3BRACKET 3
-
375JW-2113N-00-00 BRACKET, INNER 1BRACKET, INNER 1
-
3895022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
395JW-2113R-00-00 BRACKET, INNER 2BRACKET, INNER 2
-
405JW-2113R-10-00 BRACKET, INNER 2BRACKET, INNER 2
-
4190149-06304-00 SCREWSCREW
-
425JW-2143A-00-00 CAPCAP
-
435JW-21852-00-00 DAMPERDAMPER
-
443P6-28321-00-00 STAY 1STAY 1
-
453P6-2177G-00-00 BOX, BATTERYBOX, BATTERY
-
463P6-2137K-00-00 GUIDE, AIR 3GUIDE, AIR 3
-
4790269-05074-00 RIVETRIVET
-
485VX-82122-00-00 SEAT, BATTERYSEAT, BATTERY
-
4990119-06209-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
5095022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
5195822-06014-00 BOLT, FLANGEBOLT, FLANGE
-
525JW-28357-00-00 STAY 2STAY 2
-
535JW-28425-00-00 DAMPER 3DAMPER 3
-
545JW-28358-00-00 STAY 3STAY 3
-
555JW-28435-00-00 DAMPER 4DAMPER 4
-
5691312-06012-00 BOLTBOLT
-
575JW-2172W-00-00 COVERCOVER
-
5890269-06001-00 RIVETRIVET
-
595JW-2151A-02-00 LABEL 1LABEL 1
