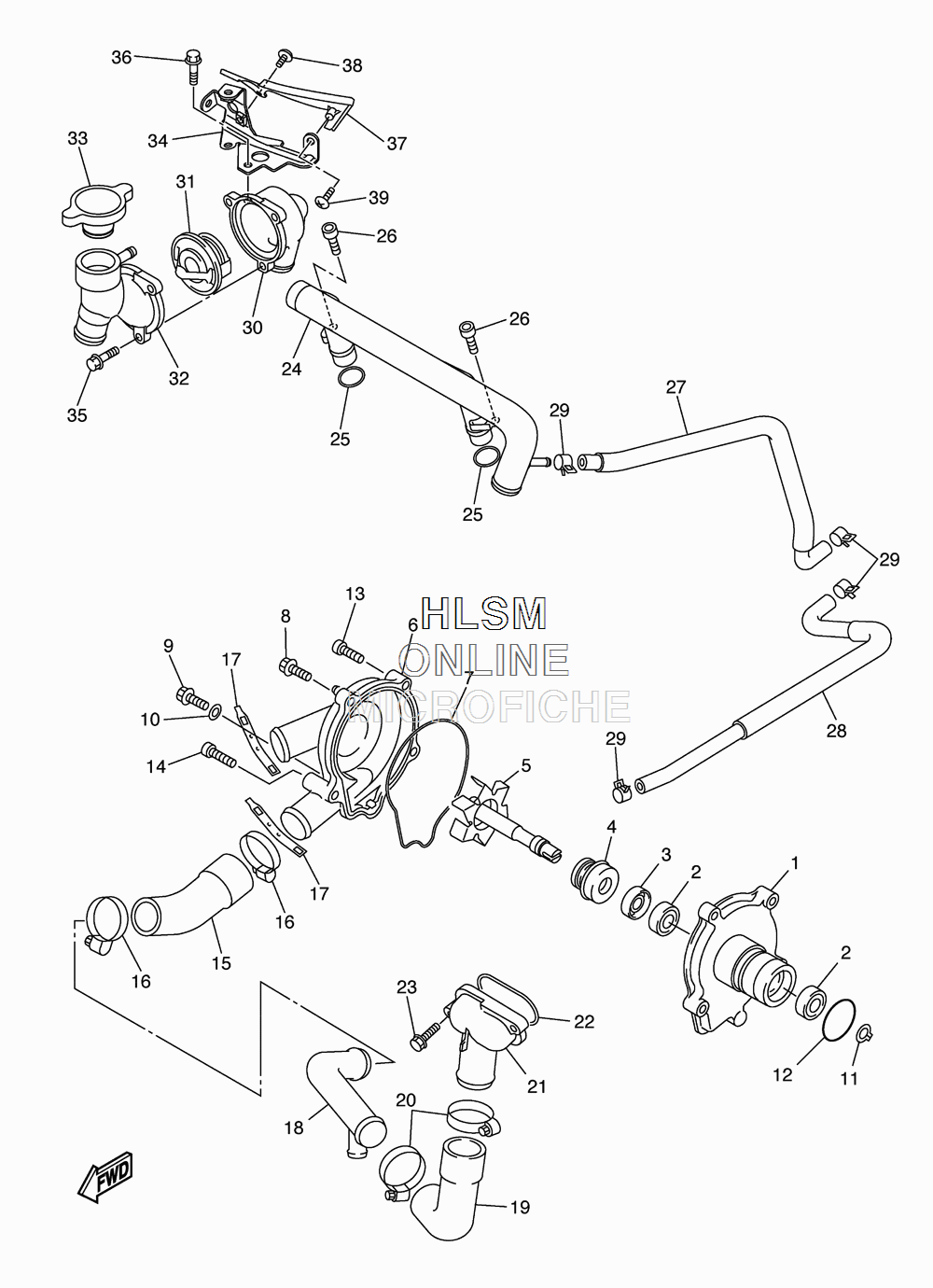

WATER PUMP для Yamaha FJR1300A - 2012 года выпуска
-
№АртикулНазвание
-
15JW-12421-10-00 HOUSING, WATER PUMPHOUSING, WATER PUMP
-
293306-00106-00 BEARINGBEARING
-
393102-12372-00 OIL SEALOIL SEAL
-
411H-12438-10-00 SEAL, MECHANICALSEAL, MECHANICAL
-
55JW-12450-00-00 IMPELLER SHAFT ASSYIMPELLER SHAFT ASSY
-
65JW-12422-10-00 COVER, HOUSINGCOVER, HOUSING
-
75JW-12439-00-00 O-RINGO-RING
-
890105-06065-00 BOLT, FLANGEBOLT, FLANGE
-
995024-06025-00 BOLT, FLANGE (SMALL HEAD)BOLT, FLANGE (SMALL HEAD)
-
1090430-06014-00 GASKETGASKET
-
1199009-12400-00 CIRCLIPCIRCLIP
-
1293210-33133-00 O-RINGO-RING
-
1390110-06336-00 BOLT, HEXAGON SOCKETBOLT, HEXAGON SOCKET
-
1490110-06337-00 BOLT, HEXAGON SOCKETBOLT, HEXAGON SOCKET
-
155JW-12576-00-00 HOSE 1HOSE 1
-
1690450-38040-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
175GV-1246E-00-00 COVER 2COVER 2
-
183P6-12581-00-00 JOINT, HOSE 1JOINT, HOSE 1
-
195JW-12577-00-00 HOSE 2HOSE 2
-
2090450-38040-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
215JW-12469-00-00 JOINT 1JOINT 1
-
2293210-47675-00 O-RINGO-RING
-
2390105-06082-00 BOLT, FLANGEBOLT, FLANGE
-
243P6-12481-02-00 PIPE 1PIPE 1
-
2593210-18417-00 O-RINGO-RING
-
2691312-06016-00 BOLTBOLT
-
273P6-12578-00-00 HOSE 3HOSE 3
-
283P6-12579-00-00 HOSE 4HOSE 4
-
2990467-11090-00 CLIPCLIP
-
303P6-12417-00-00 HOUSING, THERMOSTATHOUSING, THERMOSTAT
-
314FM-12410-00-00 THERMOSTAT ASSYTHERMOSTAT ASSY
-
323P6-12591-00-00 SUPT, FILLER NECKSUPT, FILLER NECK
-
335JW-12462-00-00 CAP, RADIATORCAP, RADIATOR
-
343P6-1244E-00-00 BRACKET 1BRACKET 1
-
3595022-06020-00 BOLT, FLANGEBOLT, FLANGE
-
3695022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
373P6-2137U-00-00 GUIDE, AIR 1GUIDE, AIR 1
-
3890154-05013-00 SCREW, BINDINGSCREW, BINDING
-
3997702-50012-00 SCREW, TAPPINGSCREW, TAPPING
