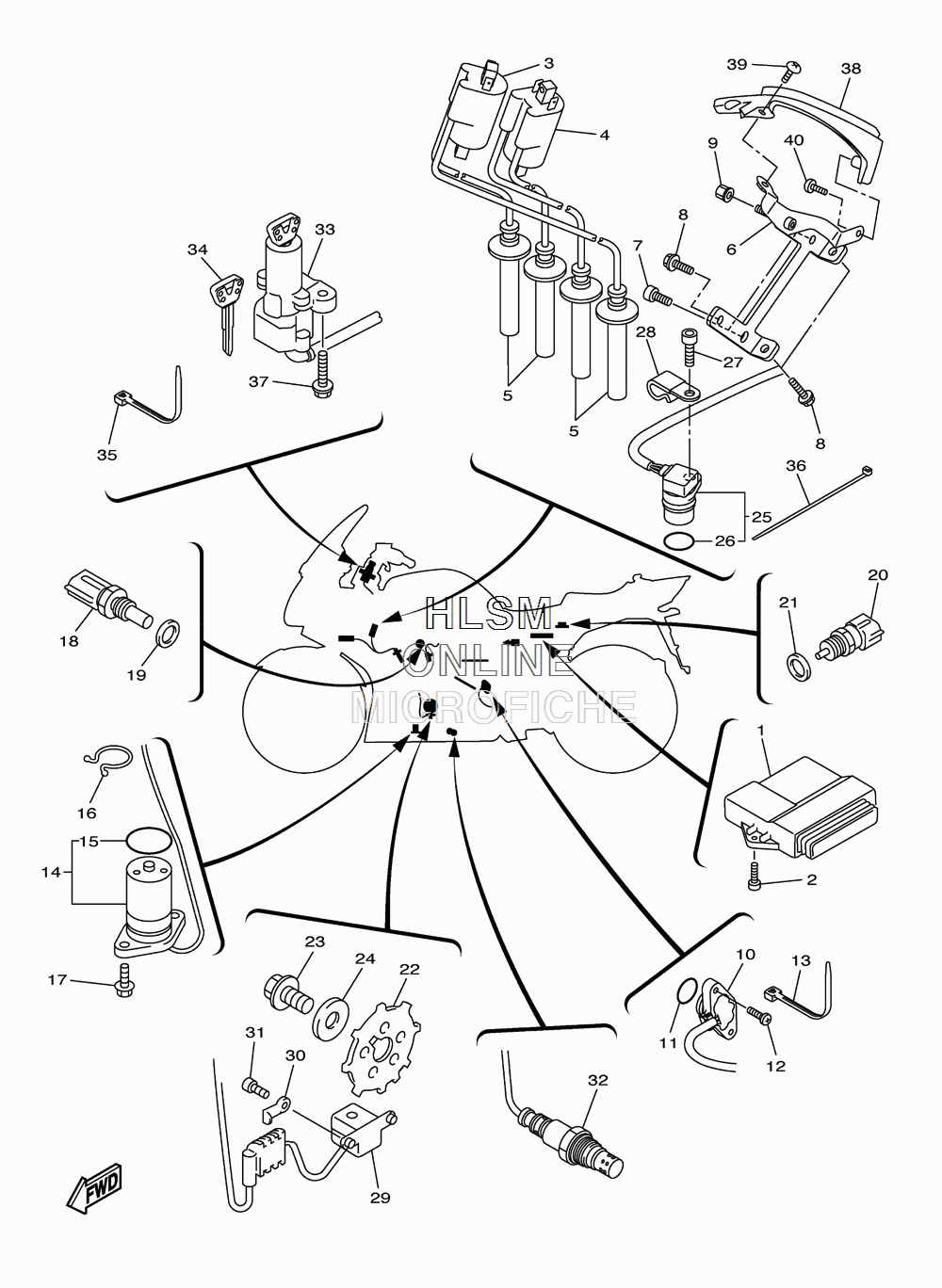

ELECTRICAL для Yamaha FJR1300A - 2012 года выпуска
-
№АртикулНазвание
-
13P6-8591A-A0-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
297702-60020-00 SCREW, TAPPINGSCREW, TAPPING
-
33P6-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
43P6-82320-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
55JW-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
63P6-82316-00-00 BRACKET, IGNITION COILBRACKET, IGNITION COIL
-
791312-06012-00 BOLTBOLT
-
895022-06016-00 BOLT, FLANGEBOLT, FLANGE
-
990179-06500-00 NUTNUT
-
103P6-82540-00-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
1193210-21001-00 O-RINGO-RING
-
1290154-05073-00 SCREW, BINDINGSCREW, BINDING
-
131UA-82591-00-00 BANDBAND
-
143P6-85720-00-00 OIL LEVEL GAUGE ASSYOIL LEVEL GAUGE ASSY
-
154XV-8A8E0-00-00 ...O-RING...O-RING
-
1690464-14058-00 CLAMPCLAMP
-
1795022-06016-00 BOLT, FLANGEBOLT, FLANGE
-
188CC-85790-01-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
1990201-12790-00 WASHER, PLATEWASHER, PLATE
-
205FL-85790-00-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
2190430-12202-00 GASKETGASKET
-
225JW-81673-10-00 ROTORROTOR
-
2390105-10153-00 BOLT, FLANGEBOLT, FLANGE
-
2490201-107K6-00 WASHER, PLATEWASHER, PLATE
-
255FL-83755-02-00 SENSOR, SPEEDSENSOR, SPEED
-
264D9-81168-00-00 ...O-RING...O-RING
-
2790110-06193-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2890462-08039-00 CLAMPCLAMP
-
293P6-81670-00-00 PICK-UP ASSYPICK-UP ASSY
-
3090465-08055-00 CLAMPCLAMP
-
3190110-05032-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
322D2-8592A-00-00 SENSOR, OXYGENSENSOR, OXYGEN
-
333P6-82501-20-00 MAIN SWITCH STEERING LOCKMAIN SWITCH STEERING LOCK
-
344BH-82511-09-00 BLANK KEYBLANK KEY
-
3590465-10098-00 CLAMPCLAMP
-
365Y9-12491-00-00 CLAMP 1CLAMP 1
-
3790109-08195-00 BOLTBOLT
-
383P6-2137V-00-00 GUIDE, AIR 2GUIDE, AIR 2
-
3990154-05013-00 SCREW, BINDINGSCREW, BINDING
-
4097702-50012-00 SCREW, TAPPINGSCREW, TAPPING
