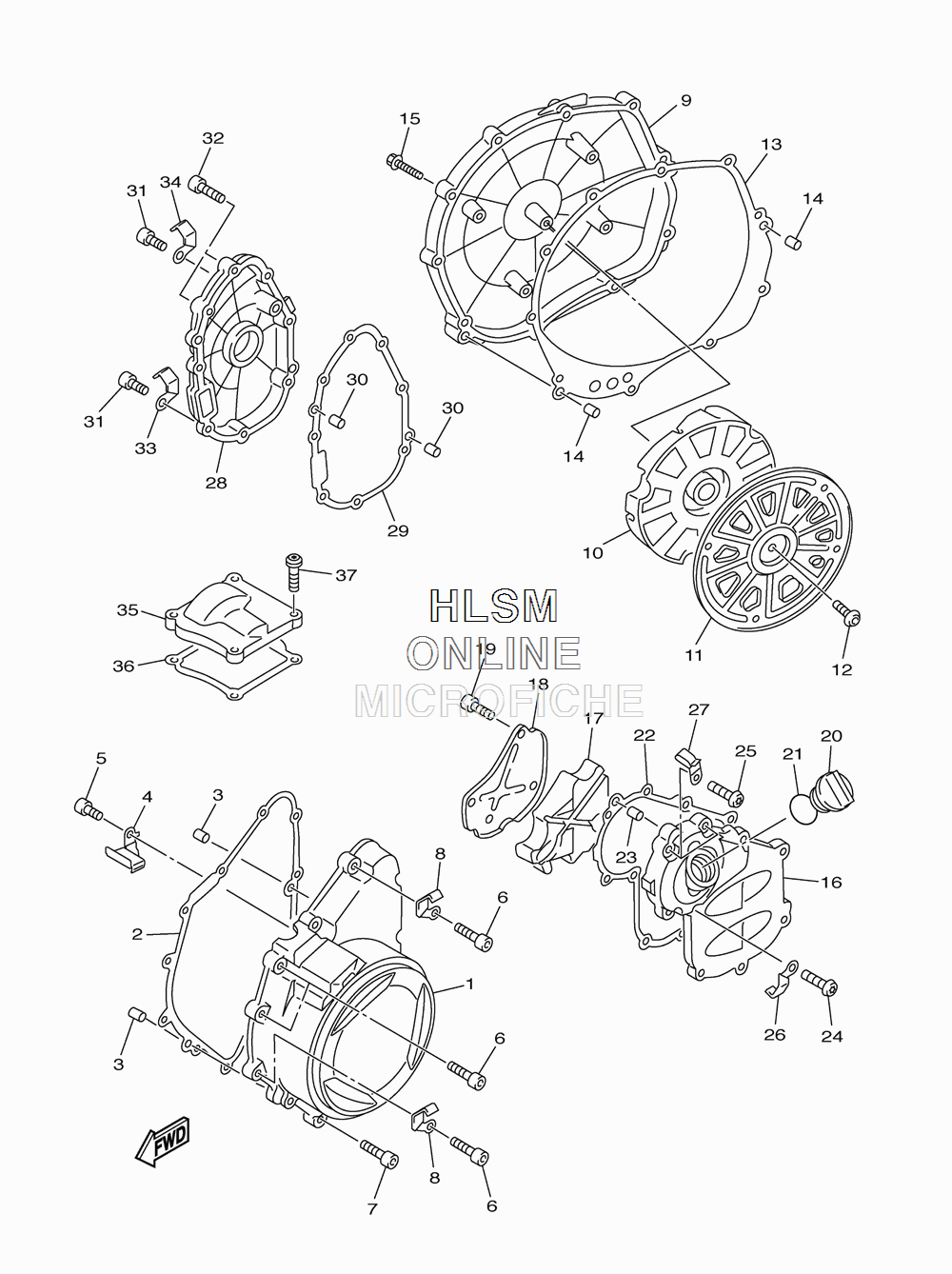

CRANKCASE COVER для Yamaha FJR1300A - 2013 года выпуска
-
№АртикулНазвание
-
11MC-15411-00-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
25JW-15451-11-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
399530-08012-00 PIN, DOWELPIN, DOWEL
-
45JW-15484-01-00 CLAMP 2CLAMP 2
-
590110-06227-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
691314-06025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
791314-06020-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
890462-08045-00 CLAMPCLAMP
-
91MC-15421-00-00 COVER, CRANKCASE 2COVER, CRANKCASE 2
-
105JW-15326-00-00 DAMPER 2DAMPER 2
-
115JW-15492-00-00 COVERCOVER
-
1290111-06064-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
135JW-15461-11-00 GASKET, CRANKCASE COVER 2GASKET, CRANKCASE COVER 2
-
1493608-21002-00 PIN, DOWELPIN, DOWEL
-
1590110-06388-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
161MC-15431-00-00 COVER, CRANKCASE 3COVER, CRANKCASE 3
-
175JW-15316-00-00 DAMPER 1DAMPER 1
-
185JW-15414-00-00 COVER, AIR CLEANERCOVER, AIR CLEANER
-
1990110-06182-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
203F9-15362-10-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
2193210-27194-00 O-RINGO-RING
-
225JW-15462-11-00 GASKET, CRANKCASE COVER 3GASKET, CRANKCASE COVER 3
-
2399530-08012-00 PIN, DOWELPIN, DOWEL
-
2490149-06149-00 SCREWSCREW
-
2590149-06147-00 SCREWSCREW
-
2690462-08045-00 CLAMPCLAMP
-
2790465-08122-00 CLAMPCLAMP
-
281MC-15416-00-00 COVER, OIL PUMPCOVER, OIL PUMP
-
295JW-15456-11-00 GASKET, OIL PUMP COVER 1GASKET, OIL PUMP COVER 1
-
3099530-08012-00 PIN, DOWELPIN, DOWEL
-
3191314-06020-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3291314-06025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3390462-08045-00 CLAMPCLAMP
-
3490465-08050-00 CLAMPCLAMP
-
351MC-15425-00-00 COVER, GENERATOR 2COVER, GENERATOR 2
-
365JW-15463-01-00 GASKET, COVER PINION 2GASKET, COVER PINION 2
-
3790149-06149-00 SCREWSCREW
