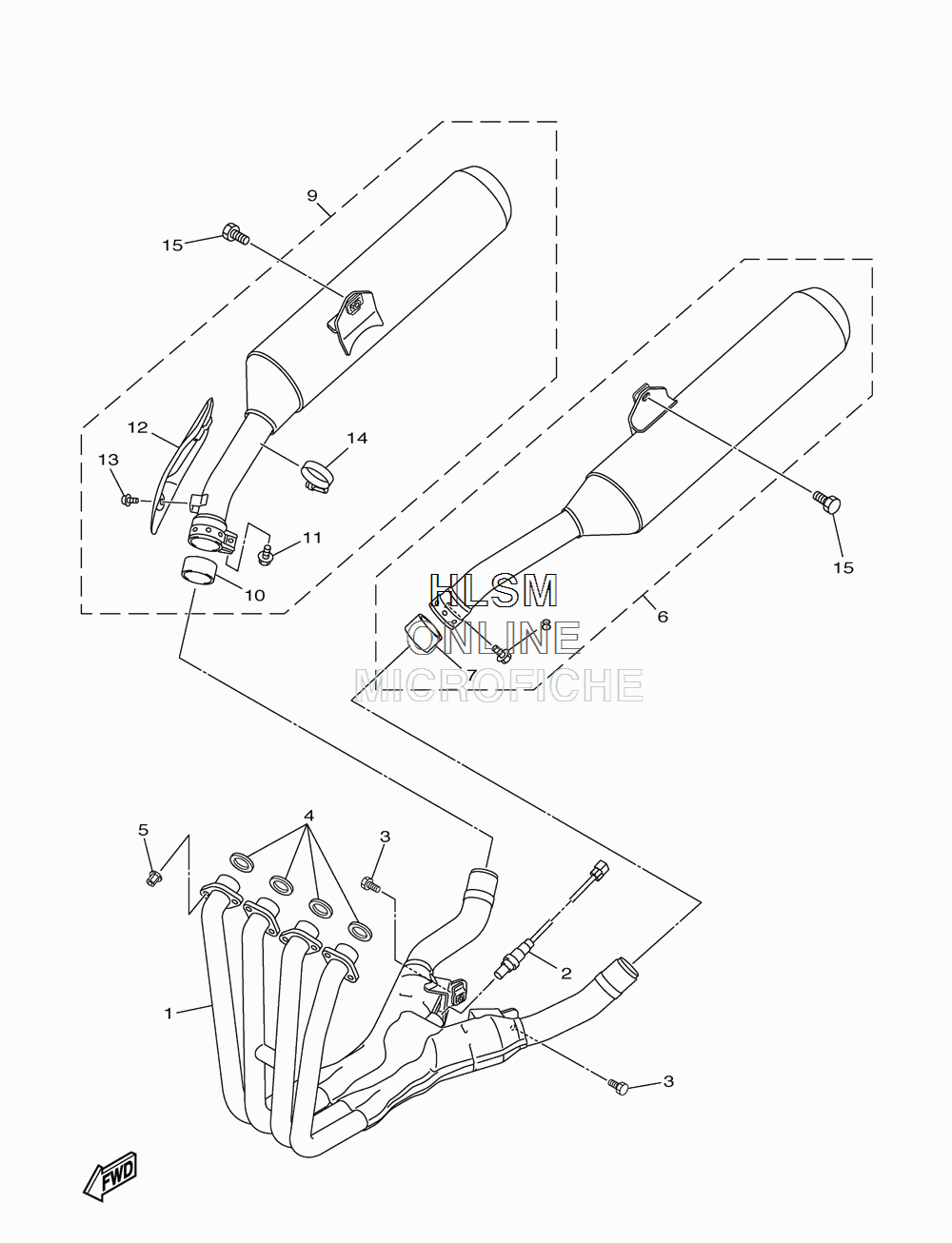

EXHAUST для Yamaha FJR1300A - 2013 года выпуска
-
№АртикулНазвание
-
11MC-14602-00-00 EXHAUST PIPE COMP.EXHAUST PIPE COMP.
-
24B5-8592A-00-00 SENSOR, OXYGENSENSOR, OXYGEN
-
390110-08099-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
44FM-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
590179-08673-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
61MC-14710-10-00 MUFFLER ASSY 1MUFFLER ASSY 1
-
73XW-14714-00-00 ...GASKET, MUFFLER...GASKET, MUFFLER
-
895814-08040-00 ...BOLT, FLANGE...BOLT, FLANGE
-
91MC-14720-10-00 MUFFLER ASSY 2MUFFLER ASSY 2
-
103XW-14714-00-00 ...GASKET, MUFFLER...GASKET, MUFFLER
-
1195814-08040-00 ...BOLT, FLANGE...BOLT, FLANGE
-
121MC-1471C-00-00 ...PROTECTOR ASSY 1...PROTECTOR ASSY 1
-
1390111-06060-00 ...BOLT, HEX. SOCKET BUTTON...BOLT, HEX. SOCKET BUTTON
-
1490450-45001-00 ...HOSE CLAMP ASSY...HOSE CLAMP ASSY
-
1595814-10040-00 BOLT, FLANGEBOLT, FLANGE
