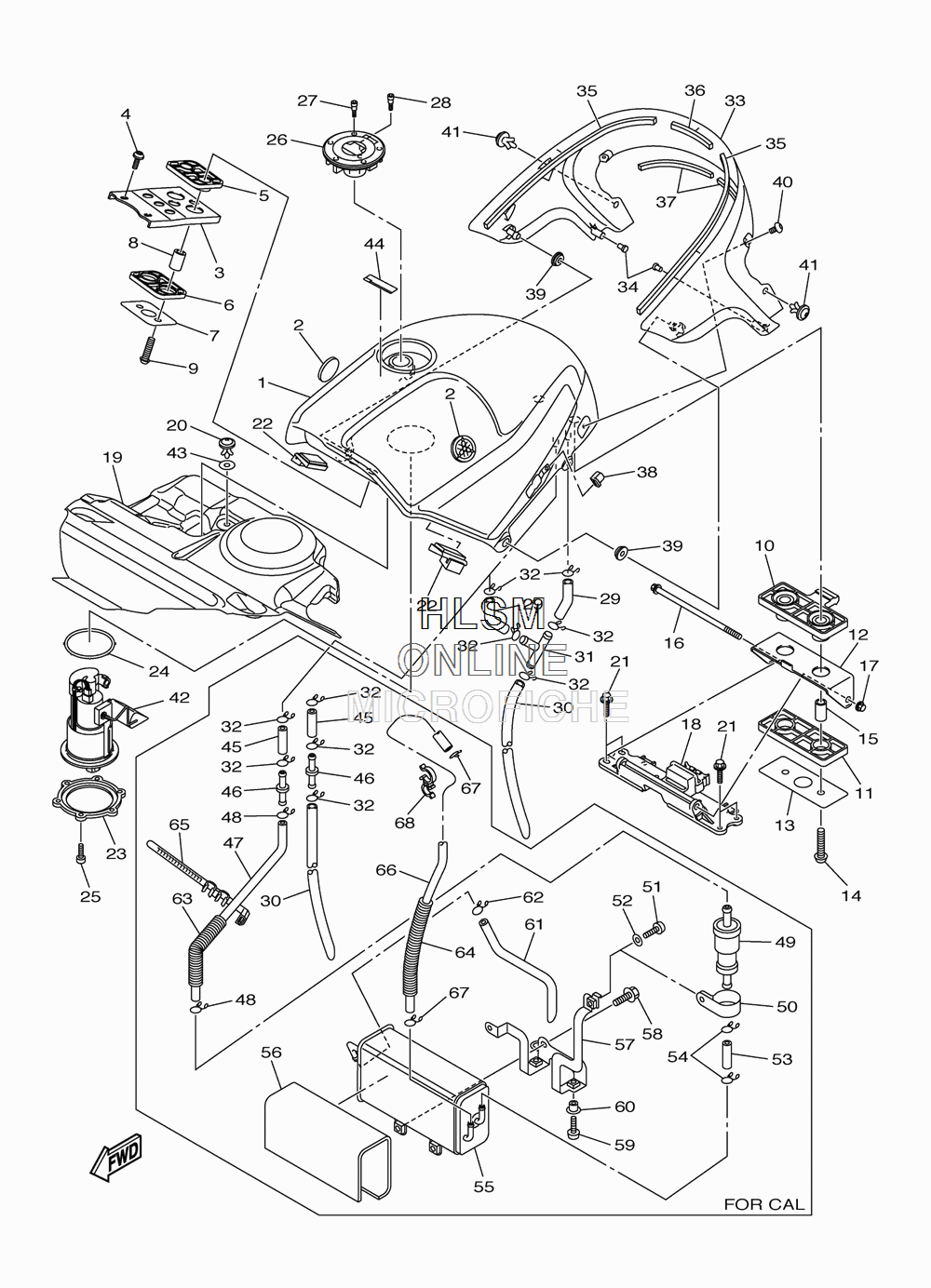

FUEL TANK для Yamaha FJR1300A - 2013 года выпуска
-
№АртикулНазвание
-
13P6-YK241-00-PB FUEL TANK COMP. (YNM5 - YELLOWISH GRAY)FUEL TANK COMP. (YNM5 - YELLOWISH GRAY)
-
21MC-2414B-00-00 EMBLEMEMBLEM
-
35JW-24191-00-00 BRACKET, FUEL TANK 1BRACKET, FUEL TANK 1
-
490149-06302-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
55JW-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
65JW-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
75JW-24187-00-00 WASHER, SPECIALWASHER, SPECIAL
-
890387-0813V-00 COLLARCOLLAR
-
992012-08035-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
103P6-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
115JW-24184-00-00 DAMPER, LOCATING 4DAMPER, LOCATING 4
-
125JW-24192-01-00 BRACKET, FUEL TANK 2BRACKET, FUEL TANK 2
-
135JW-24186-00-00 WASHER, SPECIALWASHER, SPECIAL
-
1492012-08035-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1590387-0813V-00 COLLARCOLLAR
-
1695812-08160-00 BOLT, FLANGEBOLT, FLANGE
-
1795702-08500-00 NUT, FLANGENUT, FLANGE
-
183P6-21348-00-00 BRACKT, TANK FITTINGBRACKT, TANK FITTING
-
191MC-2416F-00-00 INSULATOR, FUEL TANK 1INSULATOR, FUEL TANK 1
-
2090269-06081-00 RIVETRIVET
-
2195822-06020-00 BOLT, FLANGEBOLT, FLANGE
-
223P6-24184-00-00 DAMPER, LOCATING 4DAMPER, LOCATING 4
-
231MC-24491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
2419B-24486-01-00 O-RINGO-RING
-
2590110-05028-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2639P-24602-10-00 CAP ASSYCAP ASSY
-
2790110-05112-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2891312-05010-00 BOLTBOLT
-
2990445-11763-00 HOSE (L45)HOSE (L45)
-
3090445-11036-00 HOSEHOSE
-
3190413-07007-00 WAY 3WAY 3
-
3290467-100A1-00 CLIPCLIP
-
333P6-24129-00-P3 COVER, SIDE 1 FOR YNM5COVER, SIDE 1 FOR YNM5
-
3490338-06018-00 PLUGPLUG
-
353P6-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
363P6-2414J-00-00 DAMPER, PLATE 2DAMPER, PLATE 2
-
372D1-2414R-00-00 DAMPER, PLATE 6DAMPER, PLATE 6
-
385PW-2411J-01-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
3990480-01558-00 GROMMETGROMMET
-
4090111-05023-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4190269-06081-00 RIVETRIVET
-
425JW-13907-22-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
4390202-06008-00 WASHER, PLATEWASHER, PLATE
-
445GK-2118K-00-00 LABEL, CAUTIONLABEL, CAUTION
-
4590445-11066-00 HOSEHOSE
-
464XY-14568-00-00 JOINTJOINT
-
471MC-24312-00-00 PIPE 2PIPE 2
-
4890467-100A1-00 CLIPCLIP
-
495PX-24180-00-00 ROLL OVER VALVE ASSYROLL OVER VALVE ASSY
-
5090461-15139-00 CLAMPCLAMP
-
5198504-05012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
5292903-05600-00 WASHER, PLATEWASHER, PLATE
-
5390445-11065-00 HOSE (L30)HOSE (L30)
-
5490467-100A1-00 CLIPCLIP
-
553P6-24170-00-00 CANISTER ASSYCANISTER ASSY
-
563P6-2414E-00-00 SEAL 2SEAL 2
-
573P6-2419F-01-00 BRACKET, CANISTORBRACKET, CANISTOR
-
5895804-06012-00 BOLT, FLANGEBOLT, FLANGE
-
5992014-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
6090387-0603J-00 COLLARCOLLAR
-
613P6-24314-00-00 PIPE 4PIPE 4
-
6290467-100A1-00 CLIPCLIP
-
633P6-24327-00-00 PROTECTOR, PIPEPROTECTOR, PIPE
-
643P6-2432A-00-00 PROTECTOR, PIPE 2PROTECTOR, PIPE 2
-
6590464-10009-00 CLAMPCLAMP
-
661MC-1443J-00-00 PIPEPIPE
-
6790467-100A1-00 CLIPCLIP
-
6890464-28153-00 CLAMPCLAMP
