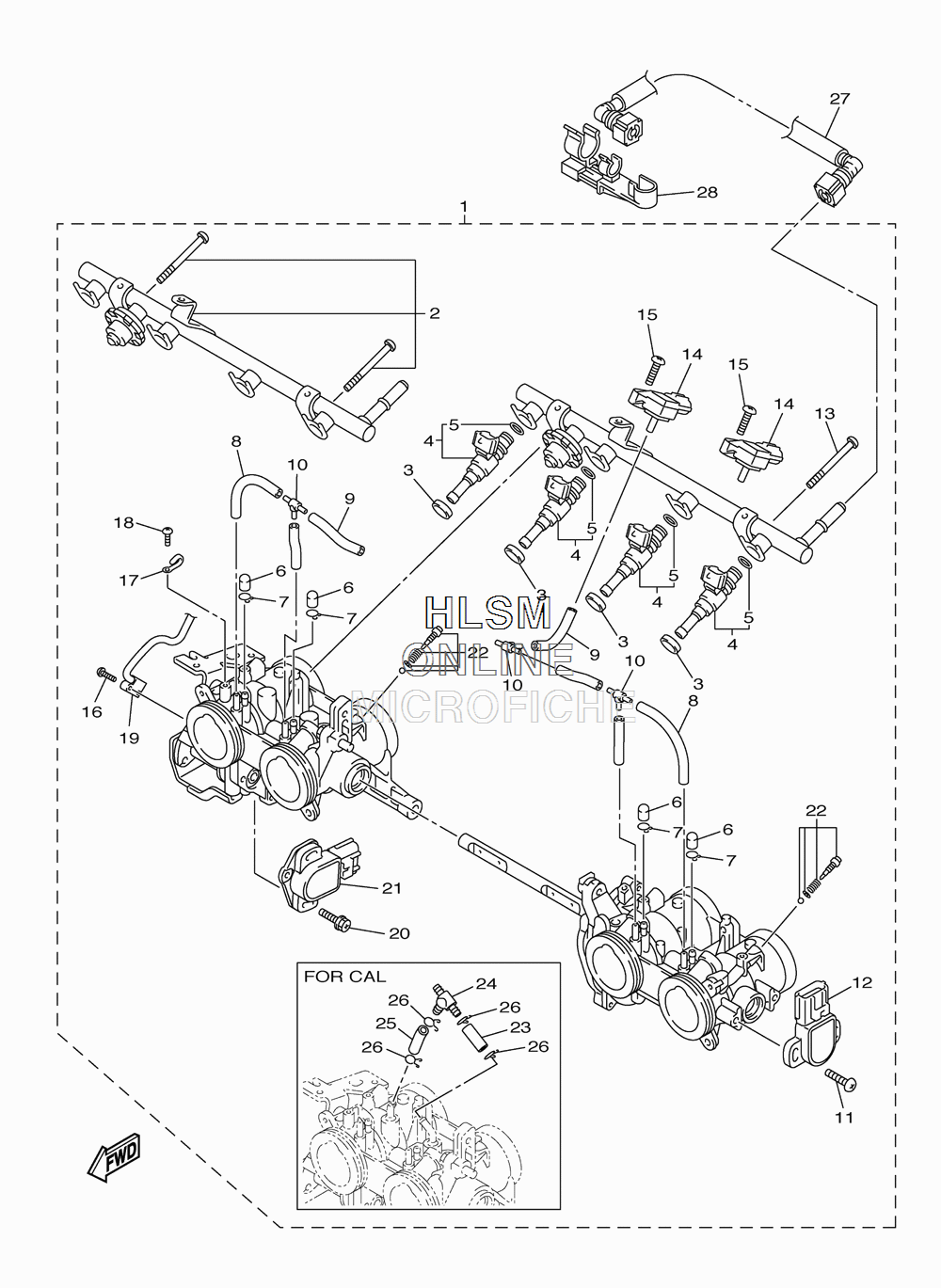

THROTTLE BODY ASSY. для Yamaha FJR1300A - 2013 года выпуска
-
№АртикулНазвание
-
11MC-13750-00-00 THROTTLE BODY ASSY (EXCEPT CALIF.)THROTTLE BODY ASSY (EXCEPT CALIF.)
-
11MC-13750-10-00 THROTTLE BODY ASSY (CALIF. ONLY)THROTTLE BODY ASSY (CALIF. ONLY)
-
21MC-1393A-00-00 ...PIPE, INL....PIPE, INL.
-
38FP-13556-00-00 ...RUBBER, INJECTOR...RUBBER, INJECTOR
-
48GC-13761-00-00 ...INJECTOR...INJECTOR
-
58GC-13769-00-00 ......O-RING......O-RING
-
6895-14169-00-00 ...CAP...CAP
-
78A7-14139-00-00 ...CLIP, PIPE...CLIP, PIPE
-
86BH-13532-00-00 ...HOSE, VACUUM SENSING 3...HOSE, VACUUM SENSING 3
-
96P2-13533-00-00 ...HOSE, VACUUM SENSING 4...HOSE, VACUUM SENSING 4
-
1068V-24376-00-00 ...PIPE, JOINT (T - FITTING)...PIPE, JOINT (T - FITTING)
-
118CC-14216-10-00 ...SCREW...SCREW
-
122S3-85885-00-00 ...THROTTLE SENSOR ASSY...THROTTLE SENSOR ASSY
-
1398502-06012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
142C0-82380-00-00 ...SENSOR, PRESSURE...SENSOR, PRESSURE
-
152C0-14216-00-00 ...SCREW...SCREW
-
161MC-14216-00-00 ...SCREW...SCREW
-
171MC-21335-00-00 ...CLAMP, WIRE HARNESS 1...CLAMP, WIRE HARNESS 1
-
1897602-03107-00 ...SCREW, PAN HEAD WITH WASHER...SCREW, PAN HEAD WITH WASHER
-
191MC-81860-00-00 ...SWITCH ASSY...SWITCH ASSY
-
205FL-14216-00-00 ...SCREW...SCREW
-
211MC-85884-00-00 ...ACCELERATOR SENSOR ASSY...ACCELERATOR SENSOR ASSY
-
222C0-14105-00-00 ...PILOT SCREW SET...PILOT SCREW SET
-
2314B-14465-00-00 ...PIPE (CALIF. ONLY)...PIPE (CALIF. ONLY)
-
2490413-06031-00 ...WAY 3 (CALIF. ONLY)...WAY 3 (CALIF. ONLY)
-
2514B-14466-00-00 ...PIPE (CALIF. ONLY)...PIPE (CALIF. ONLY)
-
2690467-100A1-00 ...CLIP (CALIF. ONLY)...CLIP (CALIF. ONLY)
-
275JW-13971-10-00 PIPE, FUEL 1PIPE, FUEL 1
-
2890464-16005-00 CLAMPCLAMP
