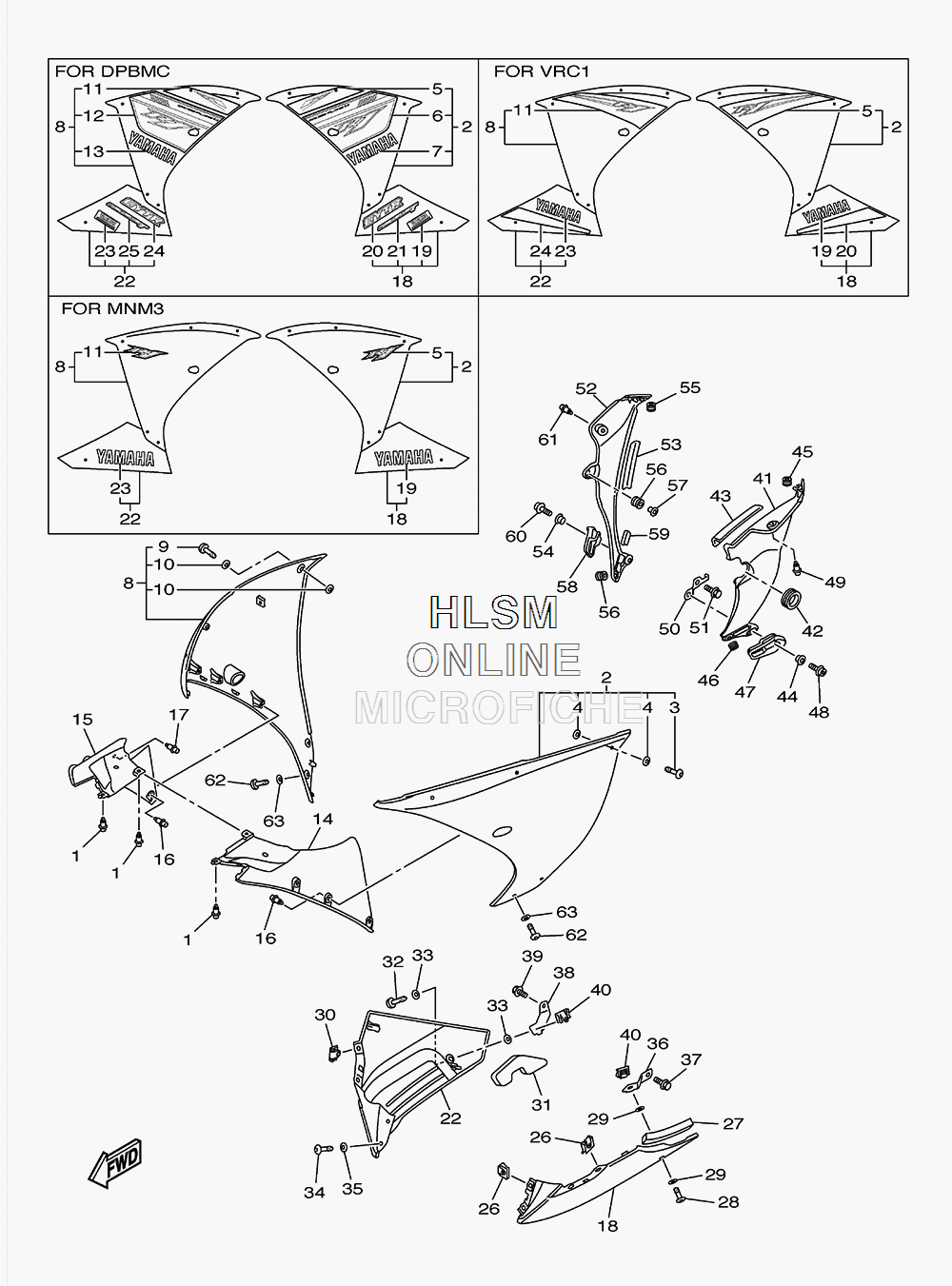

COWLING - SIDE PANESL для Yamaha YZF-R1 - 2013 года выпуска
-
№АртикулНазвание
-
190269-06008-00 RIVETRIVET
-
214B-W283U-1B-P3 PANEL ASSY 1 (SMX FOR DPBMC - PURPLISH BLUE)PANEL ASSY 1 (SMX FOR DPBMC - PURPLISH BLUE)
-
214B-W283U-1C-P3 PANEL ASSY 1 (SMX FOR VRC1 - VIVID RED)PANEL ASSY 1 (SMX FOR VRC1 - VIVID RED)
-
214B-W283U-D0-P0 PANEL ASSY 1 (MNM3 - MATTE GRAY METALLICPANEL ASSY 1 (MNM3 - MATTE GRAY METALLIC
-
314B-28386-00-00 ...HEAD...HEAD
-
42TK-21757-00-00 ...WASHER, SPECIAL 1...WASHER, SPECIAL 1
-
51KB-28391-70-00 ...GRAPHIC 1 (DPBMC - PURPLISH BLUE)...GRAPHIC 1 (DPBMC - PURPLISH BLUE)
-
51KB-2839B-00-00 ...EMBLEM 3D (MNM3 - MATTE GRAY METALLIC...EMBLEM 3D (MNM3 - MATTE GRAY METALLIC
-
51KB-28391-80-00 ...GRAPHIC 1 (VRC1 - VIVID RED)...GRAPHIC 1 (VRC1 - VIVID RED)
-
61KB-28393-40-00 ...GRAPHIC 3 (DPBMC - PURPLISH BLUE)...GRAPHIC 3 (DPBMC - PURPLISH BLUE)
-
71KB-2153B-10-00 ...EMBLEM, YAMAHA (DPBMC - PURPLISH BLUE)...EMBLEM, YAMAHA (DPBMC - PURPLISH BLUE)
-
814B-W283V-1C-P3 PANEL ASSY 2 (SMX FOR VRC1 - VIVID RED)PANEL ASSY 2 (SMX FOR VRC1 - VIVID RED)
-
814B-W283V-1B-P3 PANEL ASSY 2 (SMX FOR DPBMC - PURPLISH BLUE)PANEL ASSY 2 (SMX FOR DPBMC - PURPLISH BLUE)
-
814B-W283V-D0-P0 PANEL ASSY 2 (MNM3 - MATTE GRAY METALLICPANEL ASSY 2 (MNM3 - MATTE GRAY METALLIC
-
914B-28386-00-00 ...HEAD...HEAD
-
102TK-21757-00-00 ...WASHER, SPECIAL 1...WASHER, SPECIAL 1
-
111KB-2839B-00-00 ...EMBLEM 3D (MNM3 - MATTE GRAY METALLIC)...EMBLEM 3D (MNM3 - MATTE GRAY METALLIC)
-
111KB-28392-70-00 ...GRAPHIC 2 (DPBMC - PURPLISH BLUE)...GRAPHIC 2 (DPBMC - PURPLISH BLUE)
-
111KB-28392-80-00 ...GRAPHIC 2 (VRC1 - VIVID RED)...GRAPHIC 2 (VRC1 - VIVID RED)
-
121KB-28394-40-00 ...GRAPHIC 4 (DPBMC - PURPLISH BLUE)...GRAPHIC 4 (DPBMC - PURPLISH BLUE)
-
131KB-2153B-10-00 ...EMBLEM, YAMAHA (DPBMC - PURPLISH BLUE)...EMBLEM, YAMAHA (DPBMC - PURPLISH BLUE)
-
1414B-2836K-00-00 PANEL, INNER 1PANEL, INNER 1
-
1514B-2836L-00-00 PANEL, INNER 2PANEL, INNER 2
-
1690269-06008-00 RIVETRIVET
-
1790269-06008-00 RIVETRIVET
-
1814B-W2838-X0-P2 UNDER COVER COMP. 1 (BWC1 FOR DPBMC - PURPLISH BLUE)UNDER COVER COMP. 1 (BWC1 FOR DPBMC - PURPLISH BLUE)
-
1814B-W2838-Y0-P4 UNDER COVER COMP. 1 (SMX FOR VRC1 - VIVID RED)UNDER COVER COMP. 1 (SMX FOR VRC1 - VIVID RED)
-
1814B-W2838-V0-P0 UNDER COVER COMP. 1 (MNM3 - MATTE GRAY METALLIC)UNDER COVER COMP. 1 (MNM3 - MATTE GRAY METALLIC)
-
1999244-00200-00 ...EMBLEM, YAMAHA (MNM3 - MATTE GRAY METALLIC)...EMBLEM, YAMAHA (MNM3 - MATTE GRAY METALLIC)
-
1999247-00240-00 ...EMBLEM, YAMAHA (VRC1 - VIVID RED)...EMBLEM, YAMAHA (VRC1 - VIVID RED)
-
191KB-28328-20-00 ...EMBLEM (DPBMC - PURPLISH BLUE)...EMBLEM (DPBMC - PURPLISH BLUE)
-
201KB-2834C-10-00 ...EMBLEM, 1 (DPBMC - PURPLISH BLUE)...EMBLEM, 1 (DPBMC - PURPLISH BLUE)
-
201KB-283A1-20-00 ...GRAPHIC, UNDER COVER 1 (VRC1 - VIVID RED)...GRAPHIC, UNDER COVER 1 (VRC1 - VIVID RED)
-
211KB-2835C-10-00 ...EMBLEM 2 (DPBMC - PURPLISH BLUE)...EMBLEM 2 (DPBMC - PURPLISH BLUE)
-
2214B-W2839-X0-P2 UNDER COVER COMP. 2 (BWC1 FOR DPBMC - PURPLISH BLUE)UNDER COVER COMP. 2 (BWC1 FOR DPBMC - PURPLISH BLUE)
-
2214B-W2839-Y0-P4 UNDER COVER COMP. 2 (SMX FOR VRC1 - VIVID RED)UNDER COVER COMP. 2 (SMX FOR VRC1 - VIVID RED)
-
2214B-W2839-V0-P0 UNDER COVER COMP. 2 (MNM3 - MATTE GRAY METALLIC)UNDER COVER COMP. 2 (MNM3 - MATTE GRAY METALLIC)
-
2399244-00200-00 ...EMBLEM, YAMAHA (MNM3 - MATTE GRAY METALLIC)...EMBLEM, YAMAHA (MNM3 - MATTE GRAY METALLIC)
-
2399247-00240-00 ...EMBLEM, YAMAHA (VRC1 - VIVID RED)...EMBLEM, YAMAHA (VRC1 - VIVID RED)
-
231KB-28328-20-00 ...EMBLEM (DPBMC - PURPLISH BLUE)...EMBLEM (DPBMC - PURPLISH BLUE)
-
241KB-2834C-10-00 ...EMBLEM, 1 (DPBMC - PURPLISH BLUE)...EMBLEM, 1 (DPBMC - PURPLISH BLUE)
-
241KB-283A2-20-00 ...GRAPHIC, UNDER COVER 2 (VRC1 - VIVID RED)...GRAPHIC, UNDER COVER 2 (VRC1 - VIVID RED)
-
251KB-2835C-10-00 EMBLEM 2 (DPBMC - PURPLISH BLUE)EMBLEM 2 (DPBMC - PURPLISH BLUE)
-
265PW-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
2790520-30004-00 DAMPER, PLATEDAMPER, PLATE
-
2814B-28386-00-00 HEADHEAD
-
292TK-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
305PW-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
3114B-28371-10-00 DAMPERDAMPER
-
3214B-28386-00-00 HEADHEAD
-
332TK-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
3414B-28386-00-00 HEADHEAD
-
3590202-06005-00 WASHER, PLATEWASHER, PLATE
-
3614B-2836A-00-00 BRACKET 1BRACKET 1
-
3795802-06016-00 BOLT, FLANGEBOLT, FLANGE
-
3814B-2836E-00-00 BRACKET 2BRACKET 2
-
3990105-06174-00 BOLT, FLANGEBOLT, FLANGE
-
405PW-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
4114B-2836M-10-P0 PANEL, INNER 3 (MBL2 FOR MNM3 - MATTE GRAY METALLIC)PANEL, INNER 3 (MBL2 FOR MNM3 - MATTE GRAY METALLIC)
-
4114B-2836M-10-P1 PANEL, INNER 3 (BWC1 (FOR DPBMC - PURPLISH BLUE)PANEL, INNER 3 (BWC1 (FOR DPBMC - PURPLISH BLUE)
-
4114B-2836M-10-P7 PANEL, INNER 3 (VRC1 - VIVID RED)PANEL, INNER 3 (VRC1 - VIVID RED)
-
4214B-2836T-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
4390520-05011-00 DAMPER, PLATEDAMPER, PLATE
-
4490560-08251-00 SPACERSPACER
-
4590480-08006-00 GROMMETGROMMET
-
4690480-12596-00 GROMMETGROMMET
-
4714B-283C1-00-00 STOPPER, RUBBER 1STOPPER, RUBBER 1
-
4890110-06163-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
4990269-07077-00 RIVETRIVET
-
5014B-28321-00-00 STAY 1STAY 1
-
5195802-06012-00 BOLT, FLANGEBOLT, FLANGE
-
5214B-2836N-10-P0 PANEL, INNER 4 (MBL2 FOR MNM3 - MATTE GRAY METALLIC)PANEL, INNER 4 (MBL2 FOR MNM3 - MATTE GRAY METALLIC)
-
5214B-2836N-10-P1 PANEL, INNER 4 (BWC1 (FOR DPBMC - PURPLISH BLUE)PANEL, INNER 4 (BWC1 (FOR DPBMC - PURPLISH BLUE)
-
5214B-2836N-10-P7 PANEL, INNER 4 (VRC1 - VIVID RED)PANEL, INNER 4 (VRC1 - VIVID RED)
-
533NU-21732-00-00 SEAL 1SEAL 1
-
5490560-08251-00 SPACERSPACER
-
5590480-08006-00 GROMMETGROMMET
-
5690480-12596-00 GROMMETGROMMET
-
5790387-065J6-00 COLLARCOLLAR
-
5814B-283C2-00-00 STOPPER, RUBBER 2STOPPER, RUBBER 2
-
594B5-2847F-00-00 SEAL 5SEAL 5
-
6090110-06163-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
6190269-07077-00 RIVETRIVET
-
6214B-28386-00-00 HEADHEAD
-
6390202-06005-00 WASHER, PLATEWASHER, PLATE
