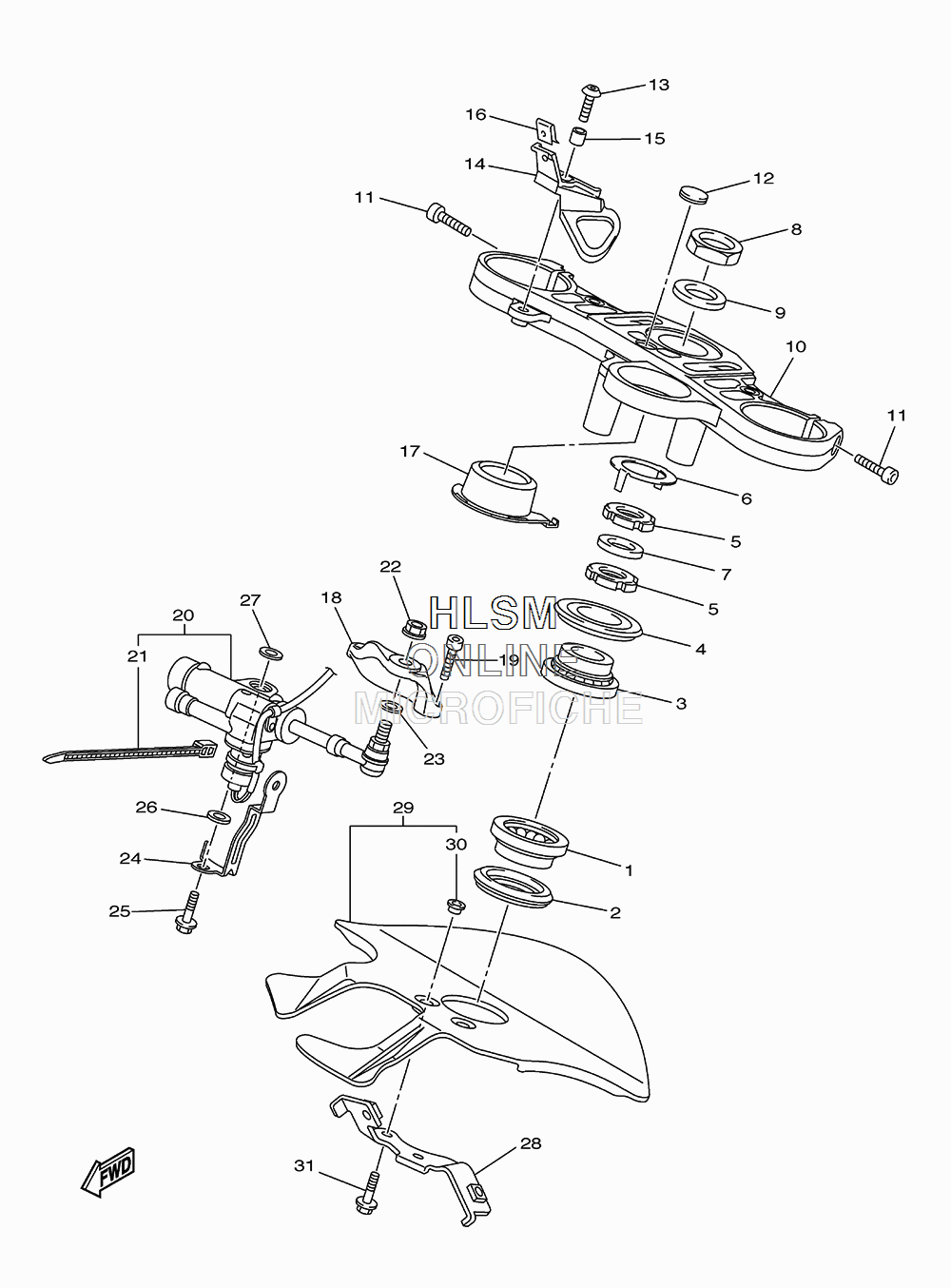

STEERING для Yamaha YZF-R1 - 2013 года выпуска
-
№АртикулНазвание
-
193399-99957-00 BEARINGBEARING
-
23FV-23462-00-00 SEAL, STEERINGSEAL, STEERING
-
393399-99932-00 BEARINGBEARING
-
44XV-23415-01-00 COVER, BALL RACE 1COVER, BALL RACE 1
-
590179-30691-00 NUTNUT
-
64XV-23418-00-00 WASHER, SPECIALWASHER, SPECIAL
-
790202-30235-00 WASHER, PLATEWASHER, PLATE
-
890170-28419-00 NUTNUT
-
990201-281U8-00 WASHER, PLATEWASHER, PLATE
-
101KB-23435-00-00 CROWN, HANDLECROWN, HANDLE
-
1191314-08030-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
125GT-2836B-00-00 TUNING FORK MARKTUNING FORK MARK
-
1390111-06041-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
145VY-26292-11-00 STAYSTAY
-
1590387-06057-00 COLLARCOLLAR
-
1690183-050A0-00 NUT, SPRINGNUT, SPRING
-
171KB-82552-00-00 CAP, SWITCHCAP, SWITCH
-
1814B-23495-00-00 STAY, DAMPERSTAY, DAMPER
-
1990110-06175-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2014B-23490-10-00 HANDLEBAR SHIMMY DAMPER ASSYHANDLEBAR SHIMMY DAMPER ASSY
-
2190464-20022-00 ...CLAMP...CLAMP
-
2295602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2390201-08M09-00 WASHER, PLATEWASHER, PLATE
-
2445B-2331E-00-00 GUIDE, CABLEGUIDE, CABLE
-
2590105-08108-00 BOLT, FLANGEBOLT, FLANGE
-
2690201-08676-00 WASHER, PLATEWASHER, PLATE
-
275VY-26398-00-00 WASHERWASHER
-
2814B-23377-20-00 BRACKET, HORNBRACKET, HORN
-
2914B-23808-00-00 STEERING, COVER ASSYSTEERING, COVER ASSY
-
3090560-06244-00 ...SPACER...SPACER
-
3190105-06557-00 BOLT, FLANGEBOLT, FLANGE
