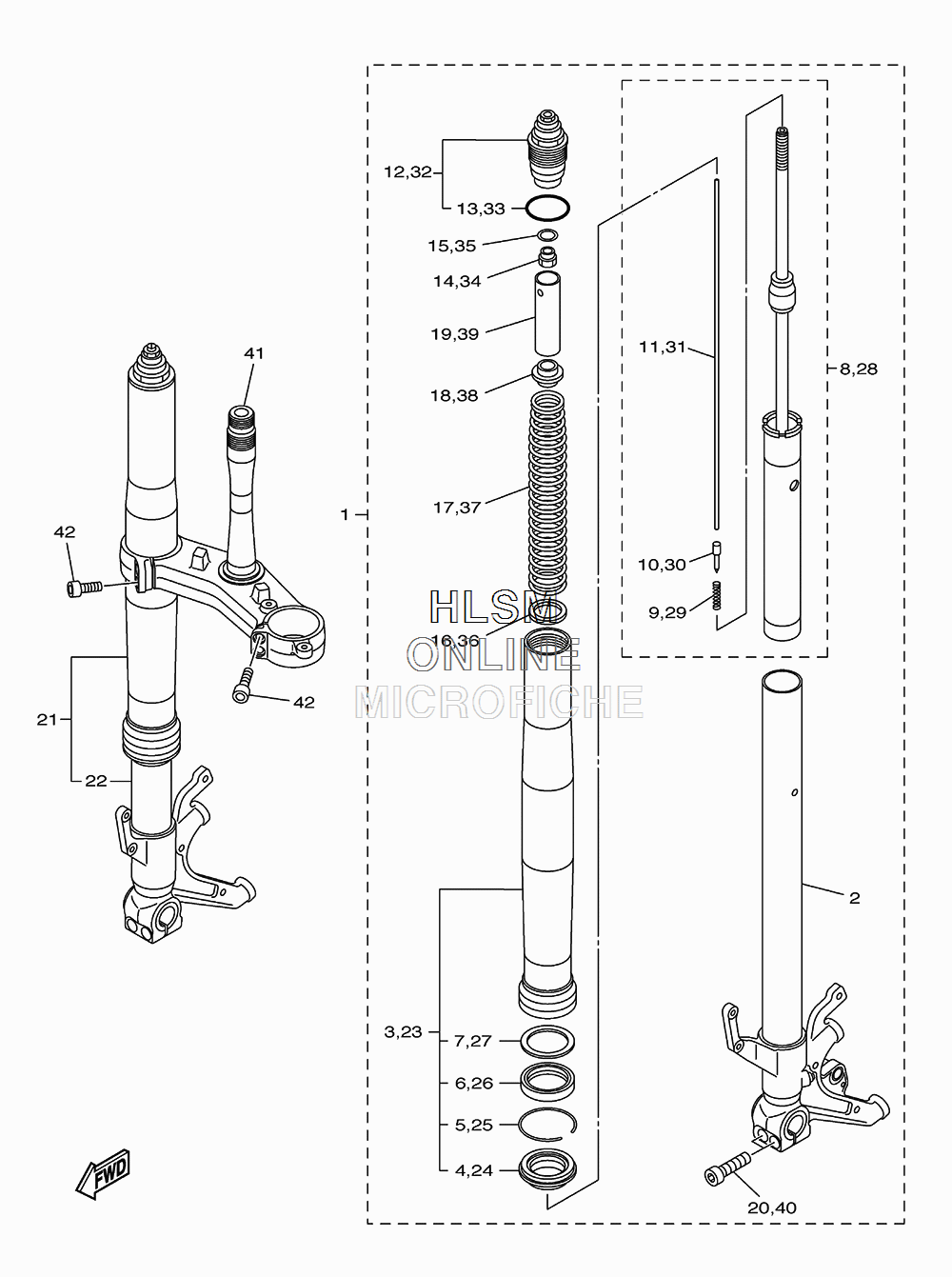

SUSPENSION - FRONT FORK для Yamaha YZF-R1 - 2013 года выпуска
-
№АртикулНазвание
-
11KB-23102-00-00 FRONT FORK ASSY (LEFT HAND) (DPBMC - PURPLISH BLUE)FRONT FORK ASSY (LEFT HAND) (DPBMC - PURPLISH BLUE)
-
11KB-23102-10-00 FRONT FORK ASSY (LEFT HAND) (VRC1, MNM3)FRONT FORK ASSY (LEFT HAND) (VRC1, MNM3)
-
21KB-23110-01-00 ...INNER TUBE COMP. 1...INNER TUBE COMP. 1
-
314B-23106-00-00 ...OUTER TUBE COMP. (DPBMC - PURPLISH BLUE)...OUTER TUBE COMP. (DPBMC - PURPLISH BLUE)
-
314B-23106-10-00 ...OUTER TUBE COMP. (VRC1, MNM3)...OUTER TUBE COMP. (VRC1, MNM3)
-
44TX-23144-01-00 ......SEAL, DUST......SEAL, DUST
-
54TX-23156-00-00 ......RING, SNAP......RING, SNAP
-
65VX-23145-00-00 ......OIL SEAL......OIL SEAL
-
74TX-23115-00-00 ......GUIDE, COVER UPPER......GUIDE, COVER UPPER
-
81KB-2315K-00-00 ...CYL. COMP., 2...CYL. COMP., 2
-
914B-2319M-00-00 ......SPRING, VALVE......SPRING, VALVE
-
1014B-23109-00-00 ......VALVE......VALVE
-
1114B-2318Y-00-00 ......PLUNGER......PLUNGER
-
1214B-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
1393210-41N50-00 ......O-RING......O-RING
-
1413S-23393-00-00 ...NUT, SPECIAL...NUT, SPECIAL
-
1513S-2332N-00-00 ...PLATE, VALVE 2...PLATE, VALVE 2
-
1690201-25291-00 ...WASHER, PLATE...WASHER, PLATE
-
1714B-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
1813S-23142-00-00 ...SEAT, SPRING UPPER...SEAT, SPRING UPPER
-
1914B-23118-00-00 ...SPACER...SPACER
-
2091314-08035-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
211KB-23103-10-00 FRONT FORK ASSY (RIGHT HAND) (VRC1, MNM3)FRONT FORK ASSY (RIGHT HAND) (VRC1, MNM3)
-
211KB-23103-00-00 FRONT FORK ASSY (RIGHT HAND) (DPBMC - PURPLISH BLUE)FRONT FORK ASSY (RIGHT HAND) (DPBMC - PURPLISH BLUE)
-
221KB-23120-01-00 ...INNER TUBE COMP. 2...INNER TUBE COMP. 2
-
2314B-23106-00-00 ...OUTER TUBE COMP. (DPBMC - PURPLISH BLUE)...OUTER TUBE COMP. (DPBMC - PURPLISH BLUE)
-
2314B-23106-10-00 ...OUTER TUBE COMP. (VRC1, MNM3)...OUTER TUBE COMP. (VRC1, MNM3)
-
244TX-23144-01-00 ......SEAL, DUST......SEAL, DUST
-
254TX-23156-00-00 ......RING, SNAP......RING, SNAP
-
265VX-23145-00-00 ......OIL SEAL......OIL SEAL
-
274TX-23115-00-00 ......GUIDE, COVER UPPER......GUIDE, COVER UPPER
-
281KB-2315L-00-00 ...CYL. COMP., 3...CYL. COMP., 3
-
2914B-2319M-00-00 ......SPRING, VALVE......SPRING, VALVE
-
3014B-23109-00-00 ......VALVE......VALVE
-
3114B-2318Y-00-00 ......PLUNGER......PLUNGER
-
3214B-2311J-00-00 ...BOLT, CAP 2...BOLT, CAP 2
-
3393210-41N50-00 ......O-RING......O-RING
-
3413S-23393-00-00 ...NUT, SPECIAL...NUT, SPECIAL
-
3513S-2332N-00-00 ...PLATE, VALVE 2...PLATE, VALVE 2
-
3690201-25291-00 ...WASHER, PLATE...WASHER, PLATE
-
3714B-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
3813S-23142-00-00 ...SEAT, SPRING UPPER...SEAT, SPRING UPPER
-
3914B-23118-00-00 ...SPACER...SPACER
-
4091314-08035-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
4114B-23340-10-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
4291314-08030-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
