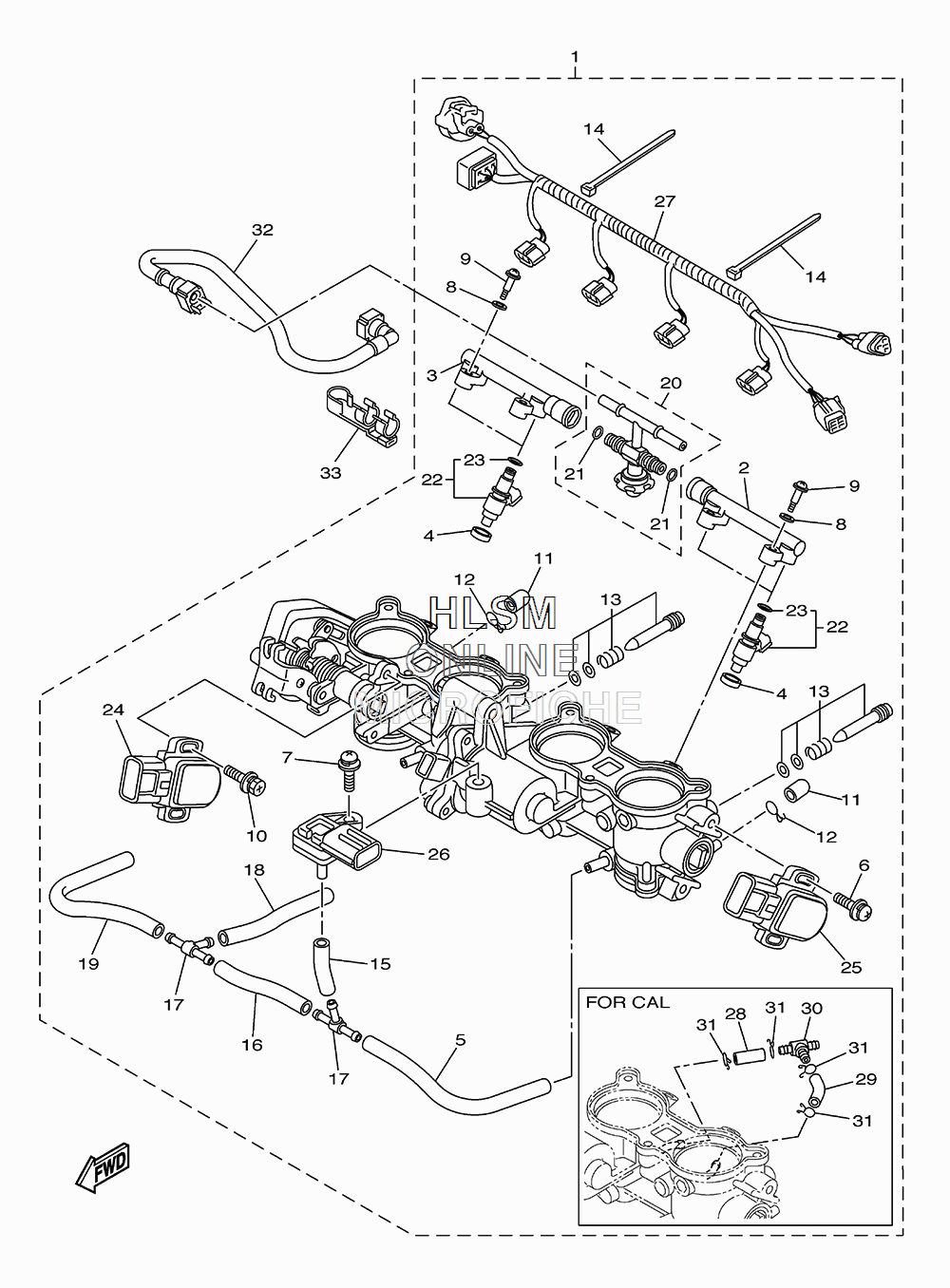

THROTTLE BODY ASSY. для Yamaha YZF-R1 - 2013 года выпуска
-
№АртикулНазвание
-
11KB-13750-00-00 THROTTLE BODY ASSY (EXCEPT CALIF.)THROTTLE BODY ASSY (EXCEPT CALIF.)
-
11KB-13750-10-00 THROTTLE BODY ASSY (CALIF. ONLY)THROTTLE BODY ASSY (CALIF. ONLY)
-
214B-1393A-00-00 ...PIPE, INL....PIPE, INL.
-
314B-1393B-00-00 ...PIPE, INL. 2...PIPE, INL. 2
-
48FP-13556-00-00 ...RUBBER, INJECTOR...RUBBER, INJECTOR
-
55PW-14396-00-00 ...PIPE...PIPE
-
68CC-14216-10-00 ...SCREW...SCREW
-
72C0-14216-00-00 ...SCREW...SCREW
-
8363-14198-00-00 ...GASKET...GASKET
-
914B-13573-00-00 ...BOLT 1...BOLT 1
-
105FL-14216-00-00 ...SCREW...SCREW
-
11895-14169-00-00 ...CAP...CAP
-
128A7-14139-00-00 ...CLIP, PIPE...CLIP, PIPE
-
132C0-14105-00-00 ...PILOT SCREW SET...PILOT SCREW SET
-
144KM-14137-00-00 ...CLIP...CLIP
-
155FL-14348-10-00 ...PIPE 1...PIPE 1
-
165JW-24311-00-00 ...PIPE, FUEL 1...PIPE, FUEL 1
-
1768V-24376-00-00 ...PIPE, JOINT 1...PIPE, JOINT 1
-
185JW-14348-00-00 ...PIPE 1...PIPE 1
-
195PW-14349-00-00 ...PIPE...PIPE
-
2014B-13795-00-00 ...JOINT, THROTTLE BODY 1...JOINT, THROTTLE BODY 1
-
2139P-14147-00-00 ......O-RING......O-RING
-
225S7-13761-00-00 ...INJECTOR...INJECTOR
-
235PS-14147-00-00 ......O-RING......O-RING
-
2413S-85884-00-00 ...ACCELERATOR SENSOR ASSY...ACCELERATOR SENSOR ASSY
-
2513S-85885-00-00 ...THROTTLE SENSOR ASSY...THROTTLE SENSOR ASSY
-
262C0-82380-00-00 ...SENSOR, PRESSURE...SENSOR, PRESSURE
-
271KB-82386-00-00 ...EXTENSION, WIRE HARNESS...EXTENSION, WIRE HARNESS
-
2814B-14465-00-00 ...PIPE (CALIF. ONLY)...PIPE (CALIF. ONLY)
-
2914B-14466-00-00 ...PIPE (CALIF. ONLY)...PIPE (CALIF. ONLY)
-
3090413-06031-00 ...WAY 3 (CALIF. ONLY)...WAY 3 (CALIF. ONLY)
-
3190467-100A1-00 ...CLIP (CALIF. ONLY)...CLIP (CALIF. ONLY)
-
3214B-13971-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
3390464-16005-00 CLAMPCLAMP
