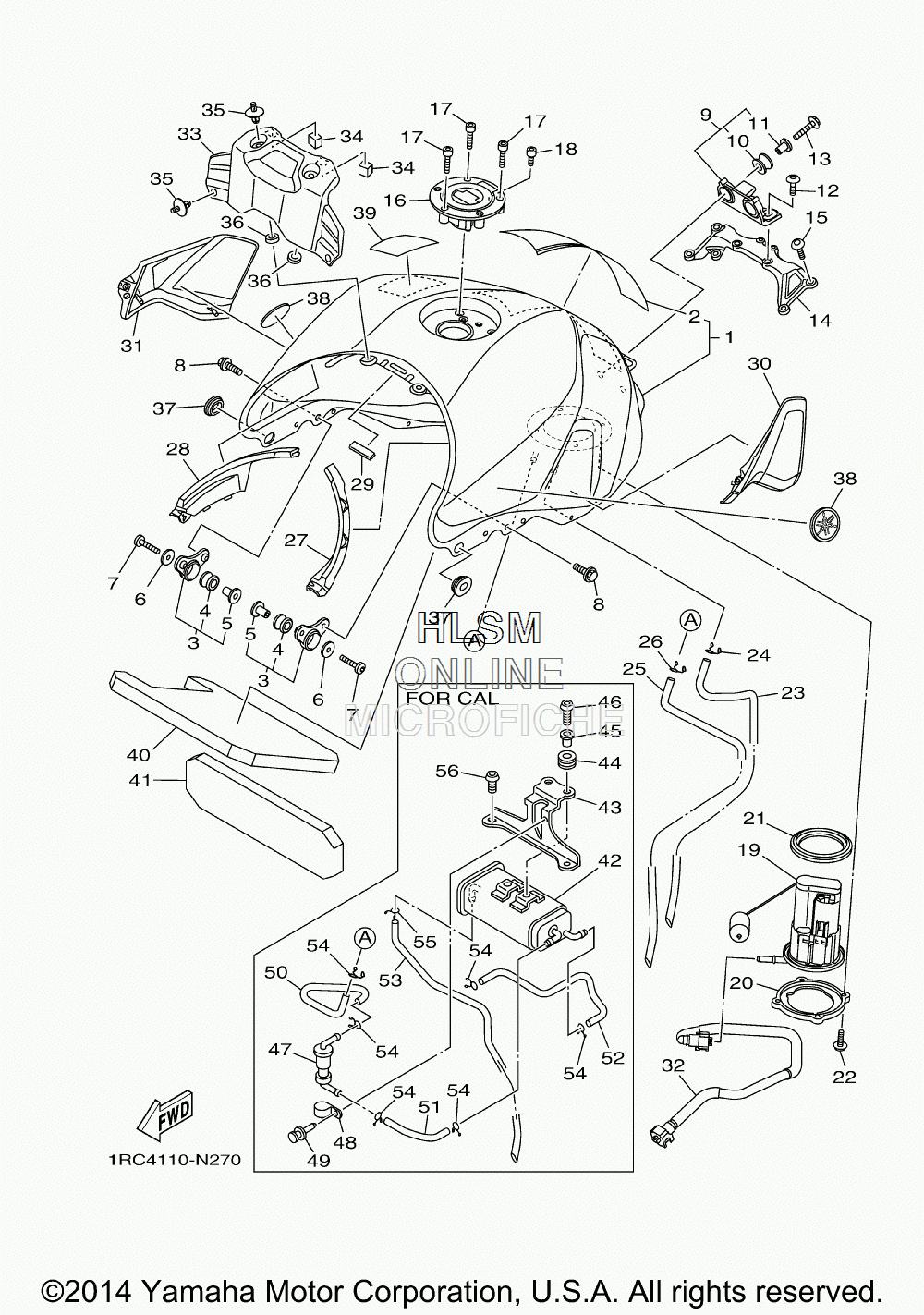

FUEL TANK для Yamaha FZ-09 - 2014 года выпуска
-
№АртикулНазвание
-
11RC-YK241-00-P1 FUEL TANK COMP. FOR DNMNFUEL TANK COMP. FOR DNMN
-
11RC-Y2410-00-03 FUEL TANK COMP. FOR VRC1FUEL TANK COMP. FOR VRC1
-
21RC-24244-20-00 ......GRAPHIC, FUEL TANK 1 FOR VRC1......GRAPHIC, FUEL TANK 1 FOR VRC1
-
323P-24104-00-00 TANK BRACKET ASSYTANK BRACKET ASSY
-
490480-18008-00 ...GROMMET...GROMMET
-
590387-06266-00 ...COLLAR...COLLAR
-
690201-06072-00 WASHER, PLATEWASHER, PLATE
-
792012-06035-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
890119-06200-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
91RC-24104-00-00 TANK BRACKET ASSYTANK BRACKET ASSY
-
103D7-24339-00-00 ...GROMMET...GROMMET
-
1190387-06136-00 ...COLLAR...COLLAR
-
1290111-06136-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1395812-06025-00 BOLT, FLANGEBOLT, FLANGE
-
141RC-2413Y-00-00 BRACKET, TANK FITTINGBRACKET, TANK FITTING
-
1592017-06020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1639P-24602-10-00 CAP ASSYCAP ASSY
-
1790110-05112-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1891312-05010-00 BOLTBOLT
-
191RC-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
201RC-24491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
211RC-24486-00-00 O-RINGO-RING
-
2290110-05028-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
231RC-24315-00-00 PIPE 5PIPE 5
-
2490467-09006-00 CLIPCLIP
-
251RC-24316-00-00 PIPE 6 (EXCEPT CALIF)PIPE 6 (EXCEPT CALIF)
-
2690467-09006-00 CLIP (EXCEPT CALIF)CLIP (EXCEPT CALIF)
-
271RC-2418B-01-00 MOLE, FUEL TANK 1MOLE, FUEL TANK 1
-
281RC-2419B-01-00 MOLE, FUEL TANK 2MOLE, FUEL TANK 2
-
293VD-24188-00-00 MOLD, FUEL TANKMOLD, FUEL TANK
-
301RC-24106-00-00 TANK SIDE COVER ASSY 1TANK SIDE COVER ASSY 1
-
311RC-24108-00-00 TANK SIDE COVER ASSY 2TANK SIDE COVER ASSY 2
-
321RC-13971-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
331RC-241B1-00-00 COVER, TANKCOVER, TANK
-
3490520-15012-00 DAMPER, PLATEDAMPER, PLATE
-
3590269-07077-00 RIVETRIVET
-
365SL-84753-00-00 DAMPERDAMPER
-
3790480-01558-00 GROMMETGROMMET
-
381RC-2413B-00-00 EMBLEMEMBLEM
-
394C8-2118K-00-00 LABEL, CAUTIONLABEL, CAUTION
-
401RC-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
411RC-2414J-00-00 DAMPER, PLATE 2DAMPER, PLATE 2
-
421RC-24170-00-00 CANISTER ASSY (CALIF ONLY)CANISTER ASSY (CALIF ONLY)
-
431RC-2419F-00-00 BRACKET, CANISTOR (CALIF ONLY)BRACKET, CANISTOR (CALIF ONLY)
-
4490480-13018-00 GROMMET (CALIF ONLY)GROMMET (CALIF ONLY)
-
4590387-062L2-00 COLLAR (CALIF ONLY)COLLAR (CALIF ONLY)
-
4692012-06016-00 BOLT, BUTTON HEAD (CALIF ONLY)BOLT, BUTTON HEAD (CALIF ONLY)
-
472C0-24180-00-00 ROLL OVER VALVE ASSY (CALIF ONLY)ROLL OVER VALVE ASSY (CALIF ONLY)
-
4890461-15139-00 CLAMP (CALIF ONLY)CLAMP (CALIF ONLY)
-
4990269-05049-00 RIVET (CALIF ONLY)RIVET (CALIF ONLY)
-
501RC-24312-00-00 PIPE 2 (CALIF ONLY)PIPE 2 (CALIF ONLY)
-
511RC-24313-00-00 PIPE 3 (CALIF ONLY)PIPE 3 (CALIF ONLY)
-
521RC-24314-00-00 PIPE 4 (CALIF ONLY)PIPE 4 (CALIF ONLY)
-
531RC-24321-00-00 PIPE 10 (CALIF ONLY)PIPE 10 (CALIF ONLY)
-
5490467-09006-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
5590467-10008-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
5692012-06012-00 BOLT, BUTTON HEAD (CALIF ONLY)BOLT, BUTTON HEAD (CALIF ONLY)
