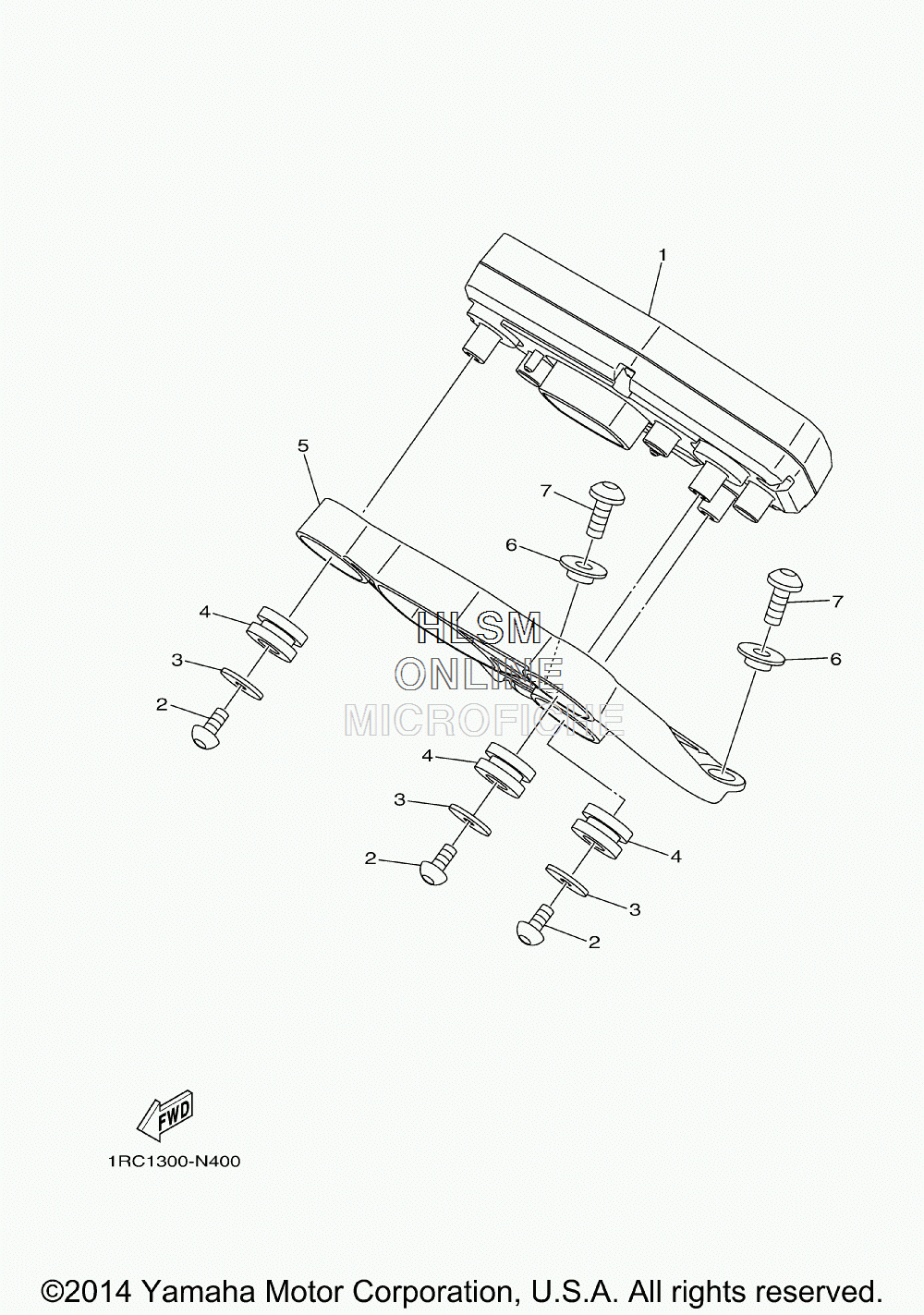

INSTRUMENT PANEL для Yamaha FZ-09 - 2014 года выпуска
-
№АртикулНазвание
-
11RC-83500-20-00 METER ASSYMETER ASSY
-
290167-05080-00 SCREW, TAPPINGSCREW, TAPPING
-
390201-05036-00 WASHER, PLATEWASHER, PLATE
-
44XV-83513-00-00 DAMPERDAMPER
-
51RC-83559-00-00 COVER, METERCOVER, METER
-
690387-07717-00 COLLARCOLLAR
-
790111-06038-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
Все узлы модели:
- AIR CLEANER W/ INTAKE
- AIR INDUCTION SYSTEM
- BRAKE - FRONT CALIPER
- BRAKE - FRONT MASTER CYLINDER
- BRAKE - REAR CALIPER
- BRAKE - REAR MASTER CYLINDER
- CAMSHAFT W/ CHAIN
- CLUTCH
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT - PISTON
- CYLINDER HEAD
- ELECTRICAL
- ELECTRICAL 2
- EXHAUST
- FENDER - FRONT / REAR
- FLASHER LIGHT
- FRAME
- FUEL TANK
- GENERATOR
- HANDLEBAR W/ CABLES
- HANDLEBAR W/ SWITCHES - LEVERS
- HEADLIGHT
- • INSTRUMENT PANEL
- MODEL INFO - MANUALS
- OIL CLEANER
- OIL PUMP
- RADIATOR
- SEAT
- SHIFT CAM W/ FORK
- SHIFT SHAFT
- SIDE COVER
- STAND W/ FOOTREST - BRAKE PEDAL
- STARTER
- STARTING MOTOR
- STEERING
- SUSPENSION - FRONT FORK
- SUSPENSION - REAR ARM
- SUSPENSION - REAR SHOCK ABSORBER
- TAILLIGHT
- THROTTLE BODY ASSY.
- TRANSMISSION
- VALVE
- WATER PUMP
- WHEEL - FRONT
- WHEEL - REAR
