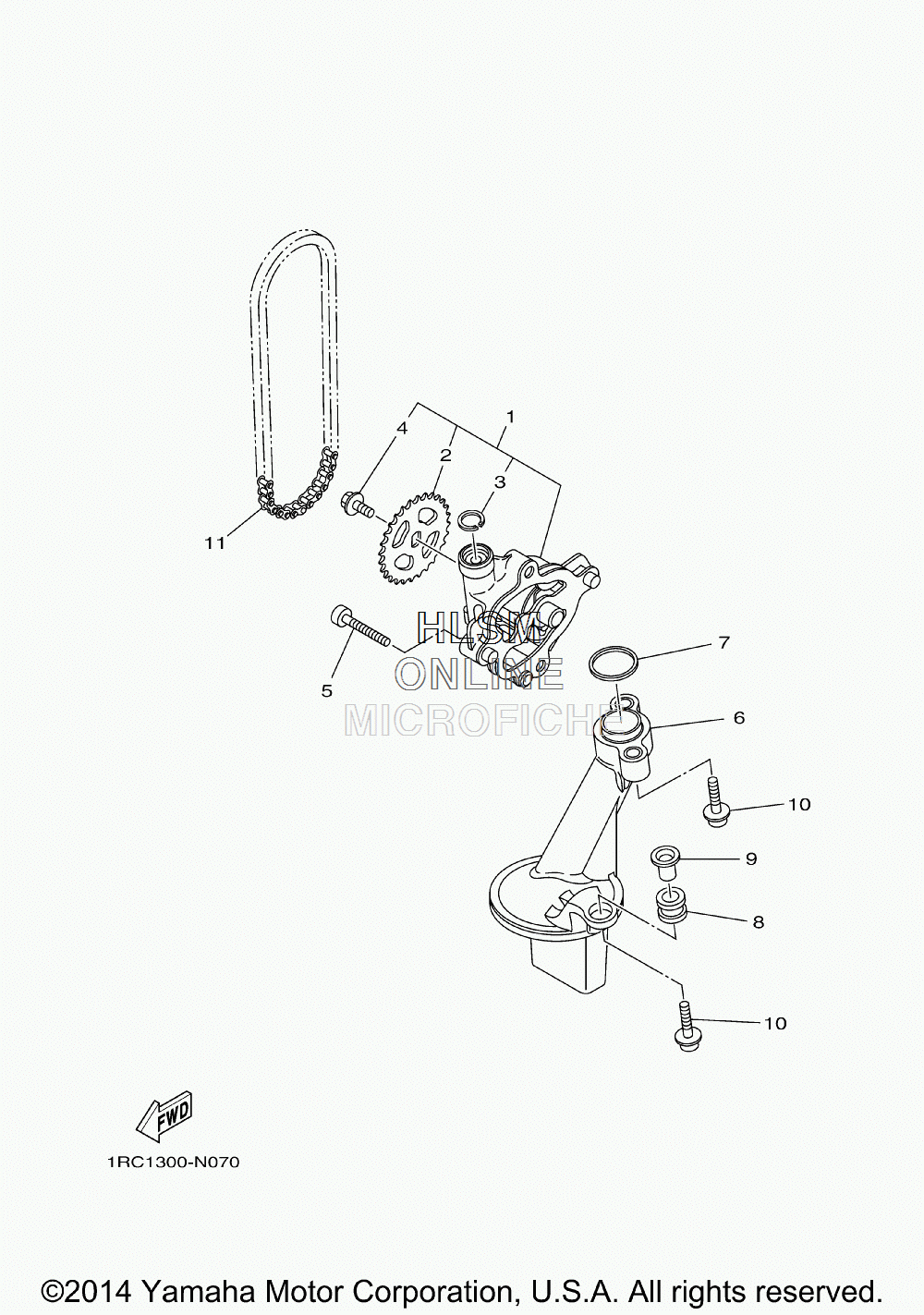

OIL PUMP для Yamaha FZ-09 - 2014 года выпуска
-
№АртикулНазвание
-
11RC-13300-00-00 OIL PUMP ASSYOIL PUMP ASSY
-
21RC-13355-00-00 ...SPROCKET, DRIVEN...SPROCKET, DRIVEN
-
399009-15500-00 ...CIRCLIP...CIRCLIP
-
490105-06066-00 ...BOLT, FLANGE...BOLT, FLANGE
-
591312-06035-00 BOLTBOLT
-
61RC-13410-00-00 STRAINER HOUSING ASSYSTRAINER HOUSING ASSY
-
793210-22001-00 O-RINGO-RING
-
890480-13010-00 GROMMETGROMMET
-
95VY-13117-10-00 COLLAR, DISTANCECOLLAR, DISTANCE
-
1090110-06173-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1194581-79066-00 CHAINCHAIN
