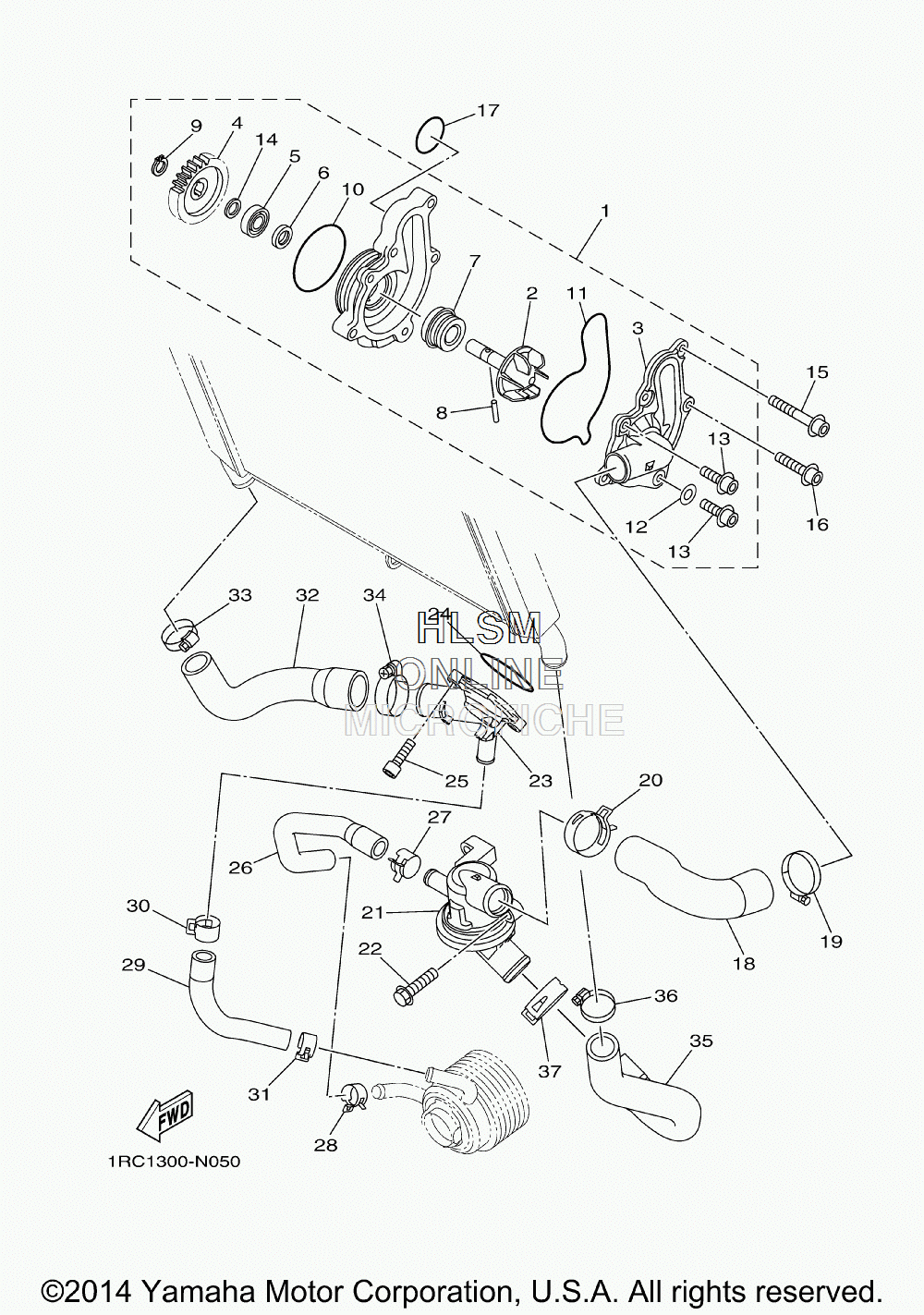

WATER PUMP для Yamaha FZ-09 - 2014 года выпуска
-
№АртикулНазвание
-
11RC-12420-00-00 WATER PUMP ASSYWATER PUMP ASSY
-
21RC-12450-00-00 ...IMPELLER SHAFT ASSY...IMPELLER SHAFT ASSY
-
31RC-12422-00-00 ...COVER, HOUSING...COVER, HOUSING
-
41RC-12459-00-00 ...GEAR, IMPELLER SHAFT...GEAR, IMPELLER SHAFT
-
593306-00106-00 ...BEARING...BEARING
-
693101-12173-00 ...OIL SEAL S-TYPE...OIL SEAL S-TYPE
-
75VK-12438-00-00 ...SEAL, MECHANICAL...SEAL, MECHANICAL
-
893603-16219-00 ...PIN, DOWEL...PIN, DOWEL
-
999009-12400-00 ...CIRCLIP...CIRCLIP
-
1093210-61750-00 ...O-RING...O-RING
-
111RC-12439-00-00 ...O-RING...O-RING
-
1290430-06014-00 ...GASKET...GASKET
-
1390110-06396-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
1490201-12541-00 ...WASHER, PLATE...WASHER, PLATE
-
1590110-06394-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1690110-06388-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1793210-30694-00 O-RINGO-RING
-
181RC-12577-00-00 HOSE 2HOSE 2
-
1990450-38040-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2090467-310A0-00 CLIPCLIP
-
211RC-12410-00-00 THERMOSTAT ASSYTHERMOSTAT ASSY
-
2295822-06025-00 BOLT, FLANGEBOLT, FLANGE
-
231RC-12469-00-00 JOINT 1JOINT 1
-
2493210-46044-00 O-RINGO-RING
-
2590110-06274-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
261RC-12578-00-00 HOSE 3HOSE 3
-
2790467-200A0-00 CLIPCLIP
-
2890467-17128-00 CLIPCLIP
-
291RC-12579-00-00 HOSE 4HOSE 4
-
3090467-200A0-00 CLIPCLIP
-
3190467-17128-00 CLIPCLIP
-
321RC-12588-00-00 HOSE 5HOSE 5
-
3390450-32003-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
3490450-38040-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
351RC-12576-00-00 HOSE 1HOSE 1
-
3690450-32003-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
3790467-310A0-00 CLIPCLIP
