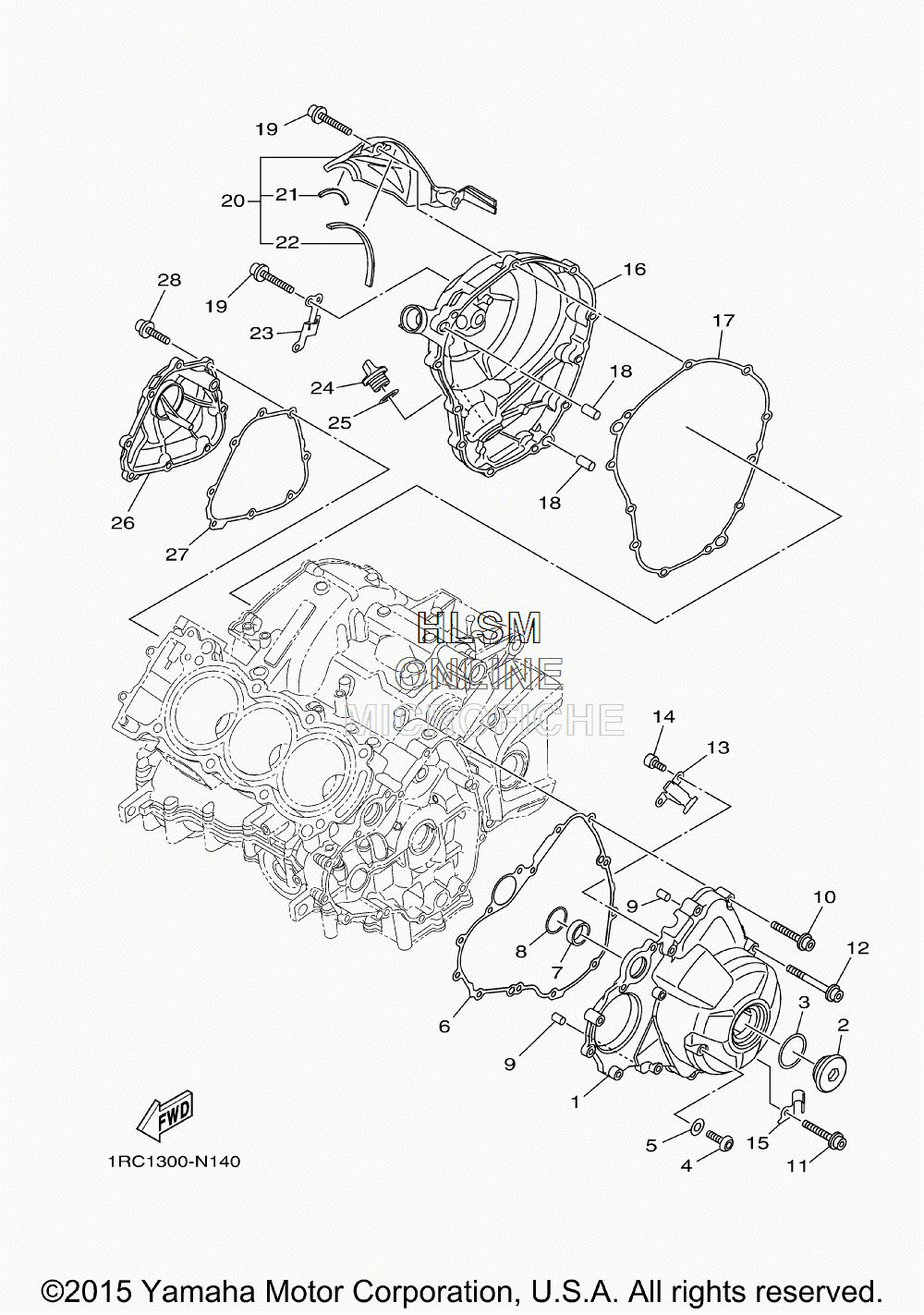

CRANKCASE COVER для Yamaha FZ-09 - 2015 года выпуска
-
№АртикулНазвание
-
11RC-15411-00-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
290340-36005-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
393210-357A3-00 O-RINGO-RING
-
492017-08012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
590430-08143-00 GASKETGASKET
-
61RC-15451-00-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
71RC-12564-00-00 PIPE, WATERPIPE, WATER
-
893210-28543-00 O-RINGO-RING
-
999530-08012-00 PIN, DOWELPIN, DOWEL
-
1090110-06388-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1190110-06389-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1290110-06394-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
131RC-15484-00-00 CLAMP 2CLAMP 2
-
1490110-06168-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
151RC-15199-00-00 BRACKETBRACKET
-
161RC-15421-00-00 COVER, CRANKCASE 2COVER, CRANKCASE 2
-
171RC-15461-00-00 GASKET, CRANKCASE COVER 2GASKET, CRANKCASE COVER 2
-
1893610-20189-00 PIN, DOWELPIN, DOWEL
-
1990110-06388-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
201RC-15490-00-00 COVER ASSYCOVER ASSY
-
211RC-15789-00-00 ...DAMPER...DAMPER
-
2290520-03014-00 ...DAMPER, PLATE...DAMPER, PLATE
-
231RC-15191-00-00 PLATEPLATE
-
245GJ-15363-10-00 PLUG, OILPLUG, OIL
-
2593210-19123-00 O-RINGO-RING
-
261RC-15416-00-00 COVER, OIL PUMPCOVER, OIL PUMP
-
271RC-15456-00-00 GASKET, OIL PUMP COVER 1GASKET, OIL PUMP COVER 1
-
2890110-06396-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
