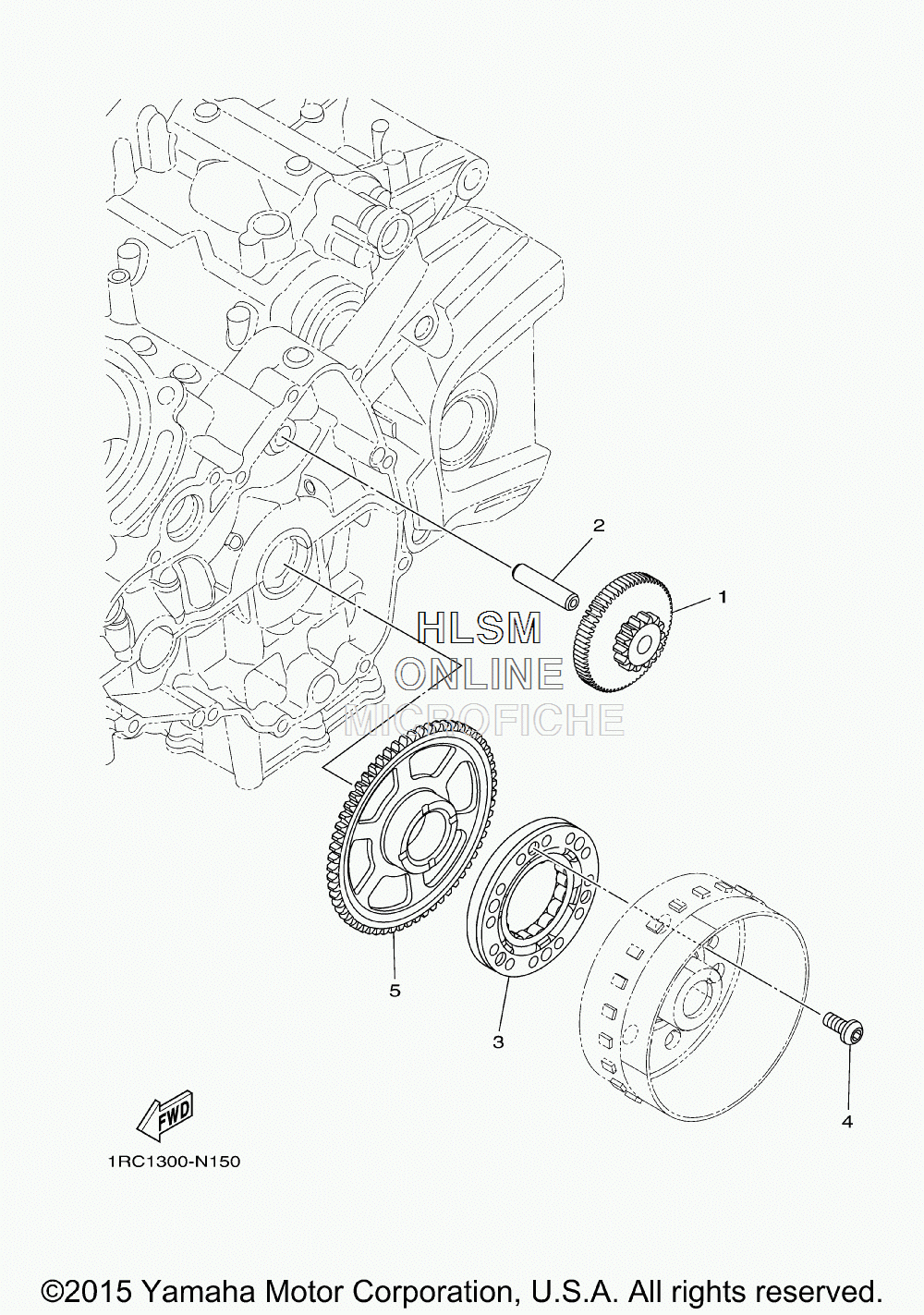

STARTER CLUTCH для Yamaha FZ-09 - 2015 года выпуска
-
№АртикулНазвание
-
11RC-15512-00-00 GEAR, IDLER 1GEAR, IDLER 1
-
25EB-15521-00-00 SHAFT 1SHAFT 1
-
31RC-15590-00-00 STARTER ONE-WAY ASSYSTARTER ONE-WAY ASSY
-
490149-08030-00 SCREWSCREW
-
51RC-15515-00-00 GEAR 3GEAR 3
