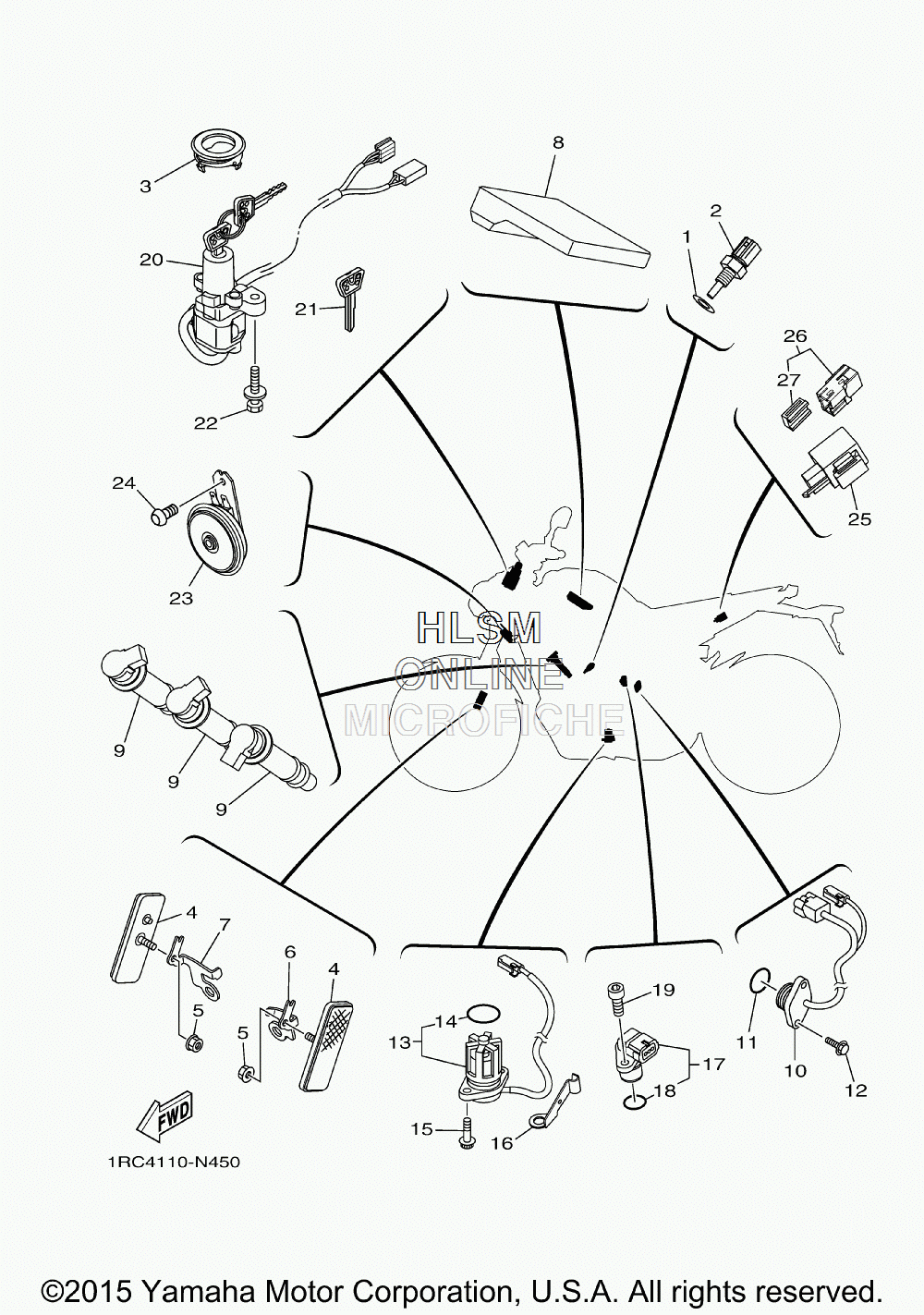

ELECTRICAL 2 для Yamaha FZ-09 - 2015 года выпуска
-
№АртикулНазвание
-
190430-10004-00 GASKETGASKET
-
24P9-83591-00-00 THERMO UNITTHERMO UNIT
-
336P-82552-00-00 CAP, SWITCHCAP, SWITCH
-
411H-85110-01-00 REFLECTOR ASSYREFLECTOR ASSY
-
595702-05500-00 NUT, FLANGENUT, FLANGE
-
61RC-85112-00-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
71RC-85122-00-00 BRACKET, REFLECTOR 2BRACKET, REFLECTOR 2
-
81RC-8591A-21-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
91RC-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
101RC-82540-00-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
1193210-21001-00 O-RINGO-RING
-
1290110-05067-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
135S7-85720-00-00 OIL LEVEL GAUGE ASSYOIL LEVEL GAUGE ASSY
-
145VY-8A8E0-00-00 ...O-RING...O-RING
-
1595022-06016-00 BOLT, FLANGEBOLT, FLANGE
-
1690465-08053-00 CLAMPCLAMP
-
171TP-83755-00-00 SENSOR, SPEEDSENSOR, SPEED
-
184D9-81168-00-00 ...O-RING...O-RING
-
1990110-06161-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
201RC-82501-30-00 MAIN SWITCH STEERING LOCKMAIN SWITCH STEERING LOCK
-
214BH-82511-09-00 BLANK KEYBLANK KEY
-
2290109-08195-00 BOLTBOLT
-
231RC-83371-00-00 HORNHORN
-
2492017-06010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
254C8-83350-10-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
-
261ST-81950-00-00 RELAY ASSY (1ST-00)RELAY ASSY (1ST-00)
-
275JJ-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
