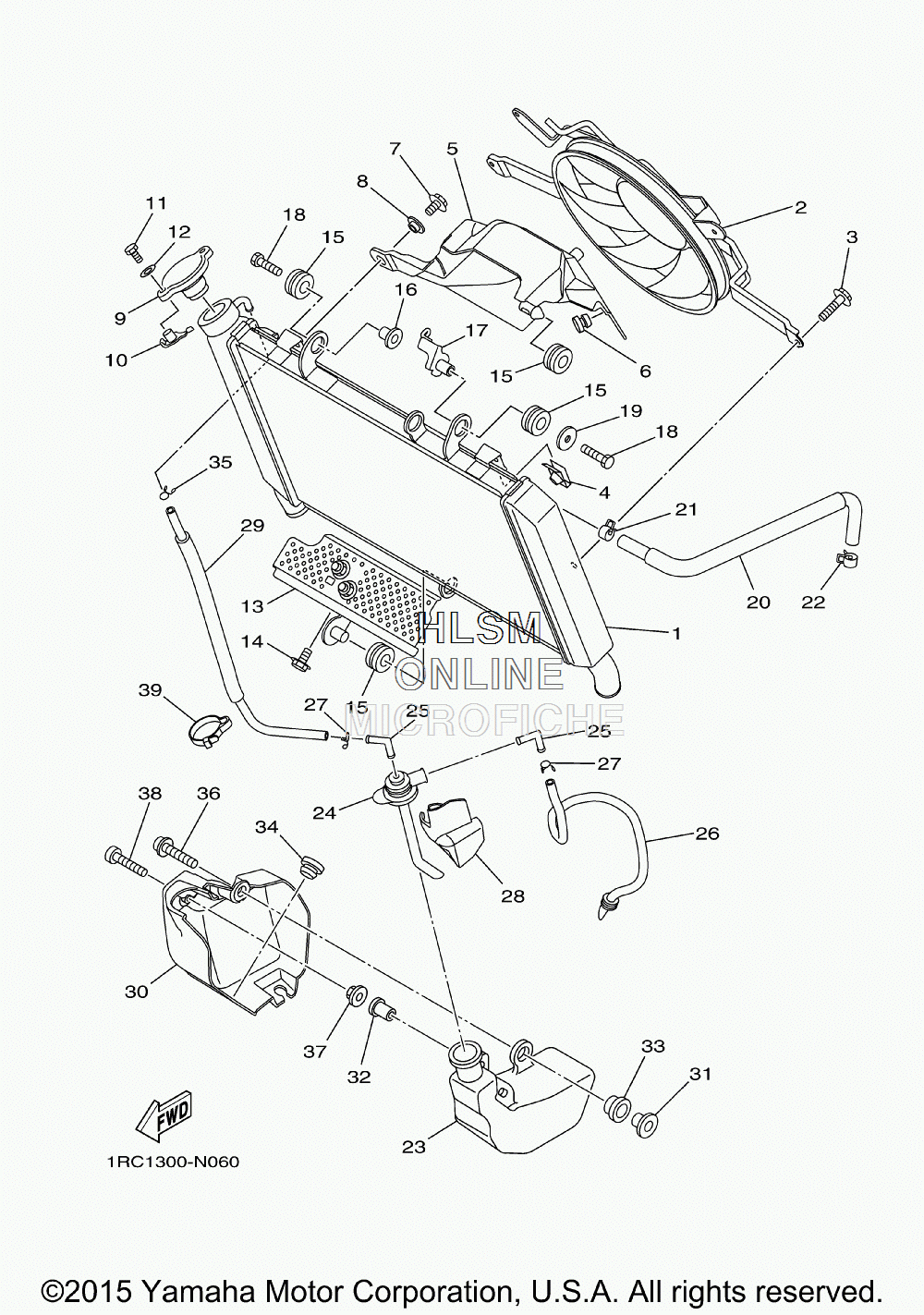

RADIATOR для Yamaha FZ-09 - 2015 года выпуска
-
№АртикулНазвание
-
11RC-12461-00-00 RADIATOR COMPRADIATOR COMP
-
21RC-12405-00-00 BLOWER ASSYBLOWER ASSY
-
33D8-12675-00-00 BOLT, BLOWER HOLDINGBOLT, BLOWER HOLDING
-
41AA-12535-00-00 PLATEPLATE
-
51RC-12467-00-00 COVER, RADIATORCOVER, RADIATOR
-
690338-07157-00 PLUG SPEC'L SHAPEPLUG SPEC'L SHAPE
-
790105-06080-00 BOLT, FLANGEBOLT, FLANGE
-
890387-07717-00 COLLARCOLLAR
-
94FL-12462-00-00 CAP, RADIATORCAP, RADIATOR
-
105FC-12437-00-00 STOPPERSTOPPER
-
1197007-05012-00 BOLTBOLT
-
1292907-05600-00 WASHER, PLATEWASHER, PLATE
-
131RC-12637-00-00 STAY 1STAY 1
-
1495822-06012-00 BOLT, FLANGEBOLT, FLANGE
-
1590480-15363-00 GROMMETGROMMET
-
1690387-06158-00 COLLARCOLLAR
-
171RC-26132-00-00 GUIDE, CABLE 2GUIDE, CABLE 2
-
1891312-06030-00 BOLTBOLT
-
1990201-06033-00 WASHER, PLATEWASHER, PLATE
-
201RC-1243A-00-00 HOSE 1HOSE 1
-
2190467-10039-00 CLIPCLIP
-
2290467-10039-00 CLIPCLIP
-
231RC-21871-00-00 TANK, RECOVERYTANK, RECOVERY
-
241RC-21875-00-00 CAPCAP
-
251RC-21828-00-00 ELBOWELBOW
-
261RC-21826-00-00 PIPE, BREATHERPIPE, BREATHER
-
2790467-08075-00 CLIPCLIP
-
281RC-22825-00-00 PROTECTOR 1PROTECTOR 1
-
291RC-21816-00-00 PIPE 1PIPE 1
-
301RC-2172W-00-00 COVERCOVER
-
3190387-06285-00 COLLARCOLLAR
-
3290179-05523-00 NUT SPEC'L SHAPENUT SPEC'L SHAPE
-
331RC-21749-00-00 COLLARCOLLAR
-
3490480-13203-00 GROMMETGROMMET
-
3590467-08075-00 CLIPCLIP
-
3690110-06233-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
371RC-21748-00-00 COLLARCOLLAR
-
3892012-05030-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3990464-07M40-00 CLAMPCLAMP
