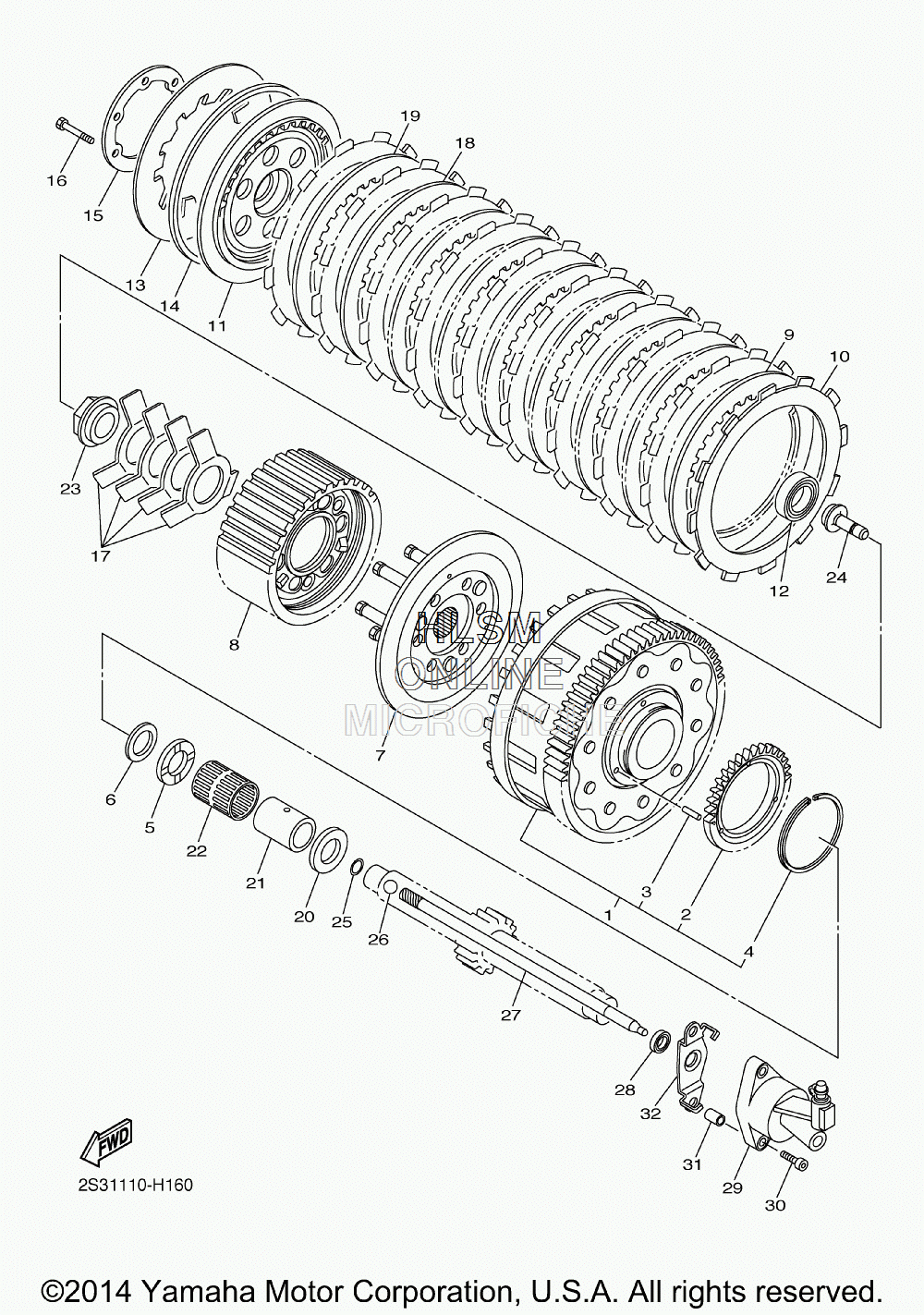

CLUTCH для Yamaha V MAX - 2015 года выпуска
-
№АртикулНазвание
-
12S3-16150-00-00 PRIMARY DRIVEN GEAR COMP.PRIMARY DRIVEN GEAR COMP.
-
22S3-13324-00-00 ...GEAR, PUMP DRIVE...GEAR, PUMP DRIVE
-
393604-16092-00 ...PIN, DOWEL...PIN, DOWEL
-
493440-57M01-00 ...CIRCLIP...CIRCLIP
-
54B1-16154-00-00 PLATE, THRUST 1PLATE, THRUST 1
-
690208-25002-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
72S3-16360-00-00 PRESSURE PLATE ASSY 2PRESSURE PLATE ASSY 2
-
82S3-16370-00-00 CLUTCH BOSS ASSYCLUTCH BOSS ASSY
-
92H7-16325-00-00 PLATE, CLUTCH 2 (T2.0)PLATE, CLUTCH 2 (T2.0)
-
105YU-16321-00-00 PLATE, FRICTIONPLATE, FRICTION
-
112S3-16351-00-00 PLATE, PRESSURE 1PLATE, PRESSURE 1
-
1293306-00304-00 BEARINGBEARING
-
135YU-16334-00-00 SPRING, CLUTCH 2SPRING, CLUTCH 2
-
1436Y-16335-00-00 HOUSING, SPRINGHOUSING, SPRING
-
152S3-16353-00-00 PLATE, PRESSURE 3PLATE, PRESSURE 3
-
1697002-06025-00 BOLTBOLT
-
172S3-16539-00-00 SPRINGSPRING
-
182H7-16324-00-00 PLATE, CLUTCH 1 (T2.6) (OPT)PLATE, CLUTCH 1 (T2.6) (OPT)
-
182H7-16325-00-00 PLATE, CLUTCH 2 (T2.0) (OPT)PLATE, CLUTCH 2 (T2.0) (OPT)
-
1947X-16324-00-00 PLATE, CLUTCH 1 (T1.6) (OPT)PLATE, CLUTCH 1 (T1.6) (OPT)
-
192H7-16324-00-00 PLATE, CLUTCH 1 (T2.6) (OPT)PLATE, CLUTCH 1 (T2.6) (OPT)
-
192H7-16325-00-00 PLATE, CLUTCH 2 (T2.0) (OPT)PLATE, CLUTCH 2 (T2.0) (OPT)
-
205VY-16164-00-00 PLATE, THRUST 2PLATE, THRUST 2
-
2190387-25026-00 COLLARCOLLAR
-
2293310-33559-00 BEARINGBEARING
-
232S3-16377-00-00 NUT, LOCKNUT, LOCK
-
244KG-16356-00-00 ROD, PUSH 1ROD, PUSH 1
-
2593210-06632-00 O-RINGO-RING
-
2693511-32017-00 BALLBALL
-
272S3-16357-00-00 ROD, PUSH 2ROD, PUSH 2
-
2893102-08008-00 OIL SEALOIL SEAL
-
292S3-16381-00-00 PUSH LEVER COMP.PUSH LEVER COMP.
-
3090110-06246-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3199530-08012-00 PIN, DOWELPIN, DOWEL
-
322S3-15645-00-00 PLATEPLATE
