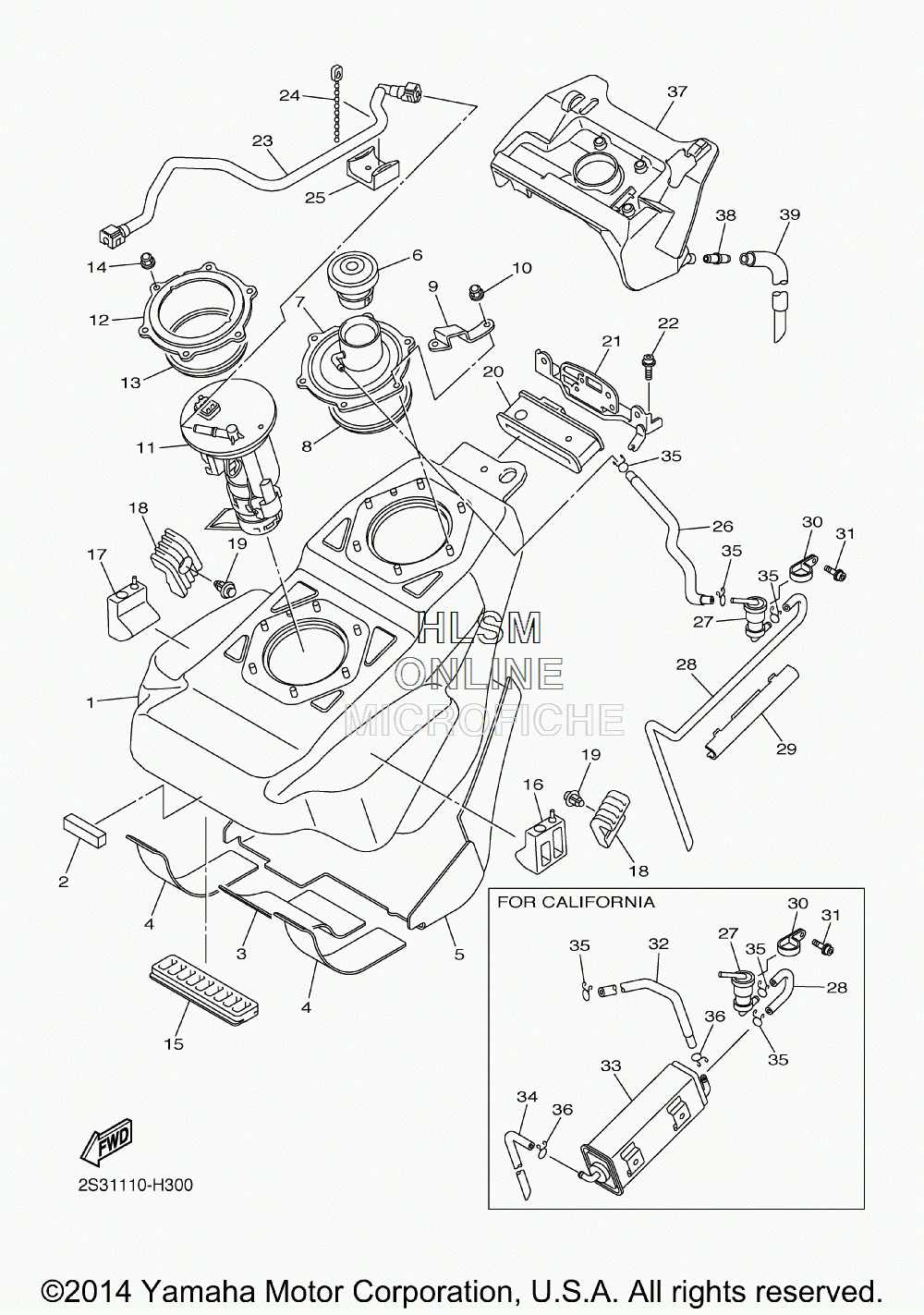

FUEL TANK для Yamaha V MAX - 2015 года выпуска
-
№АртикулНазвание
-
12S3-24110-00-00 FUEL TANK COMP.FUEL TANK COMP.
-
22C0-2139U-00-00 DAMPER 2DAMPER 2
-
32S3-2414J-00-00 DAMPER, PLATE 2DAMPER, PLATE 2
-
42S3-2414K-00-00 DAMPER, PLATE 3DAMPER, PLATE 3
-
52S3-24145-00-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
654K-24602-10-00 CAP ASSYCAP ASSY
-
72S3-21350-01-00 FILLER TUBE COMP.FILLER TUBE COMP.
-
82S3-24486-00-00 O-RINGO-RING
-
92S3-2411F-00-00 PLATE, FITTINGPLATE, FITTING
-
1095307-06800-00 NUTNUT
-
112S3-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
121S3-24491-10-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
132S3-24486-00-00 O-RINGO-RING
-
1495307-06800-00 NUTNUT
-
152S3-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
162S3-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
172S3-24182-10-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
182S3-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
1990269-06081-00 RIVETRIVET
-
202S3-24184-00-00 DAMPER, LOCATING 4DAMPER, LOCATING 4
-
212S3-2413Y-00-00 BRACKET, TANK FITTINGBRACKET, TANK FITTING
-
2290110-06219-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
232S3-13971-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
2480L-26397-00-00 BANDBAND
-
252S3-24144-00-00 HOLDER, DAMPERHOLDER, DAMPER
-
262S3-24311-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
272C0-24180-00-00 ROLL OVER VALVE ASSYROLL OVER VALVE ASSY
-
282S3-24312-10-00 PIPE 2 (EXCEPT CALIF)PIPE 2 (EXCEPT CALIF)
-
282S3-24312-00-00 PIPE 2 (CALIF ONLY)PIPE 2 (CALIF ONLY)
-
292S3-24327-00-00 PROTECTOR, PIPEPROTECTOR, PIPE
-
3090464-15014-00 CLAMPCLAMP
-
3190110-05062-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
322S3-24313-00-00 PIPE 3 (CALIF ONLY)PIPE 3 (CALIF ONLY)
-
332S3-24170-00-00 CANISTER ASSY (CALIF ONLY)CANISTER ASSY (CALIF ONLY)
-
342S3-24314-00-00 PIPE 4 (CALIF ONLY)PIPE 4 (CALIF ONLY)
-
3590467-09002-00 CLIP (EXCEPT CALIF)CLIP (EXCEPT CALIF)
-
3590467-09002-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
3690467-100A1-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
372S3-2414A-00-00 COVER, FILLERCOVER, FILLER
-
384JP-21753-00-00 BOSS, CONNECTORBOSS, CONNECTOR
-
392S3-24318-00-00 PIPE, OVERFLOWPIPE, OVERFLOW
