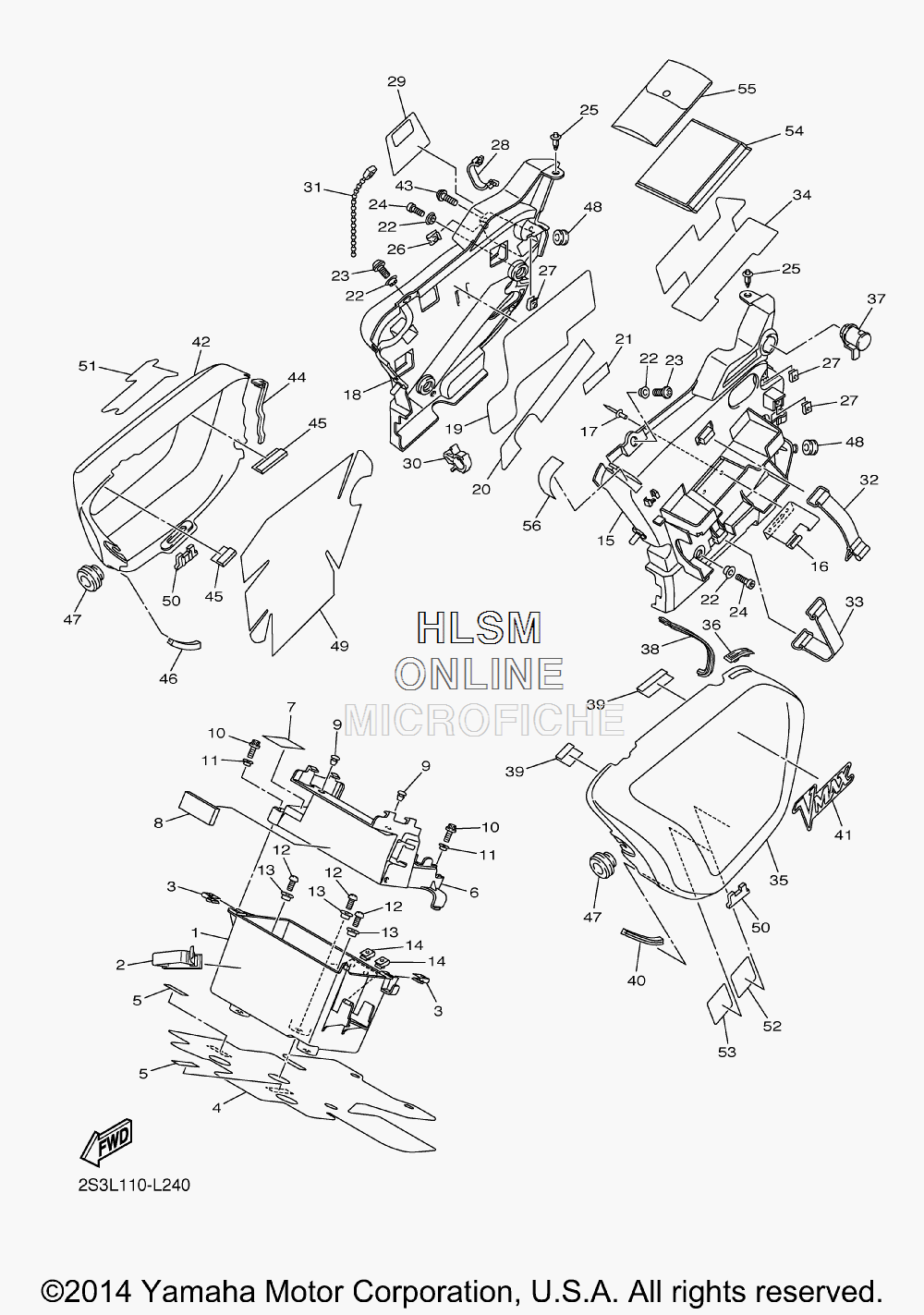

SIDE COVER 2 для Yamaha V MAX - 2015 года выпуска
-
№АртикулНазвание
-
12S3-2177G-00-00 BOX, BATTERYBOX, BATTERY
-
290464-13012-00 CLAMPCLAMP
-
390183-05076-00 NUT, SPRINGNUT, SPRING
-
42S3-2117G-01-00 PROTECTORPROTECTOR
-
52S3-21732-00-00 SEAL 1SEAL 1
-
62S3-8212B-00-00 BOX, BATTERY 1BOX, BATTERY 1
-
75JW-2164K-00-00 PATCH 5PATCH 5
-
82S3-21638-00-00 DAMPER 1DAMPER 1
-
990338-06018-00 PLUGPLUG
-
1090110-05028-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1190387-05035-00 COLLARCOLLAR
-
1290111-06065-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1390387-06130-00 COLLARCOLLAR
-
1490183-04039-00 NUT, SPRINGNUT, SPRING
-
152S3-2172A-00-00 PANEL 1PANEL 1
-
162S3-2175R-00-00 HOOK, BANDHOOK, BAND
-
1790267-40076-00 RIVET, BLINDRIVET, BLIND
-
182S3-2172F-00-00 PANEL 2PANEL 2
-
192S3-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
202S3-24737-00-00 DAMPER, SEATDAMPER, SEAT
-
217TD-14747-10-00 DAMPER, MUFFLERDAMPER, MUFFLER
-
2290387-06040-00 COLLARCOLLAR
-
2390111-06119-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2490110-06189-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2590269-06008-00 RIVETRIVET
-
2690183-06069-00 NUT, SPRINGNUT, SPRING
-
2790183-05076-00 NUT, SPRINGNUT, SPRING
-
2890464-24230-00 CLAMPCLAMP
-
292S3-21652-00-00 PROTECTORPROTECTOR
-
3090464-15157-00 CLAMPCLAMP
-
3180L-26397-00-00 BANDBAND
-
323TJ-82131-00-00 BAND, BATTERYBAND, BATTERY
-
33122-82131-00-00 BAND, BATTERY (CALIF ONLY)BAND, BATTERY (CALIF ONLY)
-
342S3-21746-00-00 DAMPERDAMPER
-
352S3-21731-10-00 COVER, SIDE 3COVER, SIDE 3
-
362S3-2171P-00-00 CAP, SLIDERCAP, SLIDER
-
372S3-21708-00-00 LOCK ASSY 2LOCK ASSY 2
-
382S3-24785-00-00 MOLD, SEATMOLD, SEAT
-
392AL-84553-00-00 DAMPERDAMPER
-
402S3-28348-00-00 MOLE 4MOLE 4
-
412S3-2173D-01-00 EMBLEM 3DEMBLEM 3D
-
422S3-21741-10-00 COVER, SIDE 4COVER, SIDE 4
-
4390111-06038-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
442S3-2478K-00-00 MOLD 2MOLD 2
-
452AL-84553-00-00 DAMPERDAMPER
-
462S3-28348-00-00 MOLE 4MOLE 4
-
472S3-21717-00-00 DAMPERDAMPER
-
4890480-12320-00 GROMMETGROMMET
-
492S3-24724-00-00 DAMPER, SEATDAMPER, SEAT
-
502S3-24665-00-00 DAMPERDAMPER
-
512S3-2174D-01-00 EMBLEM 3DEMBLEM 3D
-
525VX-21684-00-00 PLATE, ROUTING (CALIF ONLY)PLATE, ROUTING (CALIF ONLY)
-
534B5-21686-00-00 PLATE, ROUTING 2 (CALIF ONLY)PLATE, ROUTING 2 (CALIF ONLY)
-
542S3-28100-00-00 TOOL KITTOOL KIT
-
552S3-28110-00-00 TOOL KIT, 2TOOL KIT, 2
-
562C0-21567-00-00 TAPE, 2TAPE, 2
