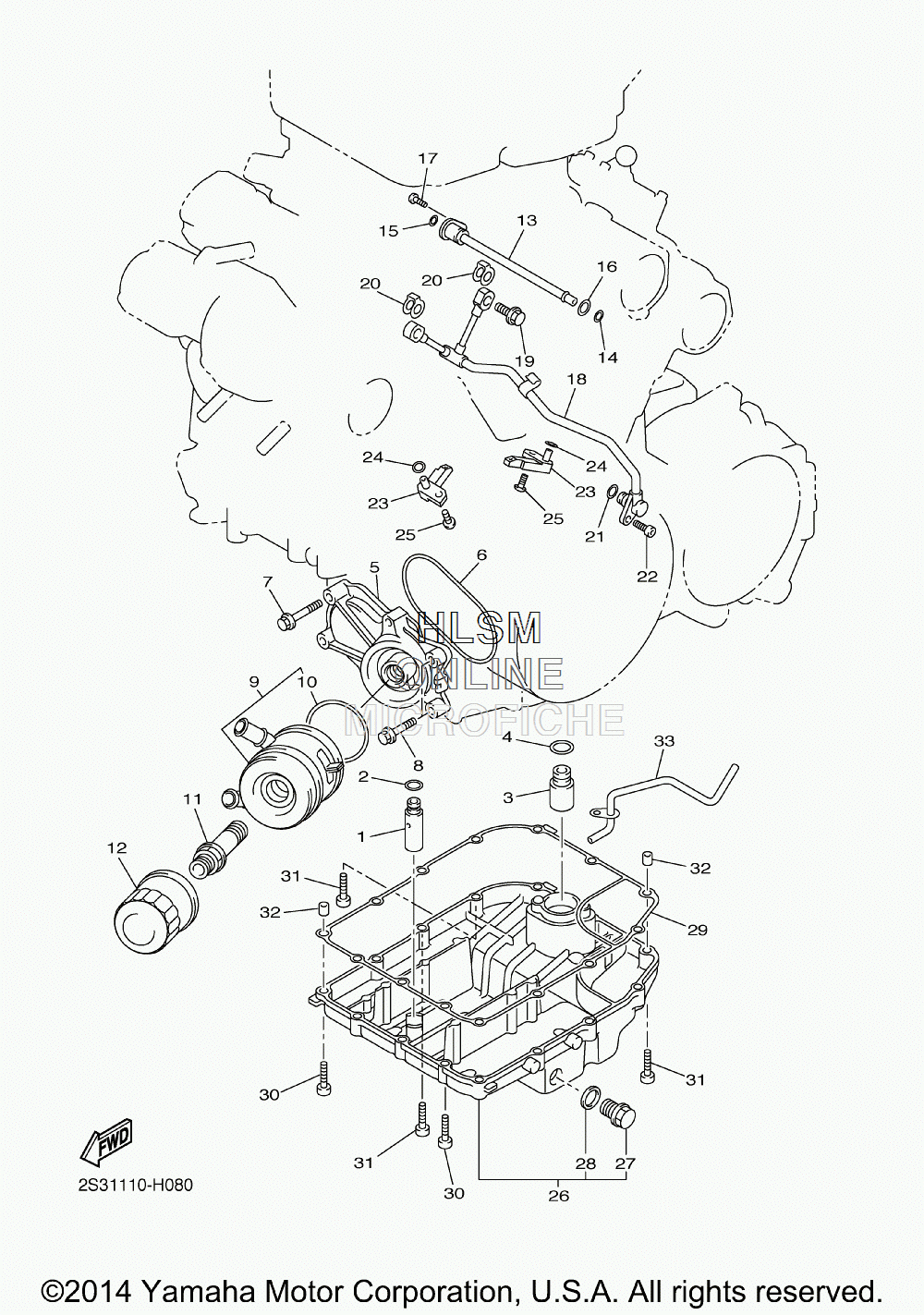

OIL CLEANER для Yamaha V MAX - 2015 года выпуска
-
№АртикулНазвание
-
12C0-13490-00-00 RELIEF VALVE ASSYRELIEF VALVE ASSY
-
293210-15566-00 O-RINGO-RING
-
32S3-15189-00-00 PLUGPLUG
-
493210-15566-00 O-RINGO-RING
-
52S3-13461-00-00 PLATE, ADAPTORPLATE, ADAPTOR
-
62S3-13016-00-00 O-RINGO-RING
-
790105-06129-00 BOLT, FLANGEBOLT, FLANGE
-
895812-06030-00 BOLT, FLANGEBOLT, FLANGE
-
92S3-13470-00-00 OIL COOLER ASSYOIL COOLER ASSY
-
105JW-13473-00-00 ...O-RING...O-RING
-
1190401-20006-00 BOLT, UNIONBOLT, UNION
-
125GH-13440-30-00 ELEMENT ASSY, OIL CLEANERELEMENT ASSY, OIL CLEANER
-
132S3-13171-00-00 PIPE, DELIVERY 2PIPE, DELIVERY 2
-
1493210-06667-00 O-RINGO-RING
-
1593210-09525-00 O-RINGO-RING
-
1693210-12010-00 O-RINGO-RING
-
1790149-06158-00 SCREWSCREW
-
182S3-13181-00-00 PIPE, DELIVERY 3PIPE, DELIVERY 3
-
1990401-10106-00 BOLT, UNIONBOLT, UNION
-
202S3-13475-00-00 GASKETGASKET
-
2193210-10001-00 O-RINGO-RING
-
2290110-06175-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
232S3-15155-00-00 NOZZLE 3NOZZLE 3
-
2493210-04001-00 O-RINGO-RING
-
2590149-06082-00 SCREWSCREW
-
262S3-13400-00-00 STRAINER COVER ASSYSTRAINER COVER ASSY
-
2790340-14132-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
28214-11198-01-00 ...GASKET...GASKET
-
292S3-13414-00-00 GASKET, STRAINER COVERGASKET, STRAINER COVER
-
3091312-06030-00 BOLTBOLT
-
3190110-06246-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3299530-08012-00 PIN, DOWELPIN, DOWEL
-
332S3-13191-00-00 PIPE, DELIVERY 4PIPE, DELIVERY 4
