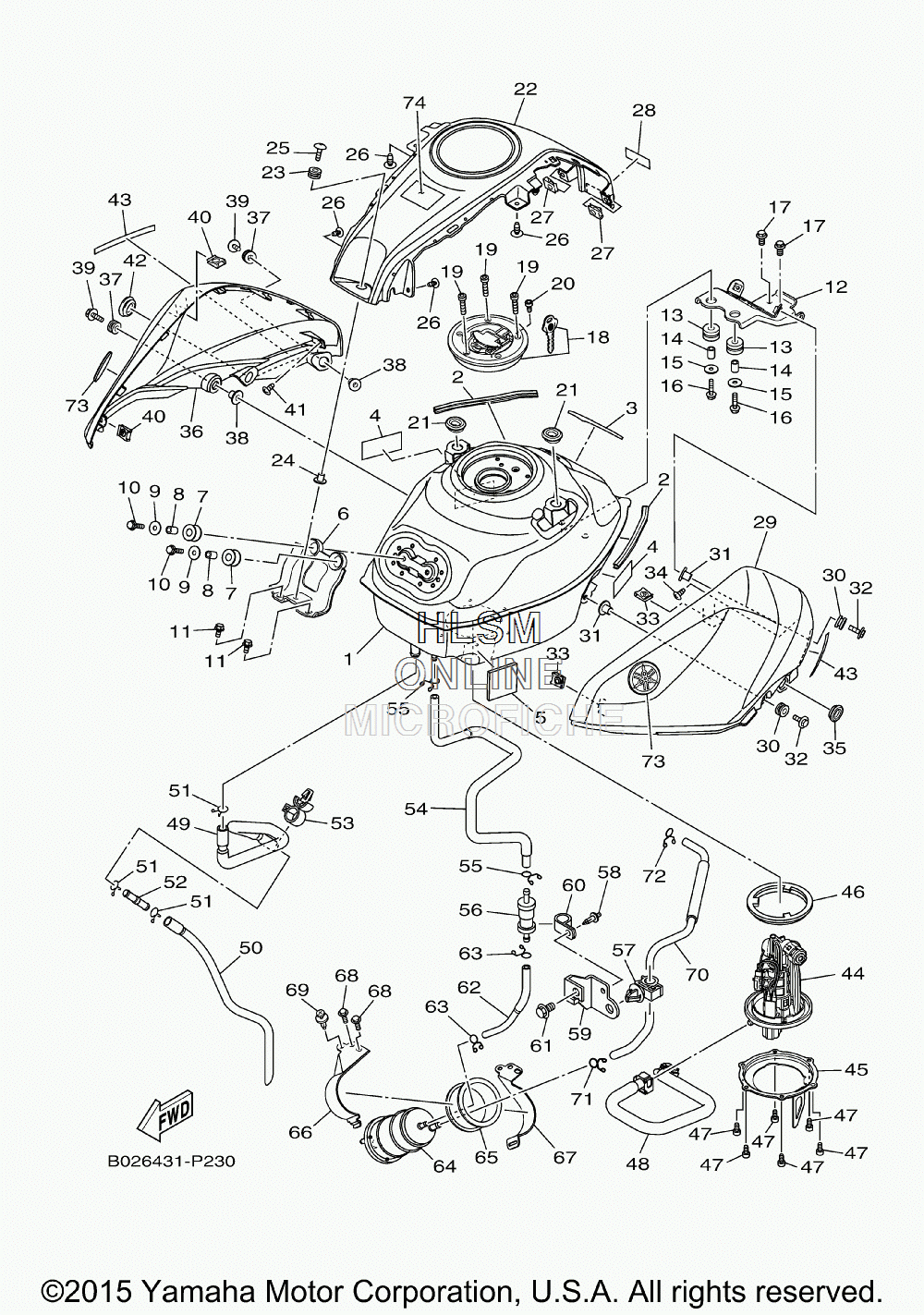

FUEL TANK для Yamaha YZF-R3 - 2015 года выпуска
-
№АртикулНазвание
-
11WD-F4110-00-00 FUEL TANK COMP.FUEL TANK COMP.
-
21WD-F4188-00-00 MOLD, FUEL TANKMOLD, FUEL TANK
-
390520-03823-00 DAMPER, PLATEDAMPER, PLATE
-
45D9-F414G-00-00 SEALSEAL
-
545P-F414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
61WD-F412Y-00-00 BRACKET, TANK FITTINGBRACKET, TANK FITTING
-
71WD-F4339-00-00 GROMMETGROMMET
-
890387-06299-00 COLLARCOLLAR
-
990201-06380-00 WASHER PLAINWASHER PLAIN
-
1095822-06025-00 BOLT, FLANGEBOLT, FLANGE
-
1195812-06012-00 BOLT, FLANGEBOLT, FLANGE
-
121WD-F4191-00-00 BRACKET, FUEL TANK 1BRACKET, FUEL TANK 1
-
1390480-15807-00 GROMMETGROMMET
-
1490387-06299-00 COLLARCOLLAR
-
1590201-06380-00 WASHER PLAINWASHER PLAIN
-
1695822-06025-00 BOLT, FLANGEBOLT, FLANGE
-
1795022-08014-00 BOLT, FLANGEBOLT, FLANGE
-
181WD-WF461-00-00 CAP ASSYCAP ASSY
-
1990110-05806-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2091312-05010-00 BOLTBOLT
-
2190480-01558-00 GROMMETGROMMET
-
221WD-F41B1-00-P1 COVER, TANK (MS1 FOR DPBMC)COVER, TANK (MS1 FOR DPBMC)
-
221WD-F41B1-00-P0 COVER, TANK (MBL2 FOR SMX, VRC1)COVER, TANK (MBL2 FOR SMX, VRC1)
-
2390480-12808-00 GROMMETGROMMET
-
2490387-06899-00 COLLARCOLLAR
-
2590111-06117-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2697707-50012-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
2790183-05807-00 NUT, SPRINGNUT, SPRING
-
281WD-F414G-00-00 SEALSEAL
-
291WD-F4129-00-P1 COVER, SIDE 1 (FOR DPBMC)COVER, SIDE 1 (FOR DPBMC)
-
291WD-F4129-00-P0 COVER, SIDE 1 (FOR SMX)COVER, SIDE 1 (FOR SMX)
-
291WD-F4129-00-P2 COVER, SIDE 1 (FOR VRC1)COVER, SIDE 1 (FOR VRC1)
-
3090480-12808-00 GROMMETGROMMET
-
3190387-06899-00 COLLARCOLLAR
-
3290119-05020-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3390183-05807-00 NUT, SPRINGNUT, SPRING
-
3497707-50012-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
3590480-01559-00 GROMMETGROMMET
-
361WD-F4139-00-P1 COVER, SIDE 2 (FOR DPBMC)COVER, SIDE 2 (FOR DPBMC)
-
361WD-F4139-00-P0 COVER, SIDE 2 (FOR SMX)COVER, SIDE 2 (FOR SMX)
-
361WD-F4139-00-P2 COVER, SIDE 2 (FOR VRC1)COVER, SIDE 2 (FOR VRC1)
-
3790480-12808-00 GROMMETGROMMET
-
3890387-06899-00 COLLARCOLLAR
-
3990119-05020-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4090183-05807-00 NUT, SPRINGNUT, SPRING
-
4197707-50012-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
4290480-01559-00 GROMMETGROMMET
-
431WD-F414E-00-00 SEAL 2SEAL 2
-
441WD-E3907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
451WD-F4491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
463C1-F4486-00-00 O-RINGO-RING
-
4791312-05010-00 BOLTBOLT
-
481WD-E3971-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
491WD-F4312-00-00 PIPE 2PIPE 2
-
501WD-F4314-00-00 PIPE 4PIPE 4
-
5190467-15012-00 CLIPCLIP
-
521WD-F4376-00-00 PIPE, JOINT 1PIPE, JOINT 1
-
5390464-16012-00 CLAMPCLAMP
-
542MS-F4314-01-00 PIPE 4PIPE 4
-
5590467-09006-00 CLIPCLIP
-
561DW-F4180-02-00 ROLL OVER VALVE ASSYROLL OVER VALVE ASSY
-
5790464-10008-00 CLAMPCLAMP
-
5890269-05006-00 RIVETRIVET
-
592MS-F419F-00-00 BRACKET, CANISTORBRACKET, CANISTOR
-
6090464-15014-00 CLAMPCLAMP
-
6195027-08012-00 BOLT, FLANGEBOLT, FLANGE
-
622MS-F4315-00-00 PIPE 5PIPE 5
-
6390467-09006-00 CLIPCLIP
-
642MS-F4170-00-00 CANISTER ASSYCANISTER ASSY
-
652MS-F483H-00-00 BANDBAND
-
662MS-F115R-00-00 BRACKET, CANISTERBRACKET, CANISTER
-
672MS-F134X-00-00 BRACKET, CANISTERBRACKET, CANISTER
-
6895027-06016-00 BOLT, FLANGEBOLT, FLANGE
-
6990269-06081-00 RIVETRIVET
-
702MS-F4316-00-00 PIPE 6PIPE 6
-
7190467-11009-00 CLIPCLIP
-
7290467-09006-00 CLIPCLIP
-
731WD-F413B-00-00 EMBLEMEMBLEM
-
741TP-2118K-A1-00 LABEL, CAUTIONLABEL, CAUTION
