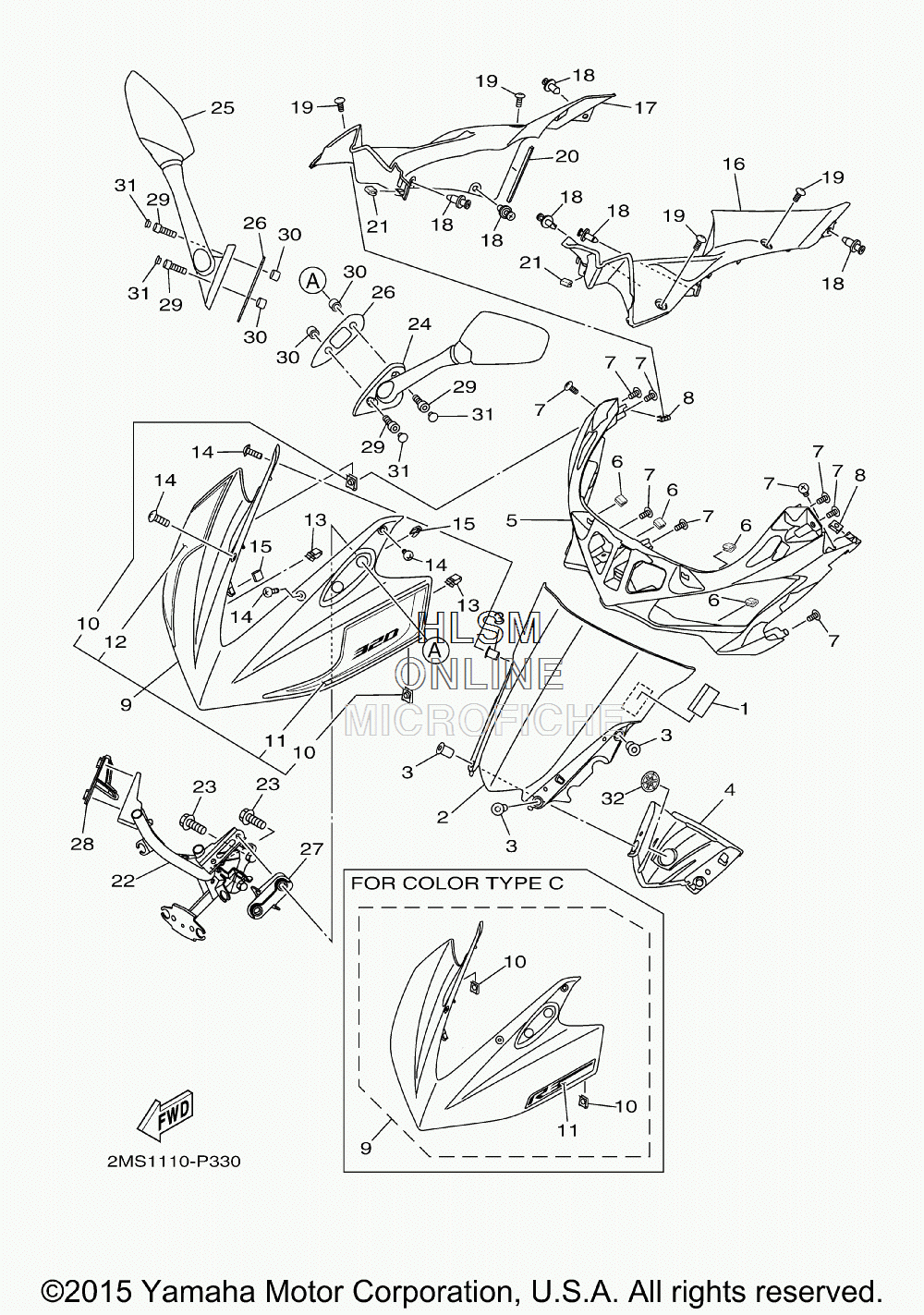

WINDSHIELD для Yamaha YZF-R3 - 2015 года выпуска
-
№АртикулНазвание
-
11WD-F815K-10-00 LABEL, NOTICE WINDSHIELD 1LABEL, NOTICE WINDSHIELD 1
-
21WD-F8381-00-00 WINDSHIELDWINDSHIELD
-
390179-05849-00 NUTNUT
-
41WD-H3559-00-00 COVER, METERCOVER, METER
-
51WD-F835G-00-00 BODY, FRONT UPPER 1BODY, FRONT UPPER 1
-
61WD-F8376-00-00 TRIMTRIM
-
797702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
890183-050A7-00 NUT, SPRINGNUT, SPRING
-
91WD-XF83F-40-P1 BODY COWLING SUB ASSY (FOR DPBMCBODY COWLING SUB ASSY (FOR DPBMC
-
91WD-XF83F-10-P0 BODY COWLING SUB ASSY (FOR SMX)BODY COWLING SUB ASSY (FOR SMX)
-
91WD-XF83F-20-P2 BODY COWLING SUB ASSY (FOR VRC1)BODY COWLING SUB ASSY (FOR VRC1)
-
1090183-05807-00 ...NUT, SPRING...NUT, SPRING
-
112MS-F8391-00-00 ......GRAPHIC 1 (FOR DPBMC)......GRAPHIC 1 (FOR DPBMC)
-
112MS-F8391-10-00 ......GRAPHIC 1 (FOR VRC1)......GRAPHIC 1 (FOR VRC1)
-
121WD-F8392-00-00 ......GRAPHIC 2 (FOR DPBMC)......GRAPHIC 2 (FOR DPBMC)
-
1344D-F8379-00-00 HOOKHOOK
-
1490150-05023-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
151WD-F8376-00-00 TRIMTRIM
-
161WD-F836N-00-00 PANEL, INNER 4PANEL, INNER 4
-
171WD-F836R-00-00 PANEL, INNER 5PANEL, INNER 5
-
1890269-06081-00 RIVETRIVET
-
1990111-05003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
201WD-F1278-00-00 MOLDMOLD
-
211WD-F8376-00-00 TRIMTRIM
-
221WD-F8356-00-00 STAY 1STAY 1
-
2395812-08035-00 BOLT, FLANGEBOLT, FLANGE
-
241WD-F6280-10-00 REAR VIEW MIRROR ASSY (LEFT)REAR VIEW MIRROR ASSY (LEFT)
-
251WD-F6290-10-00 REAR VIEW MIRROR ASSY (RIGHT)REAR VIEW MIRROR ASSY (RIGHT)
-
261WD-F8483-00-00 PLATE, RUBBER 1PLATE, RUBBER 1
-
271WD-F8484-00-00 PLATE, RUBBER 2PLATE, RUBBER 2
-
281WD-F8485-00-00 PLATE, RUBBER 3PLATE, RUBBER 3
-
2991317-06025-00 BOLTBOLT
-
3090387-068C2-00 COLLARCOLLAR
-
3190338-05010-00 PLUGPLUG
-
321PA-F836B-00-00 TUNING FORK MARKTUNING FORK MARK
