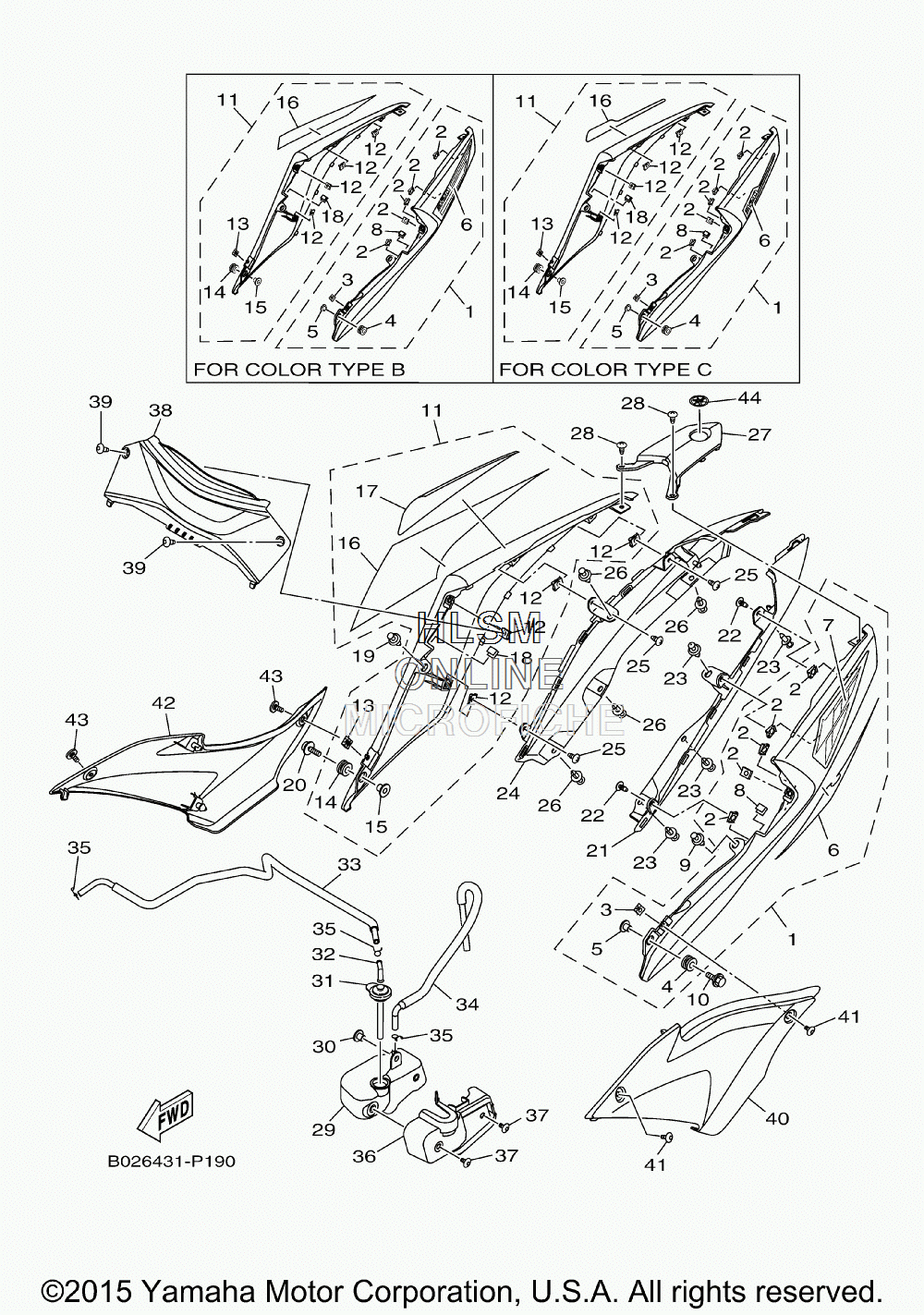

SIDE COVER для Yamaha YZF-R3 - 2015 года выпуска
-
№АртикулНазвание
-
11WD-XF171-30-P2 COVER, SIDE 1 (FOR VRC1)COVER, SIDE 1 (FOR VRC1)
-
11WD-XF171-30-P1 COVER, SIDE 1 (FOR DPBMC)COVER, SIDE 1 (FOR DPBMC)
-
11WD-XF171-30-P0 COVER, SIDE 1 (FOR SMX)COVER, SIDE 1 (FOR SMX)
-
290183-05807-00 ...NUT, SPRING...NUT, SPRING
-
390183-050A7-00 ...NUT, SPRING...NUT, SPRING
-
490480-12808-00 ...GROMMET...GROMMET
-
590387-06899-00 ...COLLAR...COLLAR
-
61WD-F17F1-00-00 ......GRAPHIC, 1 (FOR DPBMC)......GRAPHIC, 1 (FOR DPBMC)
-
62MS-F17F1-10-00 ......GRAPHIC, 1 (FOR VRC1)......GRAPHIC, 1 (FOR VRC1)
-
62MS-F17F1-00-00 ......GRAPHIC, 1 (FOR SMX)......GRAPHIC, 1 (FOR SMX)
-
71WD-F17F3-00-00 ......GRAPHIC, 3 (FOR DPBMC)......GRAPHIC, 3 (FOR DPBMC)
-
831B-F8307-00-00 ...SEAL...SEAL
-
990269-06081-00 RIVETRIVET
-
1090119-06810-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
111WD-XF172-30-P1 COVER, SIDE 2 (FOR DPBMC)COVER, SIDE 2 (FOR DPBMC)
-
111WD-XF172-30-P2 COVER, SIDE 2 (FOR VRC1)COVER, SIDE 2 (FOR VRC1)
-
111WD-XF172-30-P0 COVER, SIDE 2 (FOR SMX)COVER, SIDE 2 (FOR SMX)
-
1290183-05807-00 ...NUT, SPRING...NUT, SPRING
-
1390183-050A7-00 ...NUT, SPRING...NUT, SPRING
-
1490480-12808-00 ...GROMMET...GROMMET
-
1590387-06899-00 ...COLLAR...COLLAR
-
161WD-F17F2-00-00 ......GRAPHIC, 2 (FOR DPBMC)......GRAPHIC, 2 (FOR DPBMC)
-
162MS-F17F2-00-00 ......GRAPHIC, 2 (FOR SMX)......GRAPHIC, 2 (FOR SMX)
-
162MS-F17F2-10-00 ......GRAPHIC, 2 (FOR VRC1)......GRAPHIC, 2 (FOR VRC1)
-
171WD-F17F4-00-00 ......GRAPHIC, 4 (FOR DPBMC)......GRAPHIC, 4 (FOR DPBMC)
-
1831B-F8307-00-00 ...SEAL...SEAL
-
1990269-06081-00 RIVETRIVET
-
2090119-06810-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
211WD-F171L-00-00 MOLE, SIDE COVER 1MOLE, SIDE COVER 1
-
2297707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
2390269-06081-00 RIVETRIVET
-
241WD-F171M-00-00 MOLE, SIDE COVER 2MOLE, SIDE COVER 2
-
2597707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
2690269-06081-00 RIVETRIVET
-
271WD-F171N-00-00 MOLE, SIDE COVER 3MOLE, SIDE COVER 3
-
2897707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
291WD-F1871-00-00 TANK, RECOVERYTANK, RECOVERY
-
3090387-06857-00 COLLARCOLLAR
-
311WD-F1875-00-00 CAPCAP
-
323C1-F1828-00-00 ELBOWELBOW
-
331WD-F1816-00-00 PIPE 1PIPE 1
-
341WD-F1817-00-00 PIPE 2PIPE 2
-
3590467-08003-00 CLIPCLIP
-
361WD-F172W-00-00 COVERCOVER
-
3790111-05003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
381WD-F1731-00-P1 COVER, SIDE 3 (FOR DPBMC)COVER, SIDE 3 (FOR DPBMC)
-
381WD-F1731-00-P0 COVER, SIDE 3 (FOR SMX)COVER, SIDE 3 (FOR SMX)
-
381WD-F1731-00-P2 COVER, SIDE 3 (FOR VRC1)COVER, SIDE 3 (FOR VRC1)
-
3990160-05810-00 SCREW, ROUND TAPPINGSCREW, ROUND TAPPING
-
401WD-F171E-00-00 COVER, SIDE 5COVER, SIDE 5
-
4190111-05003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
421WD-F171X-00-00 COVER, SIDE 6COVER, SIDE 6
-
4390111-05003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
441PA-F836B-00-00 TUNING FORK MARKTUNING FORK MARK
