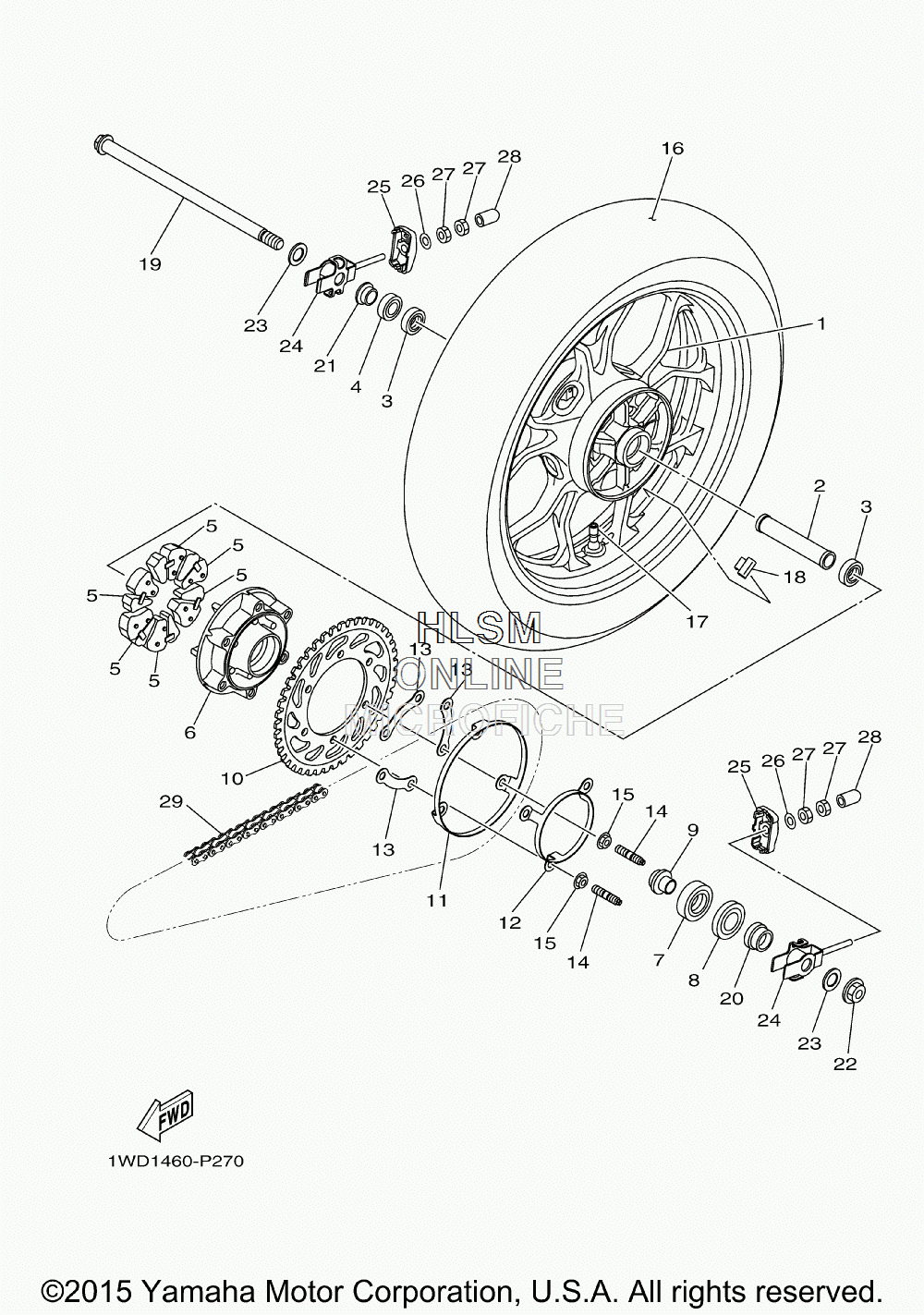

WHEEL - REAR для Yamaha YZF-R3 - 2015 года выпуска
-
№АртикулНазвание
-
11WD-F5338-00-0X CAST WHEEL, REAR (LGB/DRSC)CAST WHEEL, REAR (LGB/DRSC)
-
11WD-F5338-00-P0 CAST WHEEL, REAR (DPBMC)CAST WHEEL, REAR (DPBMC)
-
290387-17810-00 COLLARCOLLAR
-
393306-20314-00 BEARINGBEARING
-
493106-23002-00 OIL SEALOIL SEAL
-
51WD-F5364-00-00 DAMPERDAMPER
-
61WD-F5366-00-98 CLUTCH, HUB (LGB FOR SMX, VRC1)CLUTCH, HUB (LGB FOR SMX, VRC1)
-
61WD-F5366-00-P0 CLUTCH, HUB (FOR DPBMC)CLUTCH, HUB (FOR DPBMC)
-
793306-30450-00 BEARINGBEARING
-
893106-38046-00 OIL SEALOIL SEAL
-
91WD-F5377-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
101WD-F5443-00-00 SPROCKET, DRIVEN (43T)SPROCKET, DRIVEN (43T)
-
111WD-F537W-00-00 BRACKET 1BRACKET 1
-
121WD-F537X-00-00 BRKT 2BRKT 2
-
131WD-F539F-00-00 PLATE 1PLATE 1
-
1490116-10065-00 BOLT, STUDBOLT, STUD
-
1595602-10200-00 NUT, U FLANGENUT, U FLANGE
-
1694114-17803-00 TIRE (140/70-17 M/C 66H) (MICHELIN)TIRE (140/70-17 M/C 66H) (MICHELIN)
-
1793900-00828-00 VALVE, RIMVALVE, RIM
-
185MT-25398-20-00 BALANCER, WHEEL (30G)BALANCER, WHEEL (30G)
-
185MT-25398-00-00 BALANCER, WHEEL (10G)BALANCER, WHEEL (10G)
-
185MT-25398-10-00 BALANCER, WHEEL (20G)BALANCER, WHEEL (20G)
-
191WD-25381-00-00 AXLE, WHEELAXLE, WHEEL
-
201WD-F5386-00-00 COLLAR, SPROCKET AXLECOLLAR, SPROCKET AXLE
-
211WD-F5383-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
2295602-16200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2390201-17809-00 WASHER, PLATEWASHER, PLATE
-
241WD-F5388-00-00 PULLER, CHAIN 1PULLER, CHAIN 1
-
251WD-F2174-00-00 END 1END 1
-
2692902-08600-00 WASHER, PLATEWASHER, PLATE
-
2795302-08600-00 NUTNUT
-
2840D-E443G-00-00 PIPE, DRAIN 2PIPE, DRAIN 2
-
2994568-H3112-00 CHAIN (DID520VF 112LE)CHAIN (DID520VF 112LE)
