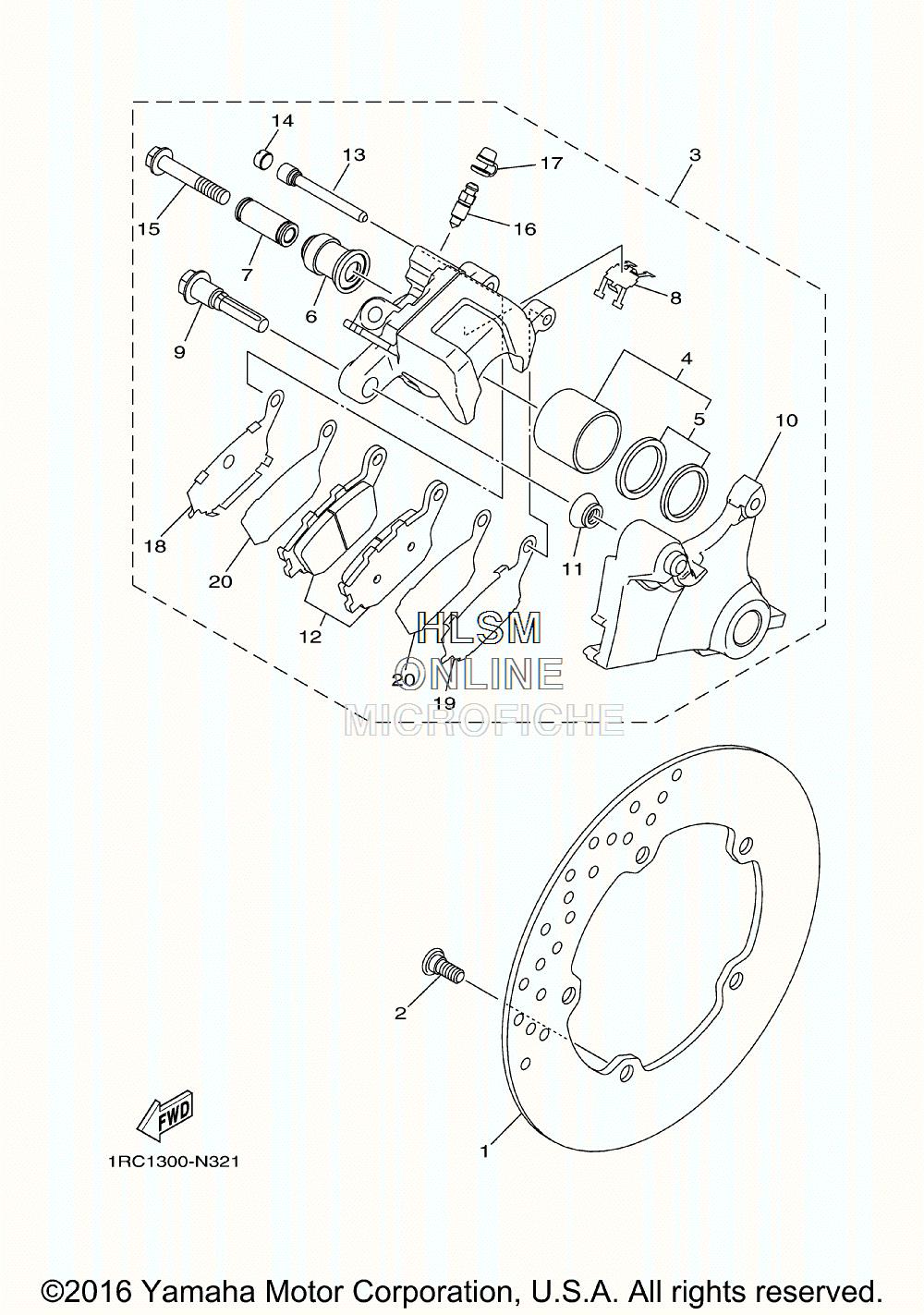

BRAKE - REAR CALIPER для Yamaha FZ09 [FZ09GGY] - 2016 года выпуска
-
№АртикулНазвание
-
11RC-2582W-00-00 DISC, REAR BRAKE 2DISC, REAR BRAKE 2
-
290109-08045-00 BOLTBOLT
-
31RC-2580W-00-00 CALIPER ASSY, REAR 2CALIPER ASSY, REAR 2
-
45SL-25802-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
55SL-25803-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
65SL-25917-00-00 ...BOOT, CALIPER...BOOT, CALIPER
-
75SL-25838-00-00 ...SLEEVE, CALIPER...SLEEVE, CALIPER
-
85SL-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
95SL-25914-00-00 ...PIN, SLIDE...PIN, SLIDE
-
101RC-25921-50-00 ...BRACKET, SUPPORT...BRACKET, SUPPORT
-
113JD-25917-00-00 ...BOOT, CALIPER...BOOT, CALIPER
-
125VX-25806-00-00 ...BRAKE PAD KIT 2...BRAKE PAD KIT 2
-
138CR-25924-00-00 ...PIN, PAD...PIN, PAD
-
145DH-25916-00-00 ...PLUG...PLUG
-
151RC-25926-00-00 ...BOLT...BOLT
-
161UY-25824-51-00 ...SCREW, BLEED...SCREW, BLEED
-
171UY-25825-51-00 ...CAP...CAP
-
185SL-25827-00-00 ...SHIM, CALIPER...SHIM, CALIPER
-
195SL-25827-10-00 ...SHIM, CALIPER...SHIM, CALIPER
-
205SL-25828-01-00 ...SHIM, CALIPER...SHIM, CALIPER
