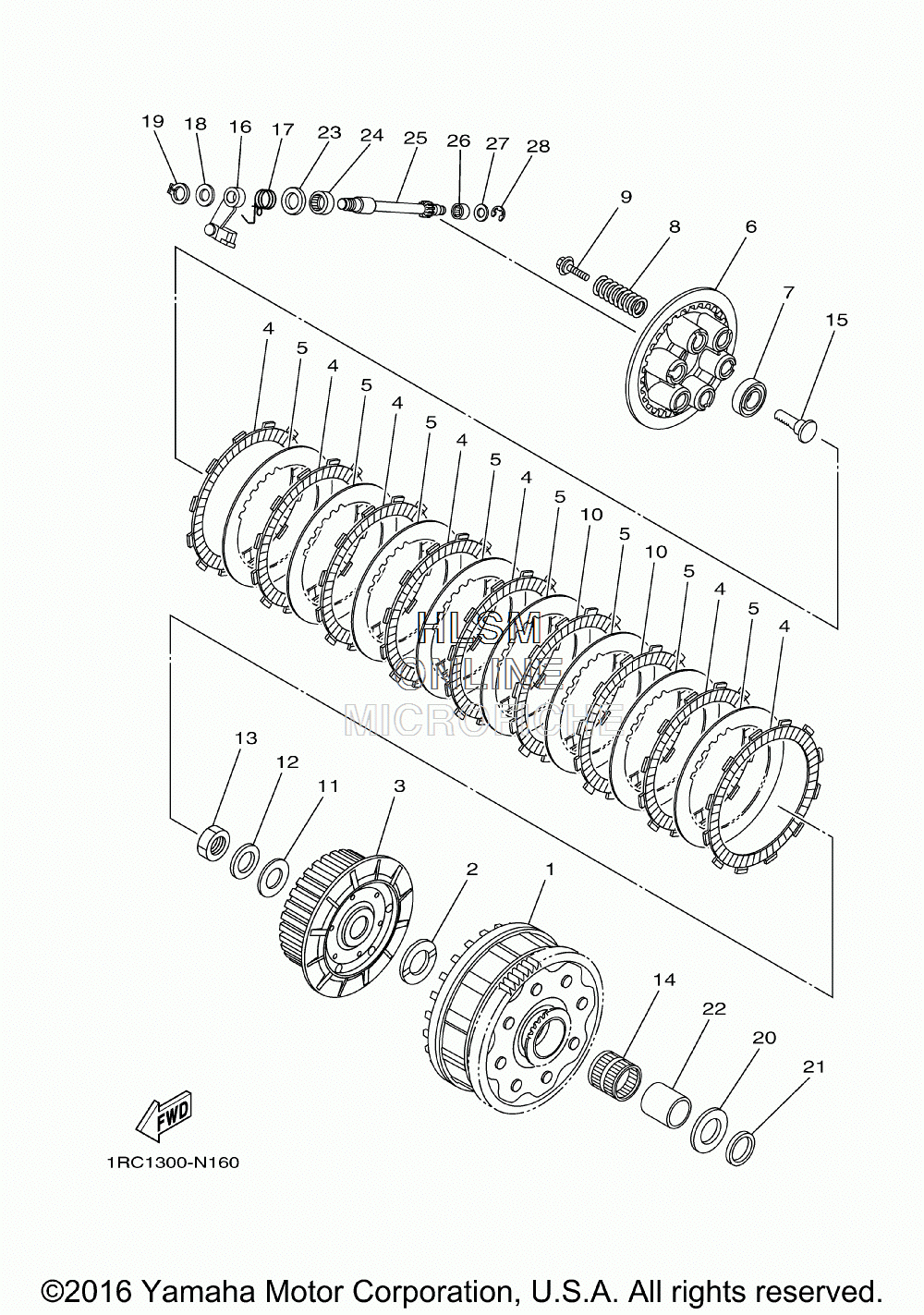

CLUTCH для Yamaha FZ09 [FZ09GGY] - 2016 года выпуска
-
№АртикулНазвание
-
11RC-16150-00-00 PRIMARY DRIVEN GEAR COMP.PRIMARY DRIVEN GEAR COMP.
-
25VY-16154-00-00 PLATE, THRUST 1PLATE, THRUST 1
-
31RC-16371-00-00 BOSS, CLUTCHBOSS, CLUTCH
-
45TA-16321-00-00 PLATE, FRICTIONPLATE, FRICTION
-
55VY-16325-00-00 PLATE, CLUTCH 2PLATE, CLUTCH 2
-
65VY-16351-10-00 PLATE, PRESSURE 1PLATE, PRESSURE 1
-
793306-00304-00 BEARINGBEARING
-
890501-230A0-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
990119-06257-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
101RC-16330-00-00 PLATE, FRICTION 2PLATE, FRICTION 2
-
1190201-20030-00 WASHER, PLATEWASHER, PLATE
-
1290208-20001-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
1390179-20011-00 NUTNUT
-
1493310-33277-00 BEARINGBEARING
-
154XV-16356-01-00 ROD, PUSH 1ROD, PUSH 1
-
161RC-16340-00-00 PUSH LEVER ASSYPUSH LEVER ASSY
-
1790508-18051-00 SPRING, TORSIONSPRING, TORSION
-
1890201-10029-00 WASHER, PLATEWASHER, PLATE
-
1999009-10400-00 CIRCLIPCIRCLIP
-
205VY-16164-00-00 PLATE, THRUST 2PLATE, THRUST 2
-
212C0-16164-00-00 PLATE, THRUST 2PLATE, THRUST 2
-
221RC-16181-00-00 SPACER 1SPACER 1
-
2393102-15212-00 OIL SEALOIL SEAL
-
2493315-21570-00 BEARINGBEARING
-
255VY-16382-10-00 AXLE, PUSH LEVERAXLE, PUSH LEVER
-
2693317-11096-00 BEARINGBEARING
-
2792907-08600-00 WASHER, PLATEWASHER, PLATE
-
2899001-07600-00 CIRCLIPCIRCLIP
