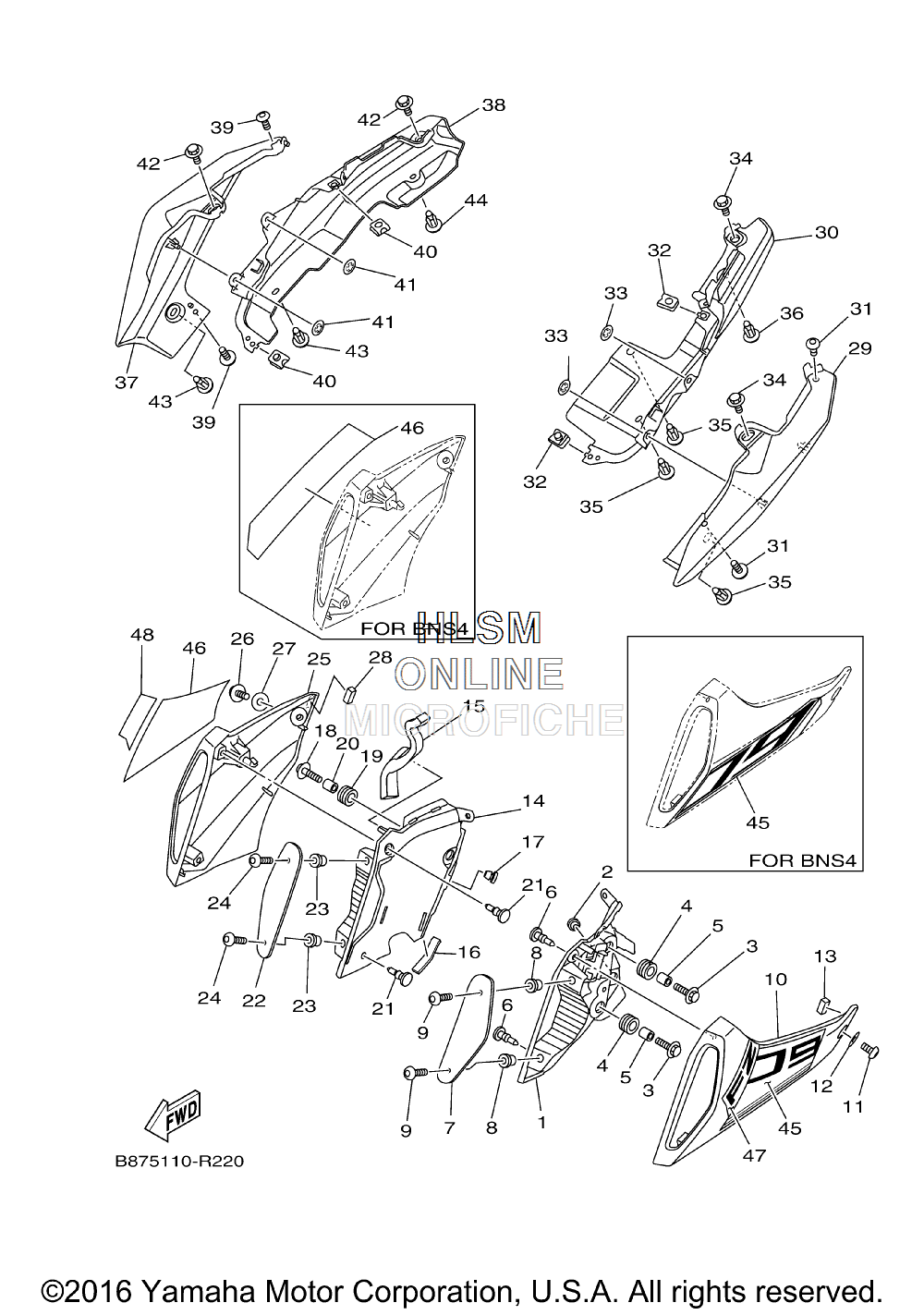

SIDE COVER для Yamaha FZ09 [FZ09GGY] - 2016 года выпуска
-
№АртикулНазвание
-
11RC-2172E-00-00 STAY, SIDE COVER 1STAY, SIDE COVER 1
-
290338-06018-00 PLUGPLUG
-
390119-06267-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
490480-14003-00 GROMMETGROMMET
-
590387-06057-00 COLLARCOLLAR
-
690269-06001-00 RIVETRIVET
-
71RC-2837N-00-00 GRILL, AIR INTAKE 1GRILL, AIR INTAKE 1
-
890179-05523-00 NUTNUT
-
990111-05039-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
101RC-2137W-00-P0 SCOOP, AIR 1 (MBL2)SCOOP, AIR 1 (MBL2)
-
1190111-05002-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1290202-05180-00 WASHER, PLATEWASHER, PLATE
-
131RC-21747-00-00 DAMPERDAMPER
-
141RC-2174E-00-00 STAY, SIDE COVER 2STAY, SIDE COVER 2
-
1590520-10022-00 DAMPER, PLATEDAMPER, PLATE
-
1690520-10003-00 DAMPER, PLATEDAMPER, PLATE
-
1790338-06018-00 PLUGPLUG
-
1890119-06267-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1990480-14003-00 GROMMETGROMMET
-
2090387-06057-00 COLLARCOLLAR
-
2190269-06001-00 RIVETRIVET
-
221RC-2837N-00-00 GRILL, AIR INTAKE 1GRILL, AIR INTAKE 1
-
2390179-05523-00 NUTNUT
-
2490111-05039-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
251RC-2137X-00-P0 SCOOP, AIR 2 (MBL2)SCOOP, AIR 2 (MBL2)
-
2690111-05002-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2790202-05180-00 WASHER, PLATEWASHER, PLATE
-
281RC-21747-00-00 DAMPERDAMPER
-
291RC-21711-00-P0 COVER, SIDE 1 (OPT) (MBL2 FOR BNS4)COVER, SIDE 1 (OPT) (MBL2 FOR BNS4)
-
301RC-21731-00-00 COVER, SIDE 3COVER, SIDE 3
-
3190111-05002-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3290183-05076-00 NUT, SPRINGNUT, SPRING
-
3390183-05M02-00 NUT, SPRINGNUT, SPRING
-
3490109-06174-00 BOLTBOLT
-
3590269-07007-00 RIVETRIVET
-
3690269-07014-00 RIVETRIVET
-
371RC-21721-00-P0 COVER, SIDE 2 (OPT) (MBL2 FOR BNS4)COVER, SIDE 2 (OPT) (MBL2 FOR BNS4)
-
381RC-21741-00-00 COVER, SIDE 4COVER, SIDE 4
-
3990111-05002-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4090183-05076-00 NUT, SPRINGNUT, SPRING
-
4190183-05M02-00 NUT, SPRINGNUT, SPRING
-
4290109-06174-00 BOLTBOLT
-
4390269-07007-00 RIVETRIVET
-
4490269-07014-00 RIVETRIVET
-
451RC-2173E-50-00 GRAPHIC 1 (OPT) (FOR BNS4)GRAPHIC 1 (OPT) (FOR BNS4)
-
461RC-2173F-50-00 GRAPHIC 2 (OPT) (FOR BNS4)GRAPHIC 2 (OPT) (FOR BNS4)
