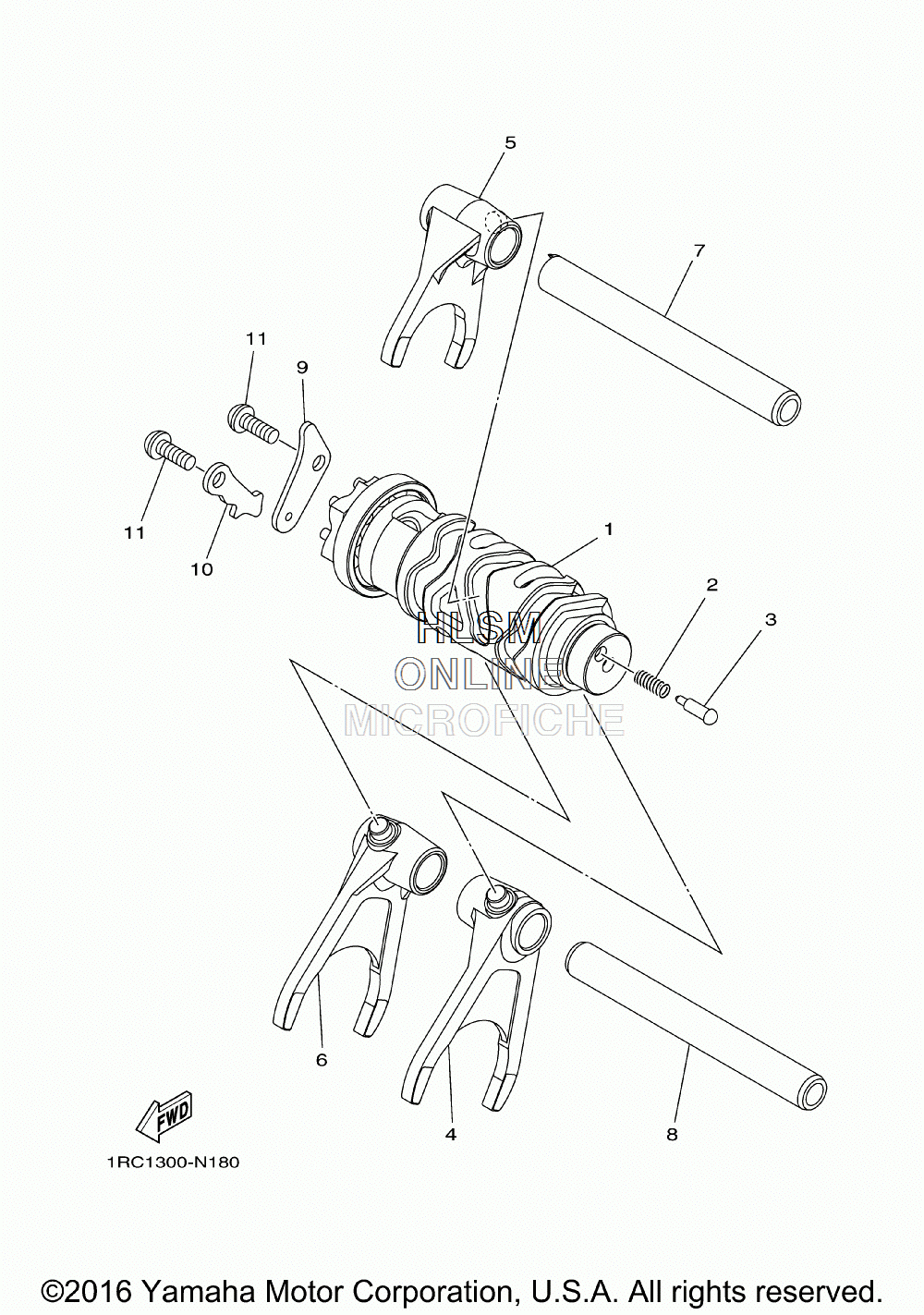

SHIFT CAM W/ FORK для Yamaha FZ09 [FZ09GGY] - 2016 года выпуска
-
№АртикулНазвание
-
11RC-18540-00-00 SHIFT CAM ASSYSHIFT CAM ASSY
-
290501-06022-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
33D7-18542-00-00 POINT, NEUTRALPOINT, NEUTRAL
-
41RC-18511-00-00 FORK, SHIFT 1FORK, SHIFT 1
-
51RC-18512-00-00 FORK, SHIFT 2FORK, SHIFT 2
-
61RC-18513-00-00 FORK, SHIFT 3FORK, SHIFT 3
-
71RC-18531-00-00 BAR, SHIFT FORK GUIDE 1BAR, SHIFT FORK GUIDE 1
-
820S-18535-00-00 BAR, SHIFT FORK GUIDE 2BAR, SHIFT FORK GUIDE 2
-
92C0-18536-00-00 STOPPER, SHIFT BARSTOPPER, SHIFT BAR
-
101RC-18562-00-00 PLATE, STOPPER 2PLATE, STOPPER 2
-
1190149-06158-00 SCREWSCREW
