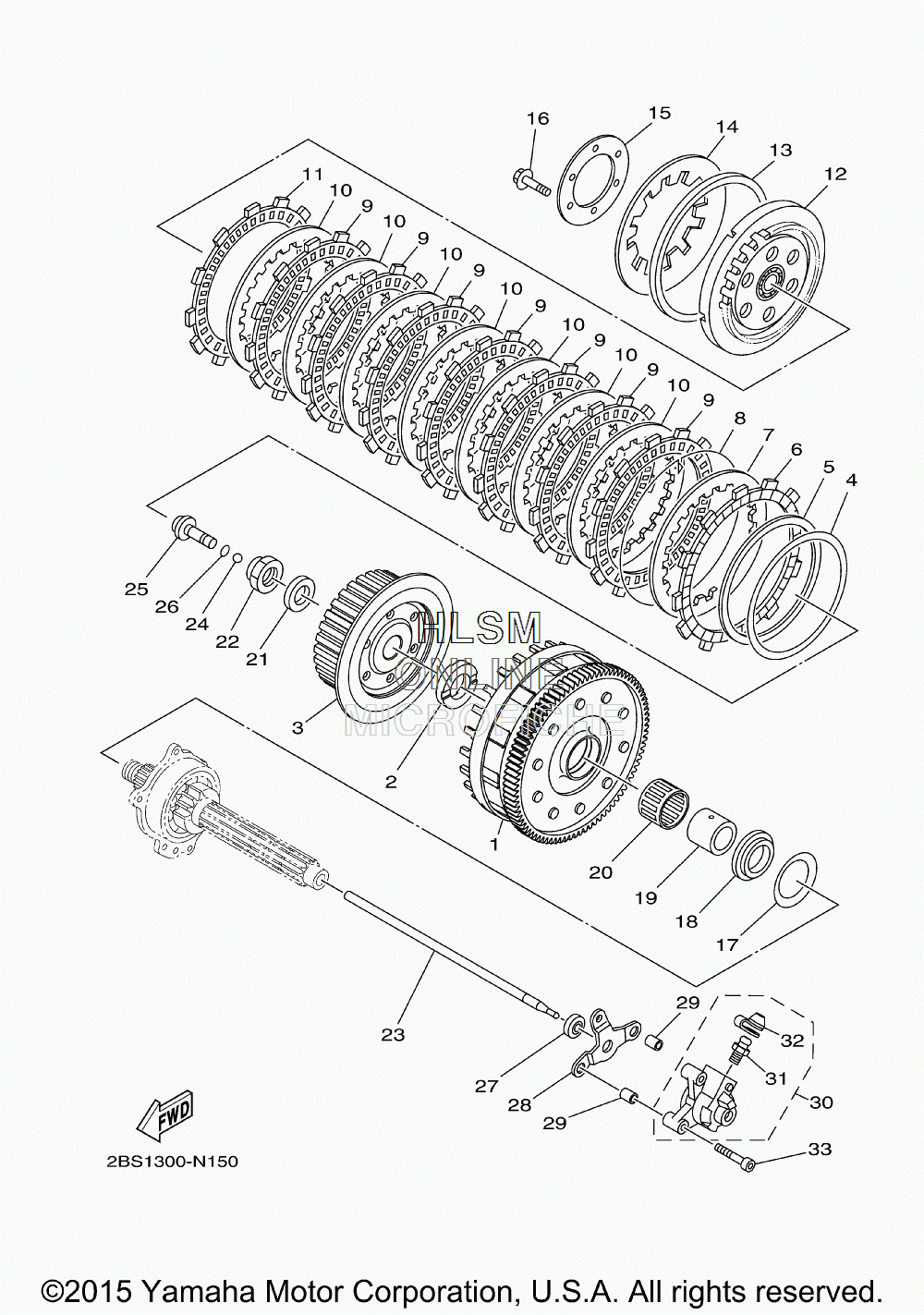

CLUTCH для Yamaha SUPER TENERE (YELLOW) [XTZ12GY] - 2016 года выпуска
-
№АртикулНазвание
-
12BS-16150-00-00 PRIMARY DRIVEN GEAR COMP.PRIMARY DRIVEN GEAR COMP.
-
25YU-16154-00-00 PLATE, THRUST 1PLATE, THRUST 1
-
323P-16371-00-00 BOSS, CLUTCHBOSS, CLUTCH
-
436Y-16384-00-00 PLATE, SEATPLATE, SEAT
-
536Y-16383-00-00 SPRING.,CUSHIONSPRING.,CUSHION
-
64XV-16331-00-00 PLATE, FRICTION 2PLATE, FRICTION 2
-
72H7-16325-00-00 PLATE, CLUTCH 2PLATE, CLUTCH 2
-
82H7-16385-00-00 RING SETRING SET
-
95JW-16321-10-00 PLATE, FRICTIONPLATE, FRICTION
-
102H7-16325-00-00 PLATE, CLUTCH 2PLATE, CLUTCH 2
-
115YU-16321-00-00 PLATE, FRICTIONPLATE, FRICTION
-
1223P-16350-00-00 PRESSURE PLATE ASSYPRESSURE PLATE ASSY
-
1336Y-16335-00-00 HOUSING, SPRINGHOUSING, SPRING
-
145JW-16334-00-00 SPRING, CLUTCH 2SPRING, CLUTCH 2
-
151TX-16352-00-00 PLATE, PRESSURE 2PLATE, PRESSURE 2
-
1690105-06191-00 BOLT, FLANGEBOLT, FLANGE
-
173P6-16587-00-00 SPRING, ABSORBERSPRING, ABSORBER
-
183P6-16183-00-00 SPACER 3SPACER 3
-
1923P-16181-00-00 SPACER 1SPACER 1
-
2093310-33560-00 BEARINGBEARING
-
2190208-20001-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
2290179-20007-00 NUTNUT
-
2323P-16357-00-00 ROD, PUSH 2ROD, PUSH 2
-
2493511-32017-00 BALLBALL
-
254KG-16356-00-00 ROD, PUSH 1ROD, PUSH 1
-
2693210-06632-00 O-RINGO-RING
-
2793109-08061-00 OIL SEAL SDO-TYPEOIL SEAL SDO-TYPE
-
2823P-15645-00-00 PLATEPLATE
-
2999590-08012-00 PIN, DOWELPIN, DOWEL
-
3023P-16381-00-00 PUSH LEVER COMP.PUSH LEVER COMP.
-
311UY-25824-51-00 ...SCREW, BLEED...SCREW, BLEED
-
321UY-25825-51-00 ...CAP...CAP
-
3390110-06140-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
