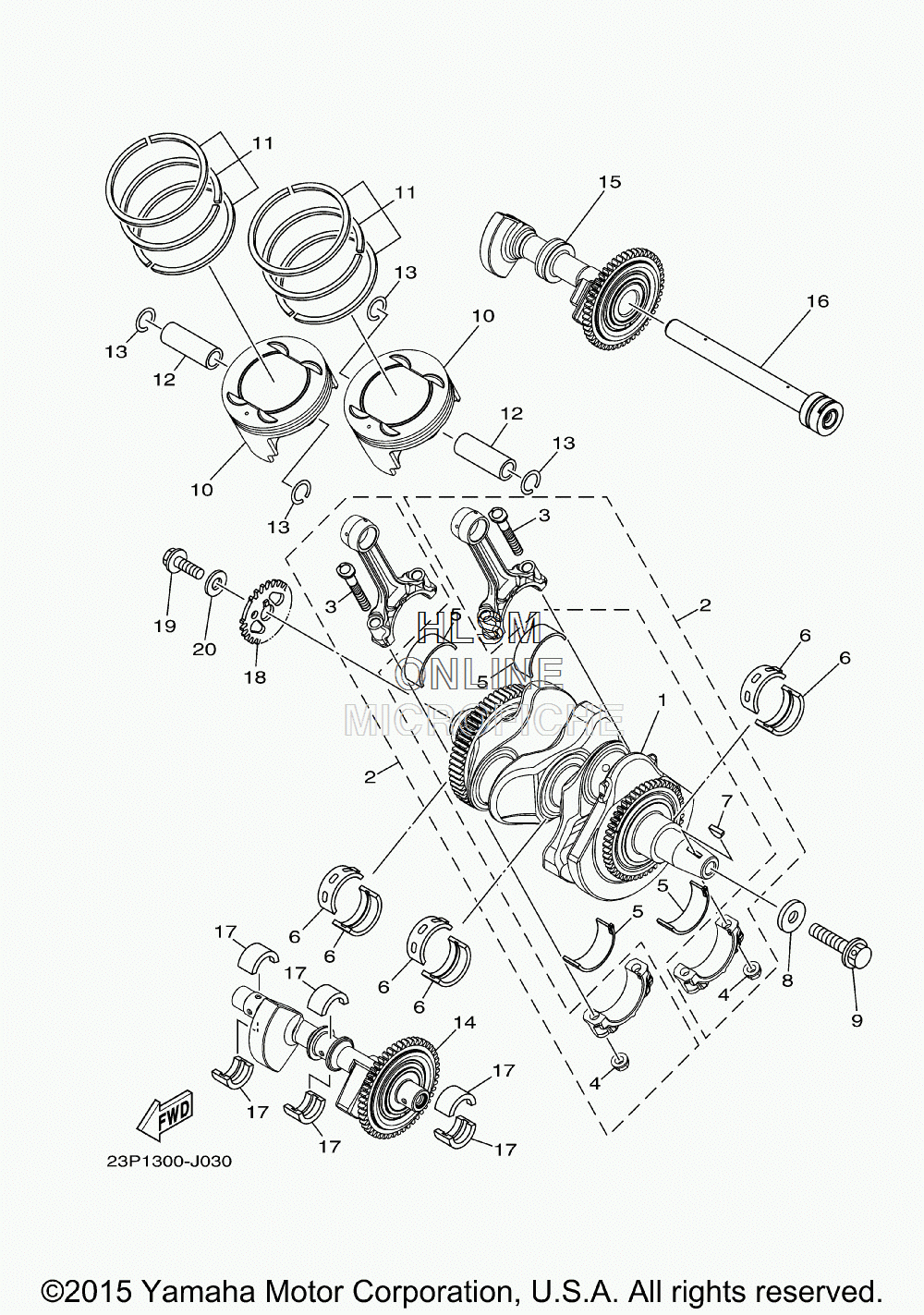

CRANKSHAFT - PISTON для Yamaha SUPER TENERE (YELLOW) [XTZ12GY] - 2016 года выпуска
-
№АртикулНазвание
-
123P-11400-00-00 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
223P-11650-00-00 CONNECTING ROD ASSYCONNECTING ROD ASSY
-
323P-11654-00-00 ...BOLT, CONNECTING ROD...BOLT, CONNECTING ROD
-
490179-09379-00 ...NUT SPEC'L SHAPE...NUT SPEC'L SHAPE
-
523P-11656-00-00 PLANE BEARING, CONNECTING ROD (BLUE)PLANE BEARING, CONNECTING ROD (BLUE)
-
523P-11656-10-00 PLANE BEARING, CONNECTING ROD (BLACK)PLANE BEARING, CONNECTING ROD (BLACK)
-
523P-11656-20-00 PLANE BEARING, CONNECTING ROD (BROWN)PLANE BEARING, CONNECTING ROD (BROWN)
-
523P-11656-30-00 PLANE BEARING, CONNECTING ROD (GREEN)PLANE BEARING, CONNECTING ROD (GREEN)
-
623P-11416-10-00 PLANE BEARING, CRANKSHAFT 1 (BLACK)PLANE BEARING, CRANKSHAFT 1 (BLACK)
-
623P-11416-20-00 PLANE BEARING, CRANKSHAFT 1 (BROWN)PLANE BEARING, CRANKSHAFT 1 (BROWN)
-
623P-11416-30-00 PLANE BEARING, CRANKSHAFT 1 (GREEN)PLANE BEARING, CRANKSHAFT 1 (GREEN)
-
623P-11416-40-00 PLANE BEARING, CRANKSHAFT 1 (YELLOW)PLANE BEARING, CRANKSHAFT 1 (YELLOW)
-
623P-11416-00-00 PLANE BEARING, CRANKSHAFT 1 (BLUE)PLANE BEARING, CRANKSHAFT 1 (BLUE)
-
790280-05029-00 KEY, WOODRUFFKEY, WOODRUFF
-
890201-121H0-00 WASHER, PLATEWASHER, PLATE
-
990105-12005-00 BOLT WASHER BASEDBOLT WASHER BASED
-
102BS-11631-00-00 PISTON (STD)PISTON (STD)
-
112BS-11603-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
124WM-11633-00-00 PIN, PISTONPIN, PISTON
-
1393450-23167-00 CIRCLIPCIRCLIP
-
1423P-11500-01-00 BALANCER ASSYBALANCER ASSY
-
1523P-11510-01-00 BALANCER ASSY, 2BALANCER ASSY, 2
-
1623P-11583-00-00 SHAFT, BALANCER 1SHAFT, BALANCER 1
-
172S3-11413-00-00 METAL, BALANCE WEIGHT (BLUE)METAL, BALANCE WEIGHT (BLUE)
-
172S3-11413-10-00 METAL, BALANCE WEIGHT (BLACK)METAL, BALANCE WEIGHT (BLACK)
-
172S3-11413-20-00 METAL, BALANCE WEIGHT (BROWN)METAL, BALANCE WEIGHT (BROWN)
-
172S3-11413-30-00 METAL, BALANCE WEIGHT (GREEN)METAL, BALANCE WEIGHT (GREEN)
-
1823P-81673-00-00 ROTORROTOR
-
1990105-10153-00 BOLT, FLANGEBOLT, FLANGE
-
2090201-10065-00 WASHER, PLATEWASHER, PLATE
