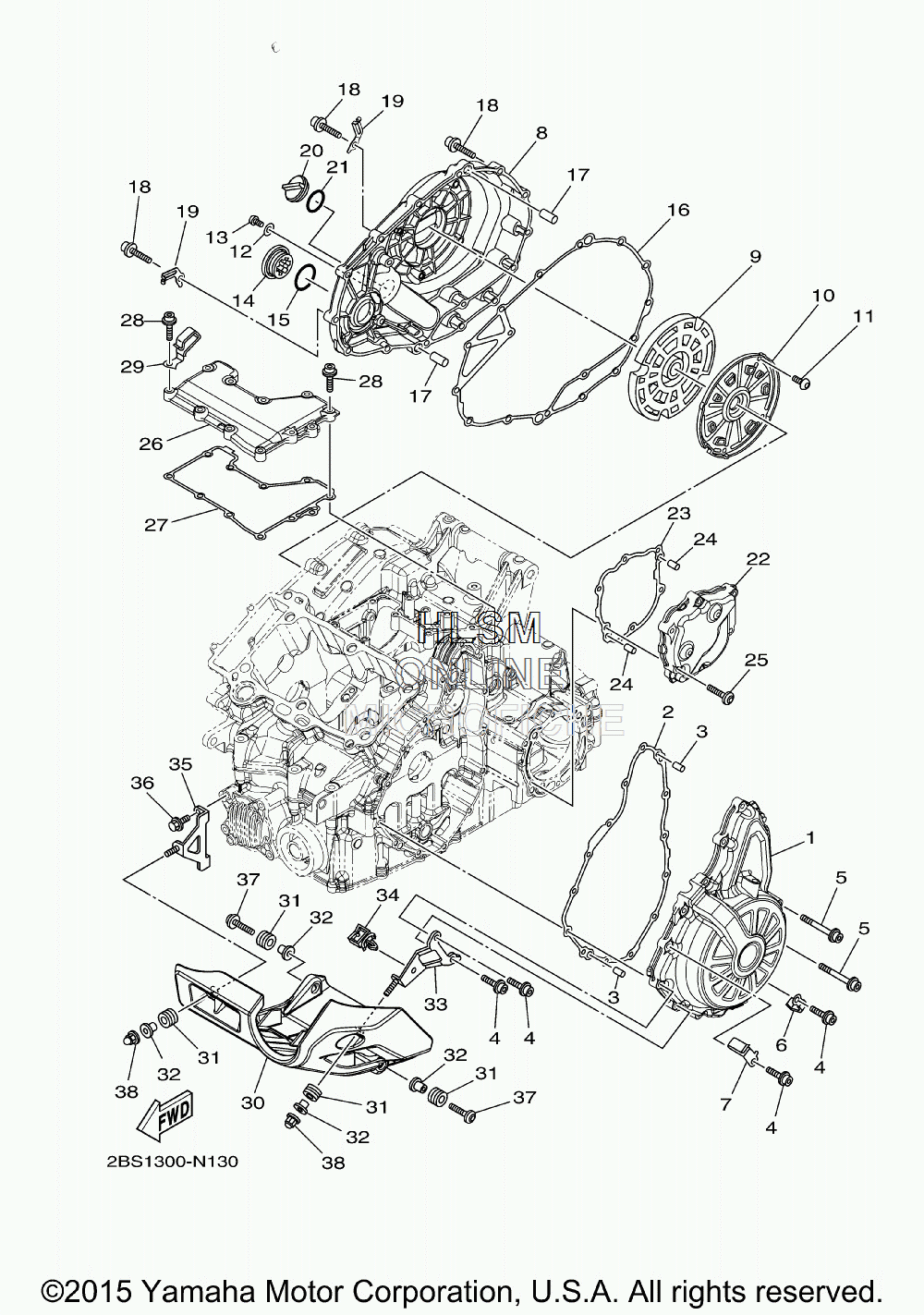

CRANKCASE COVER для Yamaha SUPER TENERE (YELLOW) [XTZ12GY] - 2016 года выпуска
-
№АртикулНазвание
-
123P-15411-00-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
223P-15451-00-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
399530-08012-00 PIN, DOWELPIN, DOWEL
-
490110-06387-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
590110-06375-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
690462-08089-00 CLAMPCLAMP
-
723P-15199-00-00 BRACKETBRACKET
-
823P-15421-01-00 COVER, CRANKCASE 2COVER, CRANKCASE 2
-
923P-15316-00-00 DAMPER 1DAMPER 1
-
1023P-15492-00-00 COVERCOVER
-
1190149-06158-00 SCREWSCREW
-
1290430-08143-00 GASKETGASKET
-
1390111-08075-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1490340-32004-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
1593210-32172-00 O-RINGO-RING
-
1623P-15461-00-00 GASKET, CRANKCASE COVER 2GASKET, CRANKCASE COVER 2
-
1793610-20189-00 PIN, DOWELPIN, DOWEL
-
1890110-06388-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1990465-08062-00 CLAMPCLAMP
-
203F9-15362-10-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
2193210-27370-00 O-RINGO-RING
-
2223P-15431-10-00 COVER, CRANKCASE 3COVER, CRANKCASE 3
-
2323P-15462-00-00 GASKET, CRANKCASE COVER 3GASKET, CRANKCASE COVER 3
-
2499530-08012-00 PIN, DOWELPIN, DOWEL
-
2590149-06185-00 SCREWSCREW
-
2623P-15415-00-00 COVER, 1COVER, 1
-
2723P-15455-00-00 GASKET 1GASKET 1
-
2890110-06349-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2990462-08085-00 CLAMPCLAMP
-
3023P-15491-00-00 PROTECTORPROTECTOR
-
3190480-12596-00 GROMMETGROMMET
-
3290387-06265-00 COLLARCOLLAR
-
3323P-15771-00-00 STAY 1STAY 1
-
3490464-23199-00 CLAMPCLAMP
-
3523P-15772-00-00 STAY 2STAY 2
-
3690105-06066-00 BOLT, FLANGEBOLT, FLANGE
-
3790149-06328-00 SCREWSCREW
-
3890176-06047-00 NUT, CAPNUT, CAP
