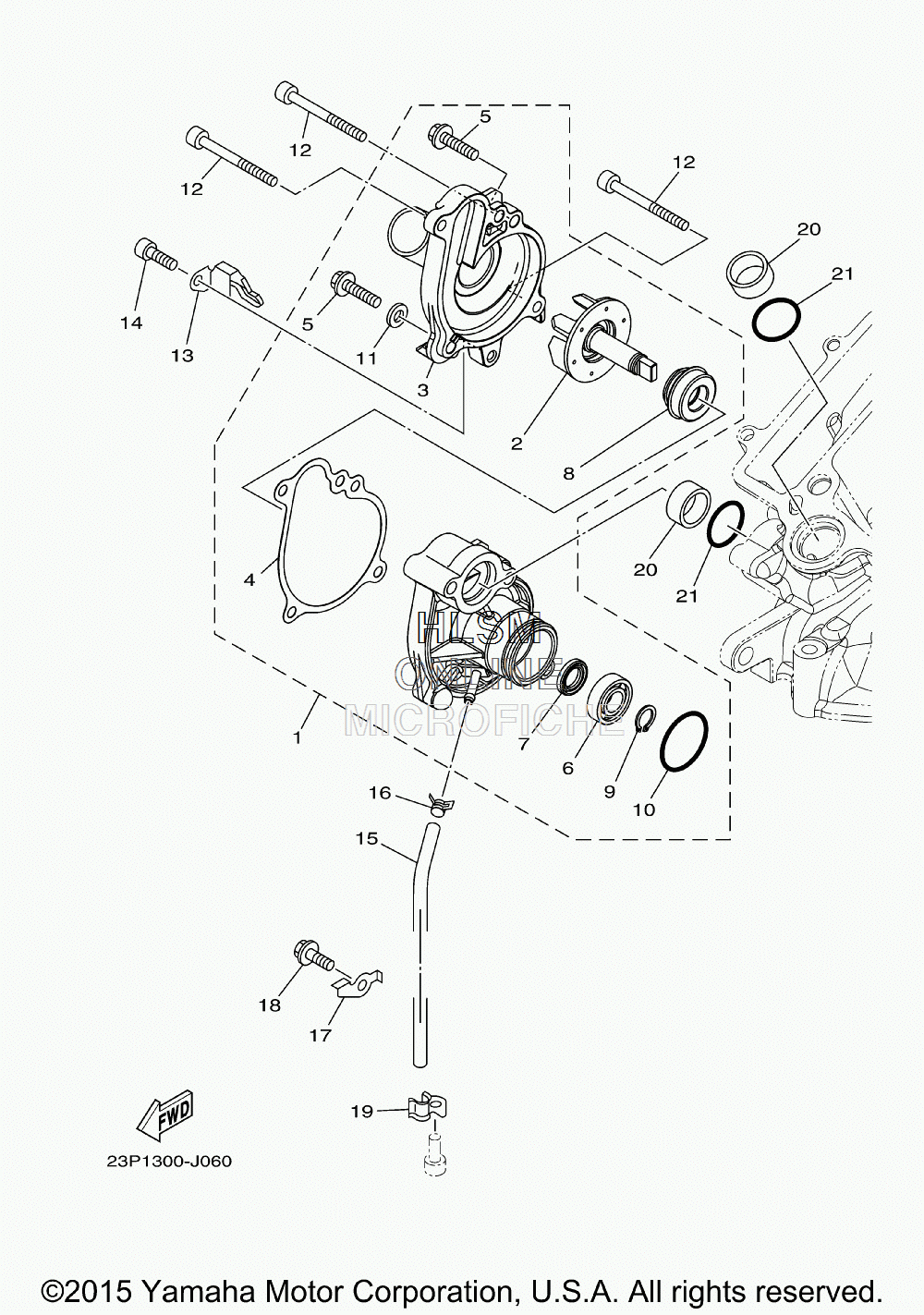

WATER PUMP для Yamaha SUPER TENERE (YELLOW) [XTZ12GY] - 2016 года выпуска
-
№АртикулНазвание
-
123P-12420-01-00 WATER PUMP ASSYWATER PUMP ASSY
-
223P-12450-00-00 ...IMPELLER SHAFT ASSY...IMPELLER SHAFT ASSY
-
323P-12422-01-00 ...COVER, HOUSING...COVER, HOUSING
-
423P-12428-00-00 ...GASKET, HOUSING COVER 2...GASKET, HOUSING COVER 2
-
595024-06025-00 ...BOLT, FLANGE (SMALL HEAD)...BOLT, FLANGE (SMALL HEAD)
-
693306-00106-00 ...BEARING...BEARING
-
793101-12173-00 ...OIL SEAL S-TYPE...OIL SEAL S-TYPE
-
85VK-12438-00-00 ...SEAL, MECHANICAL...SEAL, MECHANICAL
-
999009-12400-00 ...CIRCLIP...CIRCLIP
-
1093210-33133-00 ...O-RING...O-RING
-
1190430-06014-00 ...GASKET...GASKET
-
1290110-06351-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1390462-08095-00 CLAMPCLAMP
-
1491314-06012-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1590445-07030-00 HOSEHOSE
-
1690467-070A0-00 CLIPCLIP
-
1790462-08084-00 CLAMPCLAMP
-
1895824-06016-00 BOLT, FLANGEBOLT, FLANGE
-
1990462-10059-00 CLAMPCLAMP
-
2023P-12564-00-00 PIPE, WATERPIPE, WATER
-
2193210-24001-00 O-RINGO-RING
