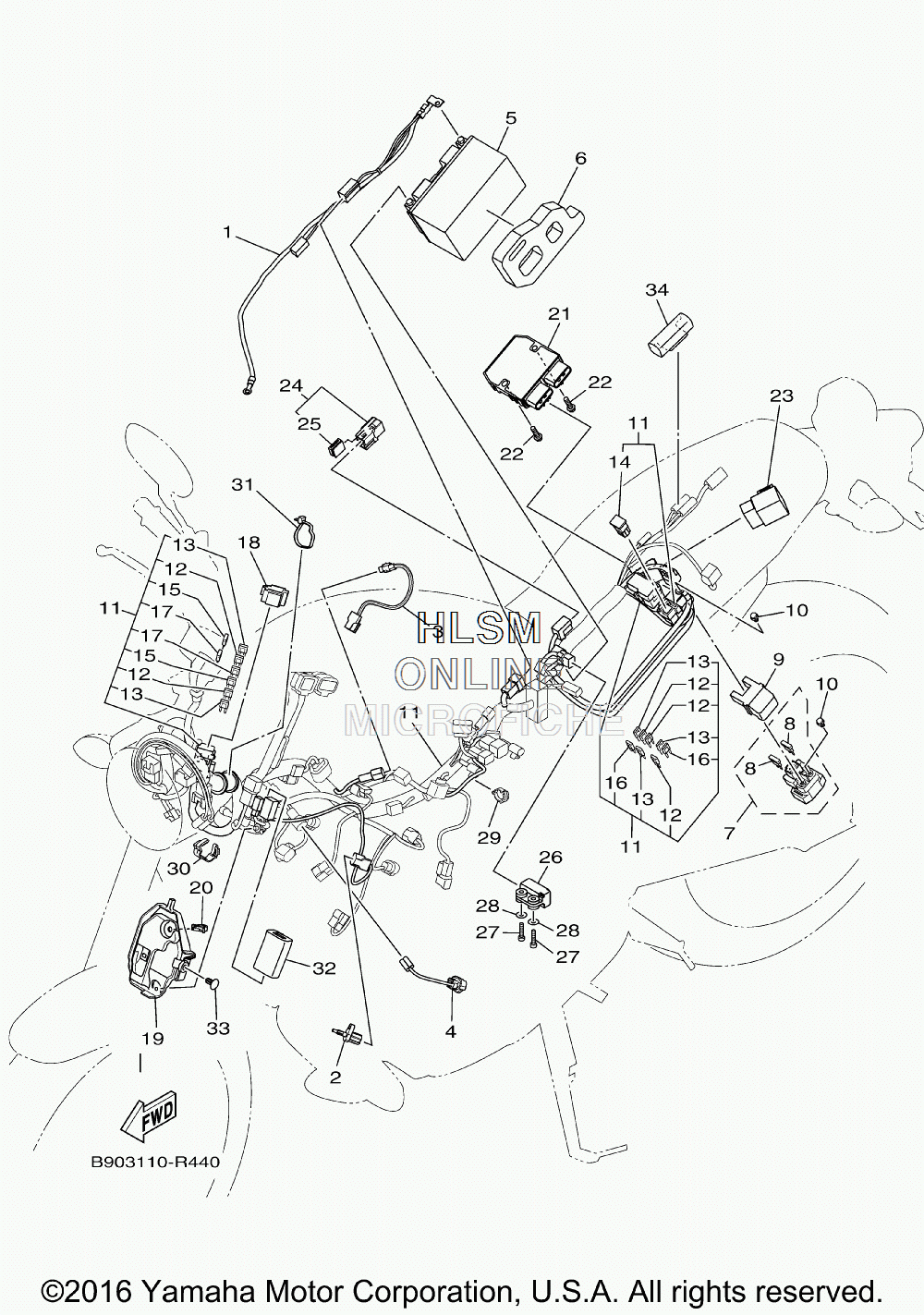

ELECTRICAL для Yamaha XSR900GY 60TH ANNIVERSARY [XSR900GY] - 2016 года выпуска
-
№АртикулНазвание
-
1B90-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
25YU-85886-00-00 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
31RC-82309-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
41RC-82509-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
55VY-82100-00-00 BATTERY ASSY (YUASA YTZ10S)BATTERY ASSY (YUASA YTZ10S)
-
6B90-8246K-00-00 SPACERSPACER
-
75S7-81940-00-00 STARTER RELAY ASSY (RC19-089A)STARTER RELAY ASSY (RC19-089A)
-
842X-82151-00-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
95SL-82119-30-00 COVER, LEAD WIRECOVER, LEAD WIRE
-
1095022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
11B90-82590-10-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
125JJ-82151-00-00 ...FUSE (7.5A-BL)...FUSE (7.5A-BL)
-
135JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
145JW-82151-10-00 ...FUSE (50A)...FUSE (50A)
-
155JJ-82151-80-00 ...FUSE (2A-BL)...FUSE (2A-BL)
-
165JJ-82151-60-00 ...FUSE (30A-BL)...FUSE (30A-BL)
-
175JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
181RC-82544-00-00 CLAMPCLAMP
-
191RC-82599-00-00 COVER, CONNECTERCOVER, CONNECTER
-
2090464-15157-00 CLAMPCLAMP
-
211D7-81960-01-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
2290105-06148-00 BOLT, FLANGEBOLT, FLANGE
-
235VK-81950-40-00 RELAY ASSY (5VK-40)RELAY ASSY (5VK-40)
-
241ST-81950-00-00 RELAY ASSY (1ST-00)RELAY ASSY (1ST-00)
-
255JJ-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
265PS-82576-01-00 SENSOR, LEAN ANGLESENSOR, LEAN ANGLE
-
2791312-04020-00 BOLTBOLT
-
2890201-04030-00 WASHER, PLATEWASHER, PLATE
-
2990464-14010-00 CLAMPCLAMP
-
3090464-14010-00 CLAMPCLAMP
-
313MA-82591-00-00 BANDBAND
-
321RC-82589-00-00 PROTECTER, WIRE HARNESSPROTECTER, WIRE HARNESS
-
3390269-07015-00 RIVETRIVET
-
342D1-82589-00-00 PROTECTER, WIRE HARNESSPROTECTER, WIRE HARNESS
