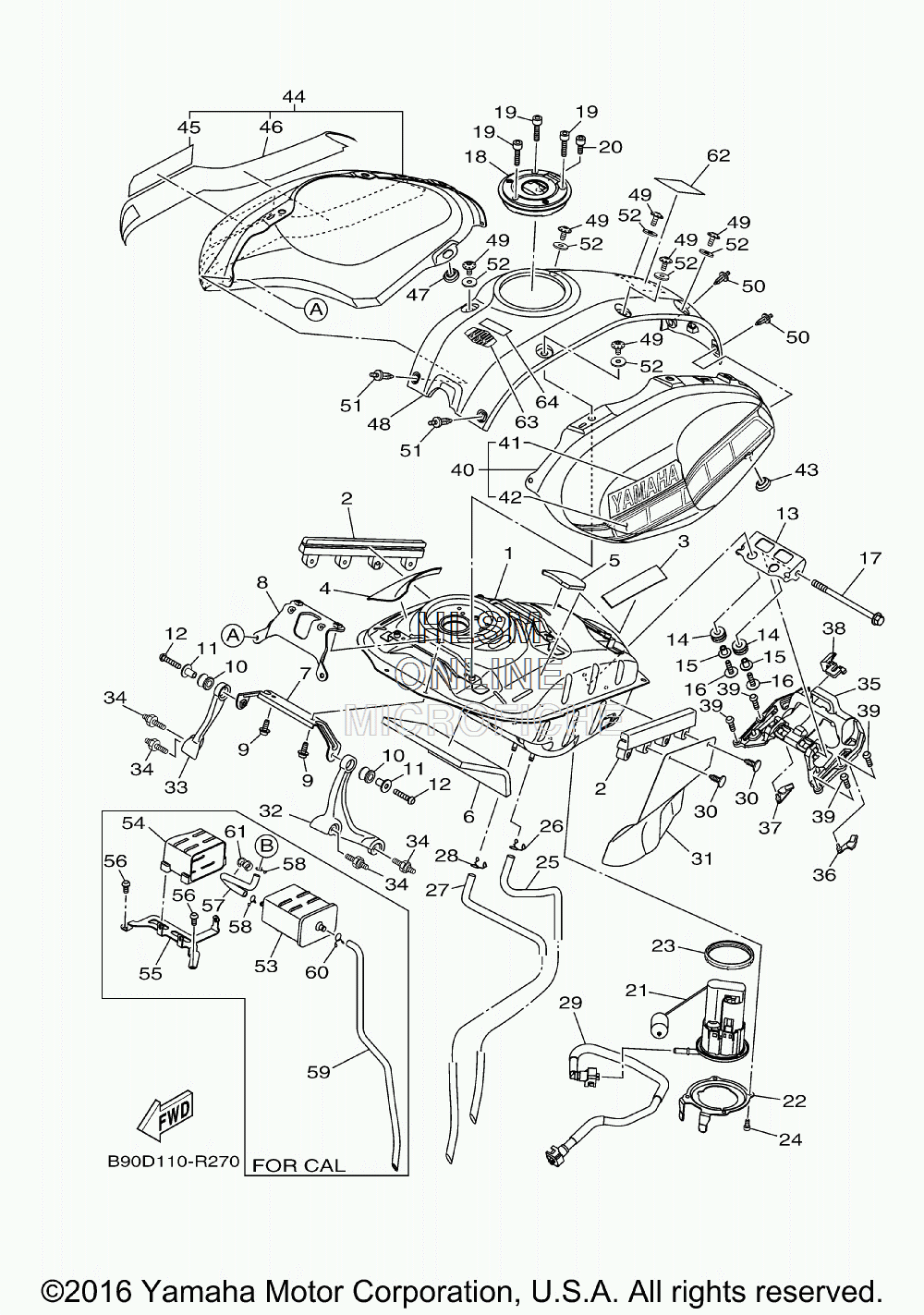

FUEL TANK для Yamaha XSR900GY 60TH ANNIVERSARY [XSR900GY] - 2016 года выпуска
-
№АртикулНазвание
-
1B90-24110-00-00 FUEL TANK COMP.FUEL TANK COMP.
-
2B90-24121-00-00 SEAT, KNEE GRIP 1SEAT, KNEE GRIP 1
-
390520-02013-00 DAMPER, PLATEDAMPER, PLATE
-
4B90-2414K-00-00 DAMPER, PLATE 3DAMPER, PLATE 3
-
5B90-2414N-00-00 DAMPER, PLATE 4DAMPER, PLATE 4
-
690520-10029-00 DAMPER, PLATEDAMPER, PLATE
-
7B90-2412Y-00-00 BRACKET, TANK FITTINGBRACKET, TANK FITTING
-
8B90-24145-00-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
990110-06245-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1090480-18008-00 GROMMETGROMMET
-
1190387-06266-00 COLLARCOLLAR
-
1292012-06030-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
13B90-24191-00-00 BRACKET, FUEL TANK 1BRACKET, FUEL TANK 1
-
1490480-16003-00 GROMMETGROMMET
-
1590387-06287-00 COLLARCOLLAR
-
1690111-06084-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1795827-08120-00 BOLT, FLANGEBOLT, FLANGE
-
181WS-24602-00-00 CAP ASSYCAP ASSY
-
1990110-05112-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2091312-05010-00 BOLTBOLT
-
211RC-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
22B90-24491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
231RC-24486-00-00 O-RINGO-RING
-
2491312-05010-00 BOLTBOLT
-
251RC-24315-00-00 PIPE 5PIPE 5
-
2690467-09006-00 CLIPCLIP
-
271RC-24316-00-00 PIPE 6 (EXCEPT CALIF)PIPE 6 (EXCEPT CALIF)
-
2890467-09006-00 CLIP (EXCEPT CALIF)CLIP (EXCEPT CALIF)
-
29B90-13971-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
3090269-05055-00 RIVETRIVET
-
31B90-24217-00-00 COVERCOVER
-
32B90-2411F-00-00 PLATE, FITTINGPLATE, FITTING
-
33B90-2411L-00-00 HOOK TANK FITTINGHOOK TANK FITTING
-
3490109-06309-00 BOLTBOLT
-
35B90-2413Y-00-00 BRACKET, TANK FITTINGBRACKET, TANK FITTING
-
36B90-24665-00-00 DAMPERDAMPER
-
37B90-2466M-00-00 DAMPERDAMPER
-
38B90-24742-00-00 GROMMETGROMMET
-
3992017-06020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
40B90-Y24HA-10-0X COVER, TANK SIDE 1 ASSY (LRYS1/YB)COVER, TANK SIDE 1 ASSY (LRYS1/YB)
-
4199224-00140-00 ...EMBLEM, YAMAHA...EMBLEM, YAMAHA
-
42B90-2424A-00-00 ...GRAPHIC 7...GRAPHIC 7
-
4390480-01558-00 GROMMETGROMMET
-
44B90-Y24JA-10-0X COVER, TANK SIDE 2 ASSY (LRYS1/YB)COVER, TANK SIDE 2 ASSY (LRYS1/YB)
-
4599224-00140-00 ...EMBLEM, YAMAHA...EMBLEM, YAMAHA
-
46B90-2424B-00-00 ...GRAPHIC 8...GRAPHIC 8
-
4790480-01558-00 GROMMETGROMMET
-
48B90-241B1-00-33 COVER, TANK (YB FOR LRYS1)COVER, TANK (YB FOR LRYS1)
-
4990109-06311-00 BOLTBOLT
-
5090269-06008-00 RIVETRIVET
-
5190269-07001-00 RIVETRIVET
-
5290201-06M94-00 WASHER, PLATEWASHER, PLATE
-
532CR-24170-00-00 CANISTER ASSY (CALIF ONLY)CANISTER ASSY (CALIF ONLY)
-
54B90-24183-00-00 DAMPER, LOCATING 3 (CALIF ONLY)DAMPER, LOCATING 3 (CALIF ONLY)
-
55B90-2419F-00-00 BRACKET, CANISTOR (CALIF ONLY)BRACKET, CANISTOR (CALIF ONLY)
-
5692012-06012-00 BOLT, BUTTON HEAD (CALIF ONLY)BOLT, BUTTON HEAD (CALIF ONLY)
-
57B90-24313-10-00 PIPE 3 (CALIF ONLY)PIPE 3 (CALIF ONLY)
-
5890467-09006-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
59B90-24321-00-00 PIPE 10 (CALIF ONLY)PIPE 10 (CALIF ONLY)
-
6090467-10041-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
6190464-09M31-00 CLAMP (CALIF ONLY)CLAMP (CALIF ONLY)
-
6229P-2816R-00-00 LABEL, WARNING GENERAL INFO.LABEL, WARNING GENERAL INFO.
-
63B90-2416B-01-00 EMBLEMEMBLEM
-
64B11-2416B-00-00 EMBLEMEMBLEM
