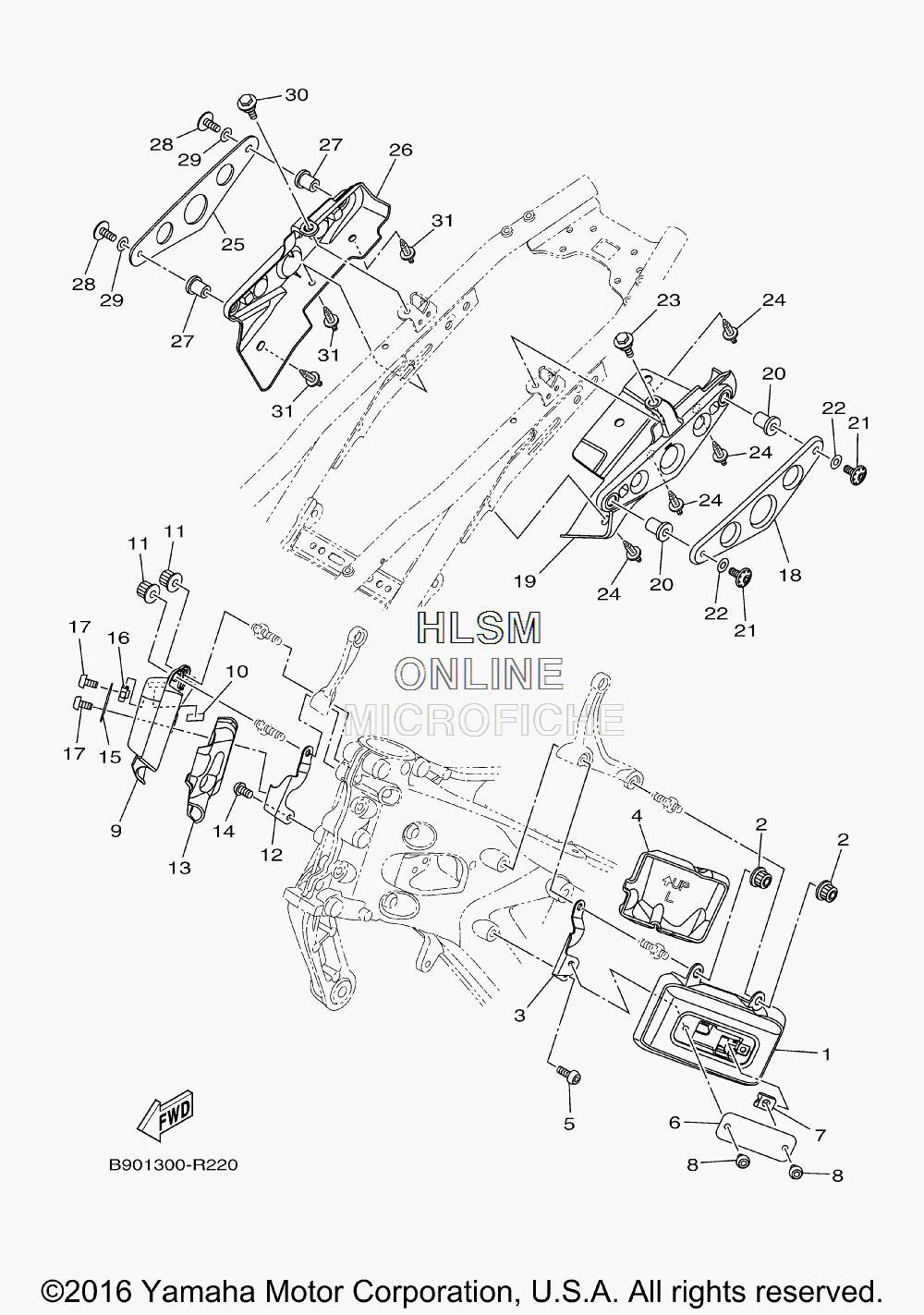

SIDE COVER для Yamaha XSR900GY 60TH ANNIVERSARY [XSR900GY] - 2016 года выпуска
-
№АртикулНазвание
-
1B90-2172E-00-P0 STAY, SIDE COVER 1 (MBL2 FOR LRYS1)STAY, SIDE COVER 1 (MBL2 FOR LRYS1)
-
290179-06074-00 NUTNUT
-
3B90-2172K-00-00 BRACKET 1BRACKET 1
-
4B90-2198F-00-00 COVER 1COVER 1
-
592017-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
6B90-2176E-00-00 PLATEPLATE
-
790183-05076-00 NUT, SPRINGNUT, SPRING
-
890111-05048-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
9B90-2174E-00-P0 STAY, SIDE COVER 2 (MBL2 FOR LRYS1)STAY, SIDE COVER 2 (MBL2 FOR LRYS1)
-
1014B-22873-00-00 SEAL 1SEAL 1
-
1190179-06074-00 NUTNUT
-
12B90-2172L-00-00 BRACKET 2BRACKET 2
-
13B90-2198G-00-00 COVER 2COVER 2
-
1492017-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
15B90-2176E-00-00 PLATEPLATE
-
1690183-05076-00 NUT, SPRINGNUT, SPRING
-
1790111-05048-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
18B90-21711-00-00 COVER, SIDE 1COVER, SIDE 1
-
19B90-21731-00-00 COVER, SIDE 3COVER, SIDE 3
-
2090179-06520-00 NUTNUT
-
2190109-06313-00 BOLTBOLT
-
2290202-06007-00 WASHER, PLATEWASHER, PLATE
-
2390109-06245-00 BOLTBOLT
-
2490269-07007-00 RIVETRIVET
-
25B90-21711-00-00 COVER, SIDE 1COVER, SIDE 1
-
26B90-21741-00-00 COVER, SIDE 4COVER, SIDE 4
-
2790179-06520-00 NUTNUT
-
2890109-06313-00 BOLTBOLT
-
2990202-06007-00 WASHER, PLATEWASHER, PLATE
-
3090109-06245-00 BOLTBOLT
-
3190269-07007-00 RIVETRIVET
